Generator ASSY: Components

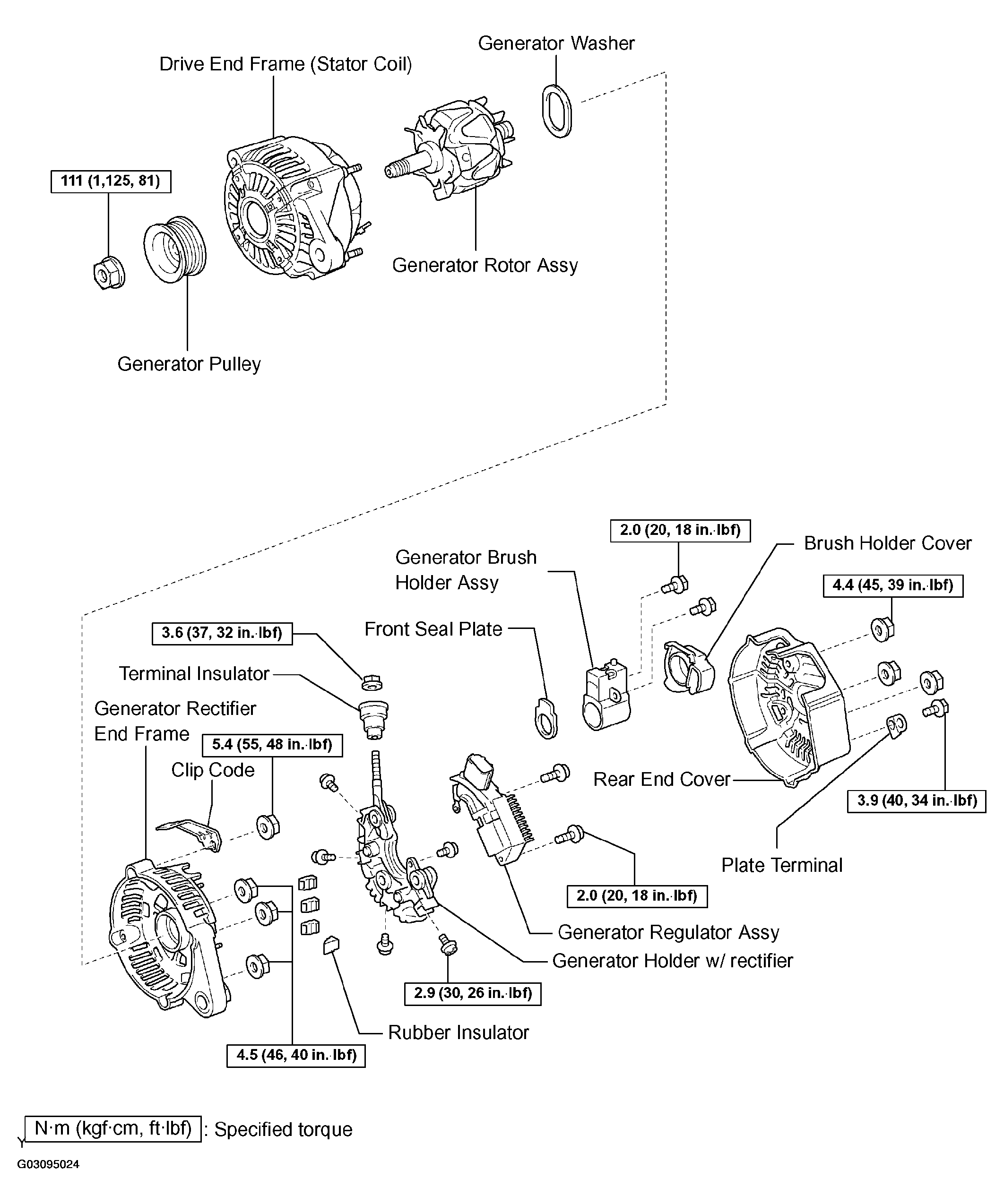

Fig 1: Identifying Generator Assy Components

G03095024

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
