Stop Lamp Switch Circuit: Wiring Diagram

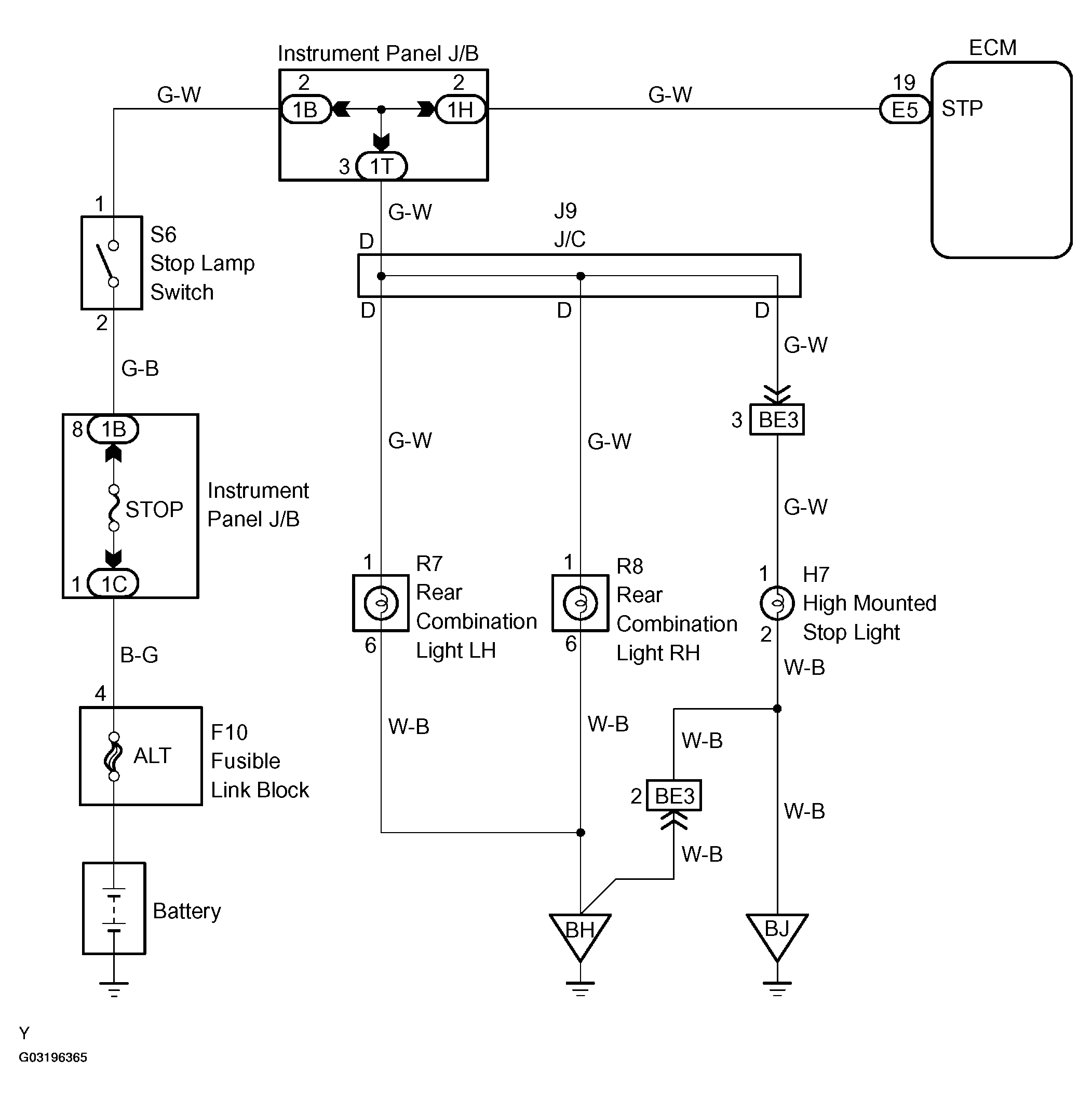

Fig 1: Stop Lamp Switch Wiring Diagram

G03196365

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
