Emission Control System: Location

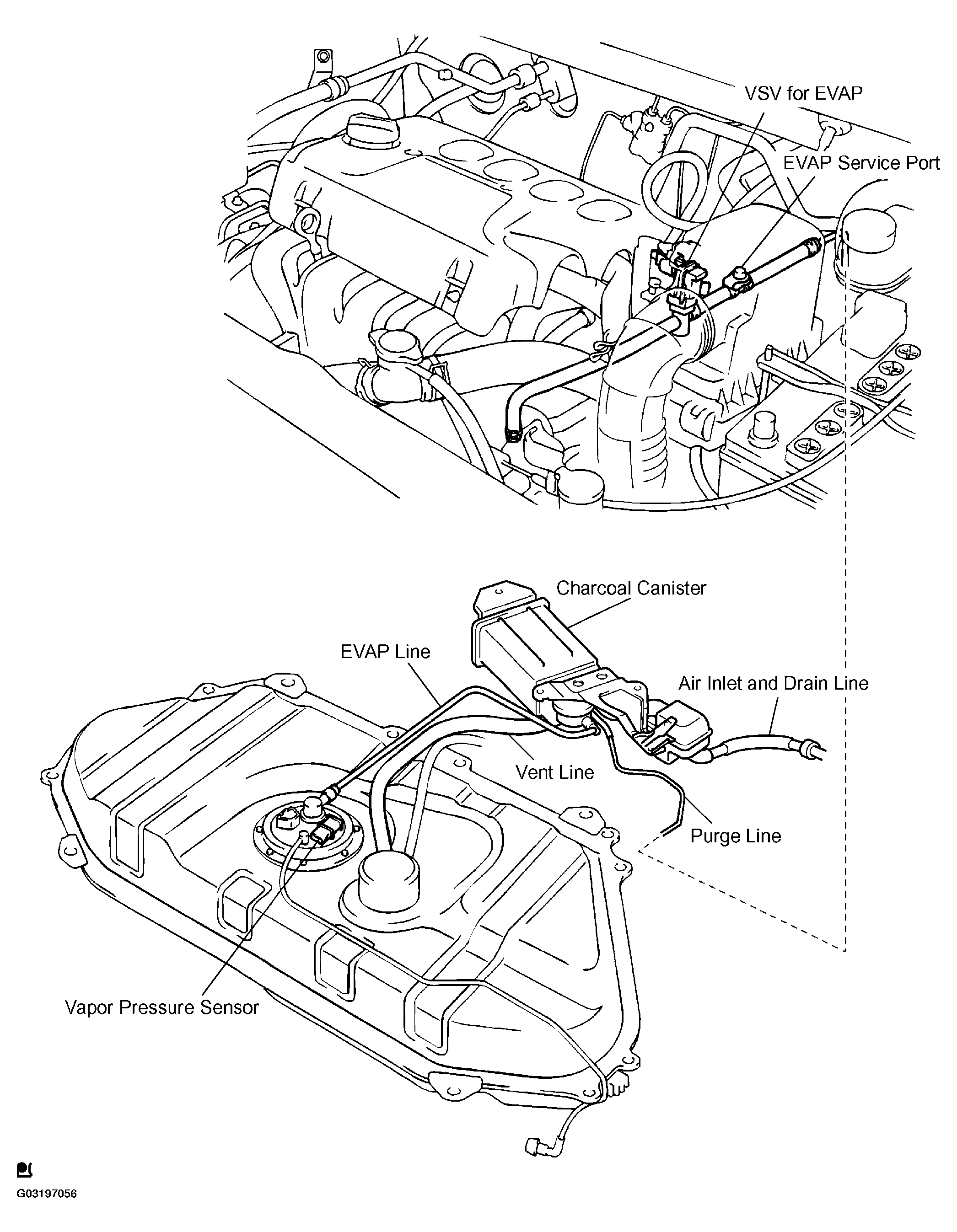

Fig 1: Identifying Emission Control System Location
G03197056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

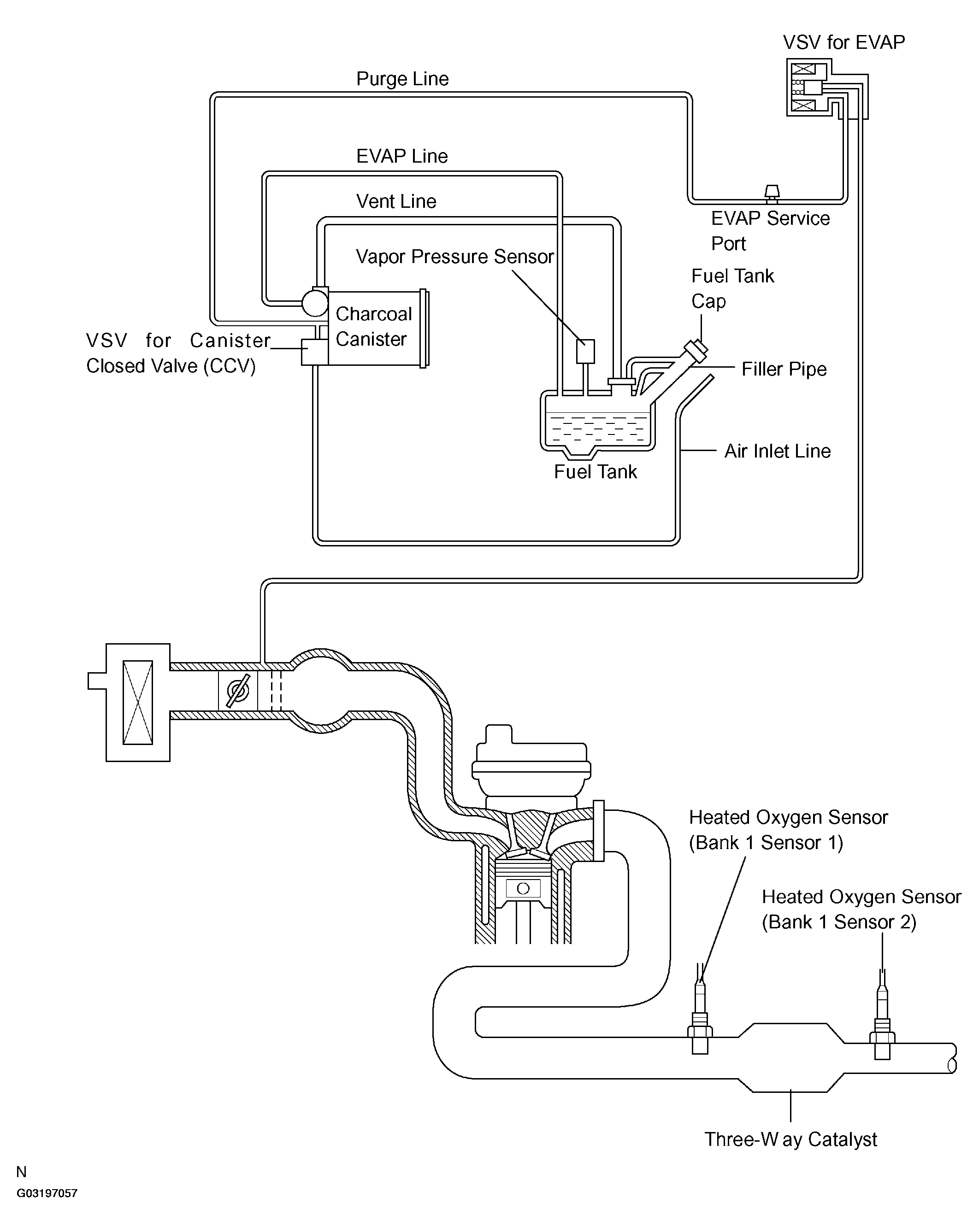

Fig 2: Identifying Emission Control System Diagram
G03197057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
