System Diagram

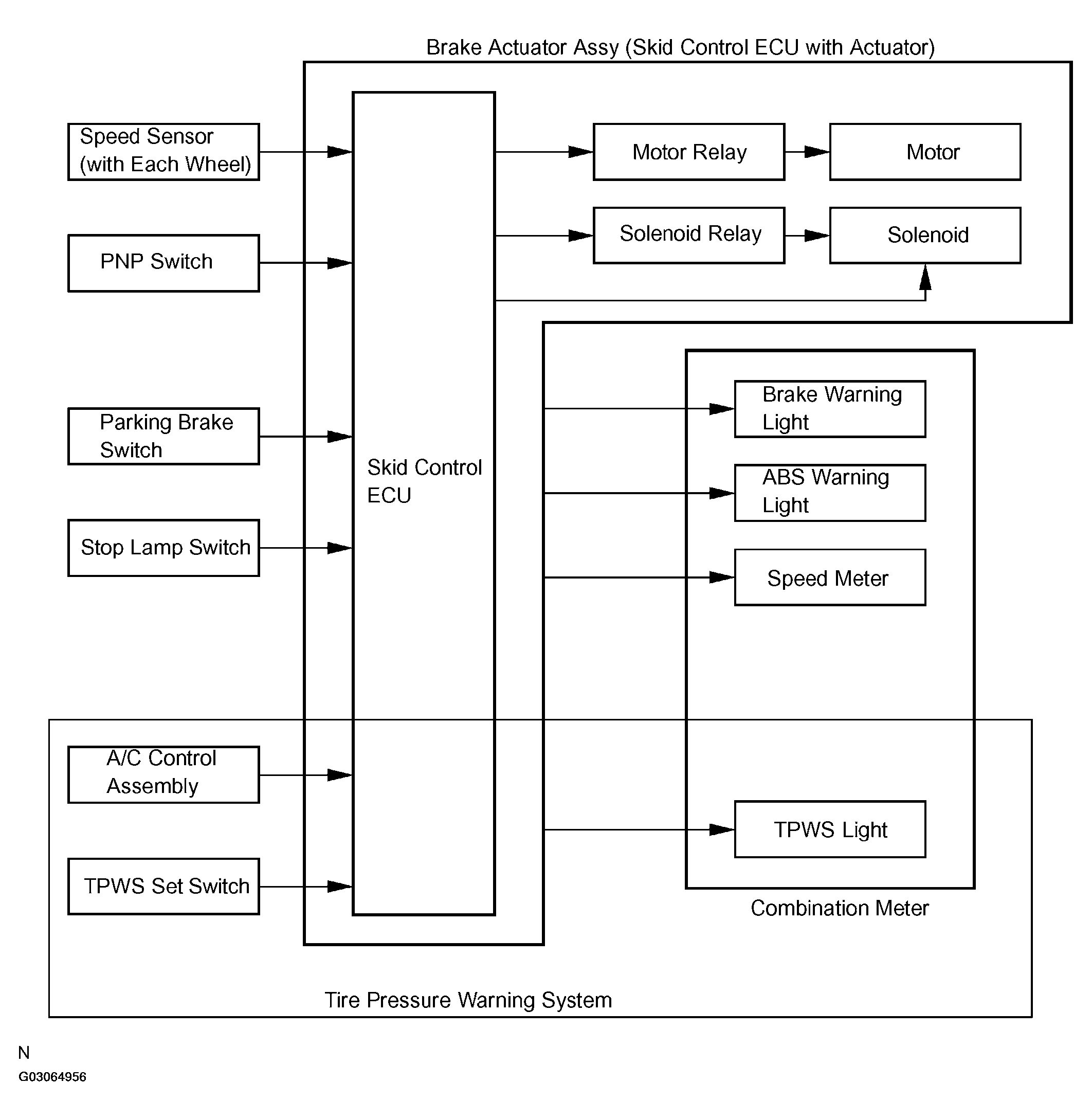

Fig 1: ABS With EBD System Diagram

G03064956

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
