Cylinder Block ASSY: Components

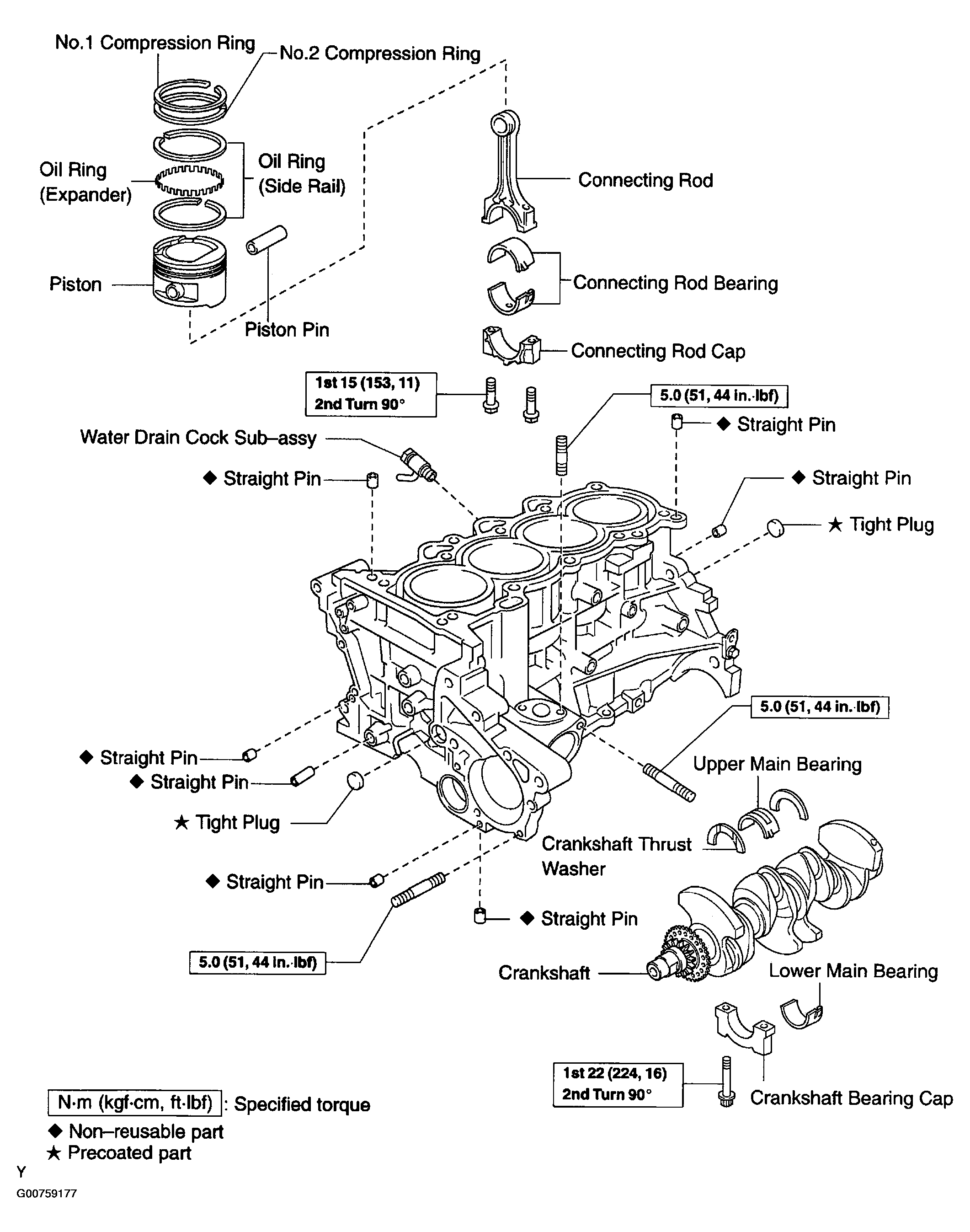

Fig 1: Exploded View Of Cylinder Block Assy

G00759177

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
