Stop Light Switch Circuit: Wiring Diagram

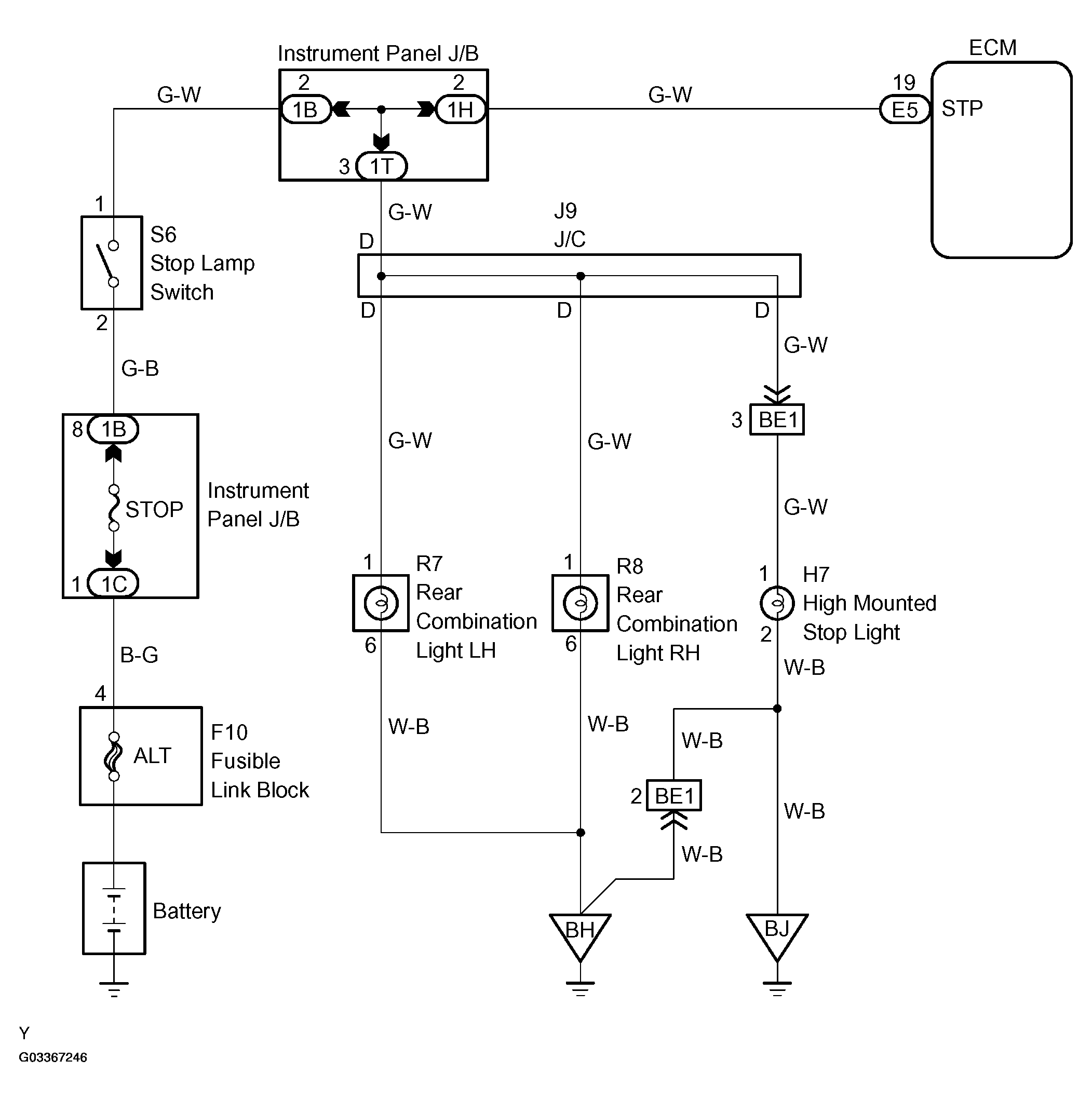

Fig 1: Stop Light Switch Wiring Diagram

G03367246

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
