DTC P0505, DTC P0511: Idle Air Control System Circuit: Wiring Diagram

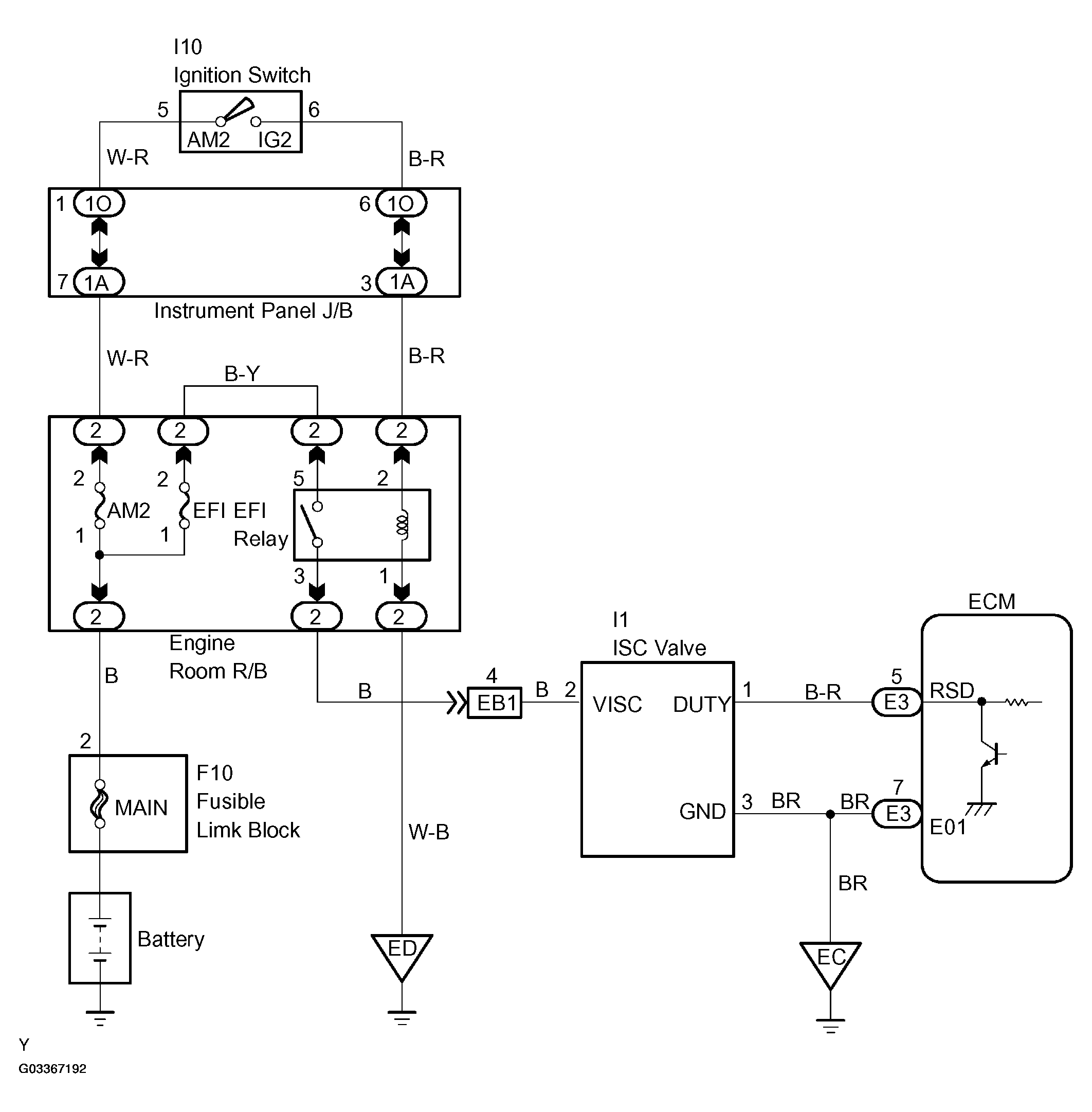

Fig 1: Idle Air Control System Wiring Diagram

G03367192

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
