Cylinder Block ASSY: Components

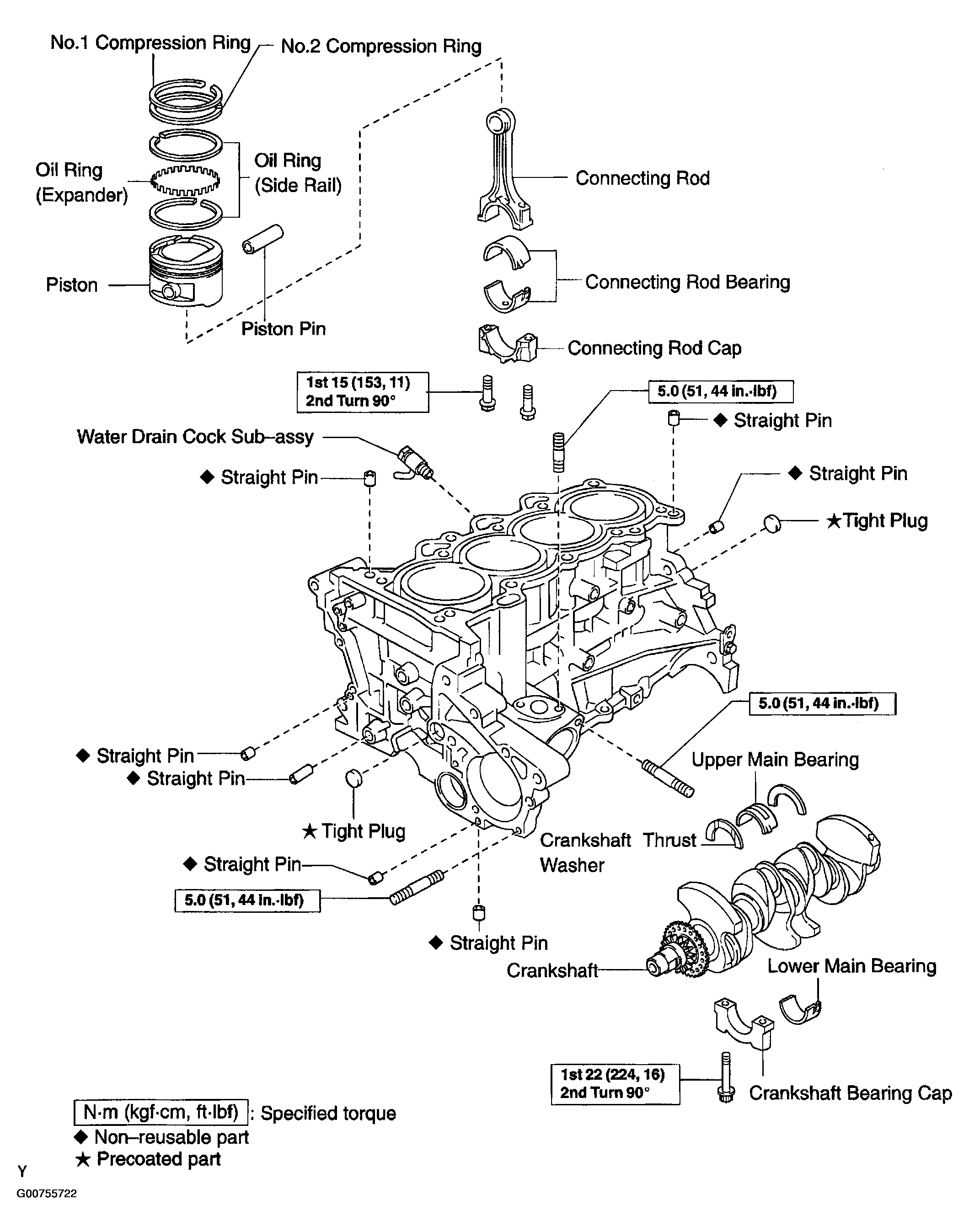

Fig 1: Locating Components Of Cylinder Block Assembly

G00755722

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
