Engine Control System - Diagnosis: Location

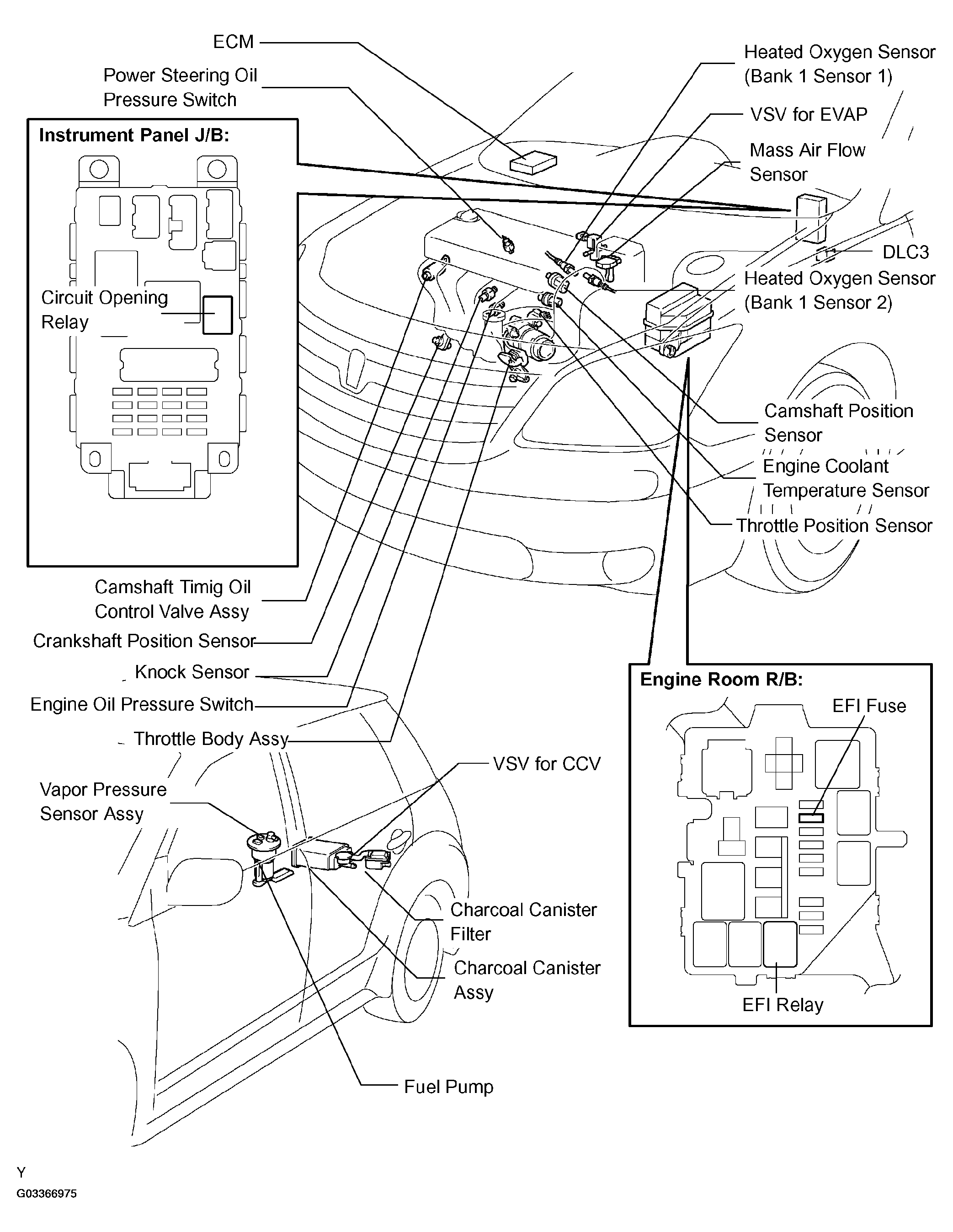

Fig 1: Locating SFI System Components

G03366975

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
