Steering Wheel Secondary/Configurable Control System Wiring Schematics
>>
Steering Wheel Controls System
Steering Wheel Controls System

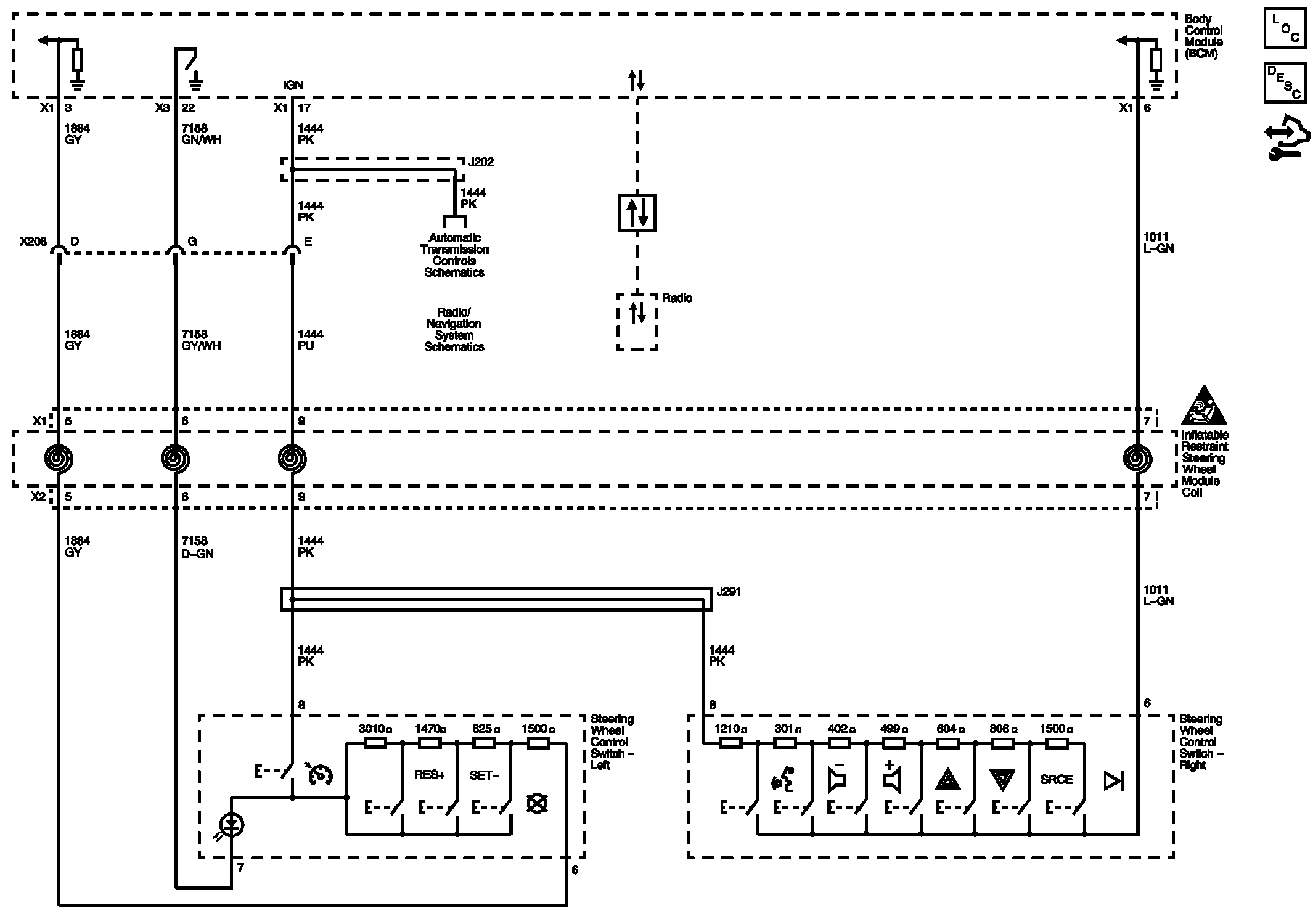

Fig 1: Steering Wheel Controls System Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
