Cooling System Component Views (LHD)
WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

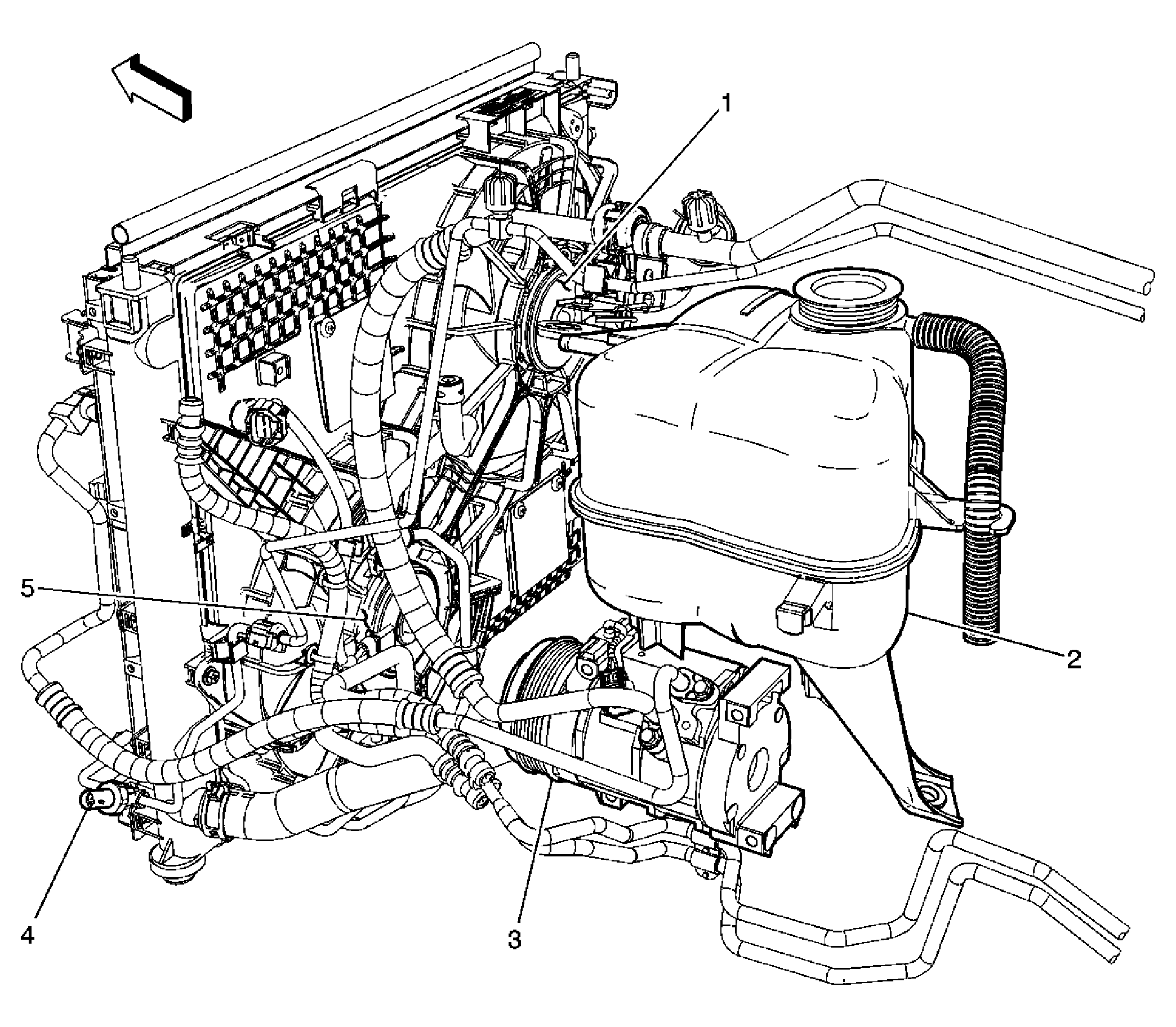

| Callout |
Component Name |
| 1 |
Cooling Fan - Right |
| 2 |
Coolant Surge Tank |
| 3 |
A/C Refrigerant Pressure Sensor (LY7) |
| 4 |
Cooling Fan - Left |
Courtesy of GENERAL MOTORS CORP.

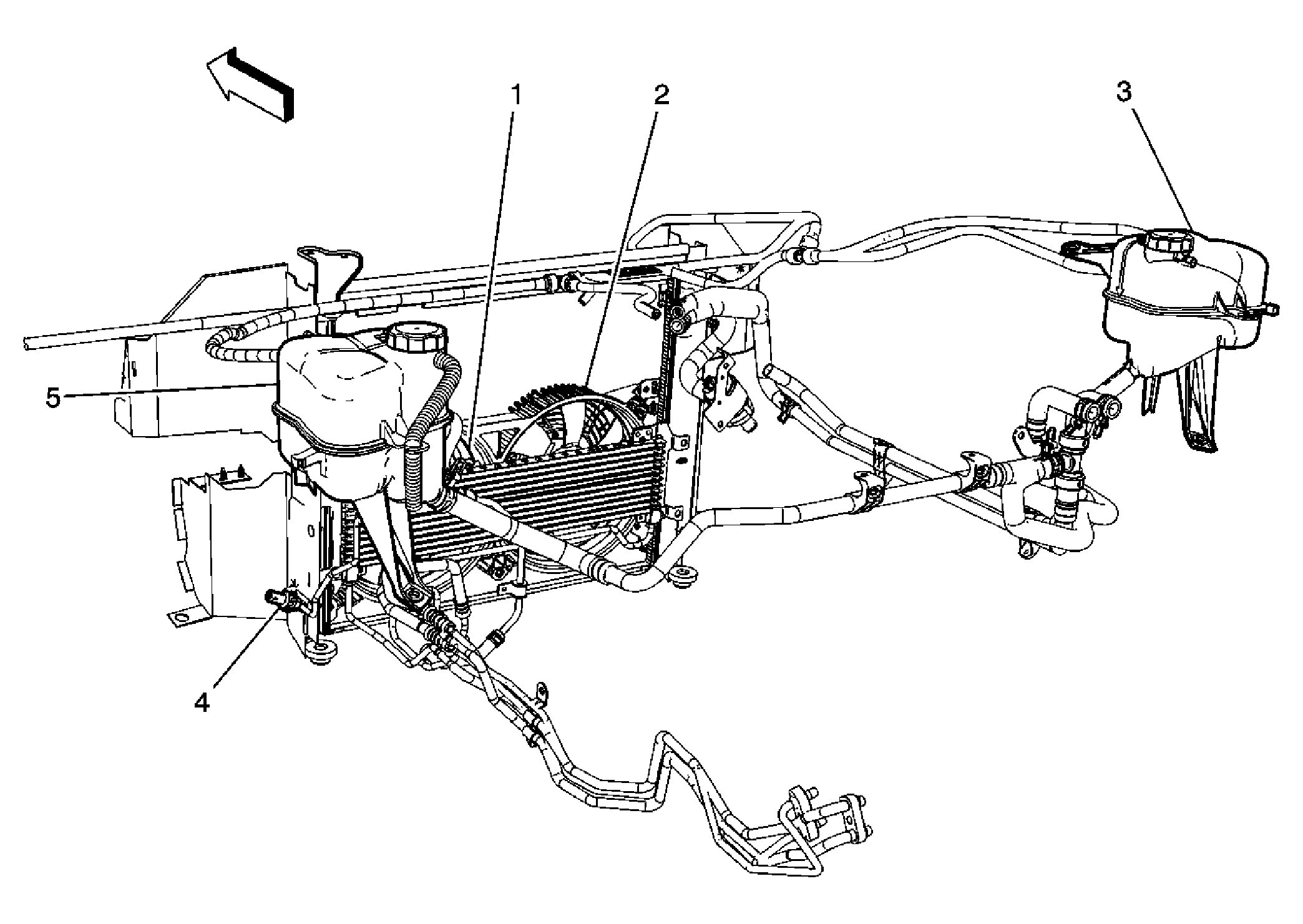

| Callout |
Component Name |
| 1 |
Cooling Fan - Left |
| 2 |
Cooling Fan - Right |
| 3 |
Coolant Surge Tank (RHD) |
| 4 |
A/C Refrigerant Pressure Sensor |
| 5 |
Coolant Surge Tank (LHD) |
