Vehicle Access Component Views (LHD)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

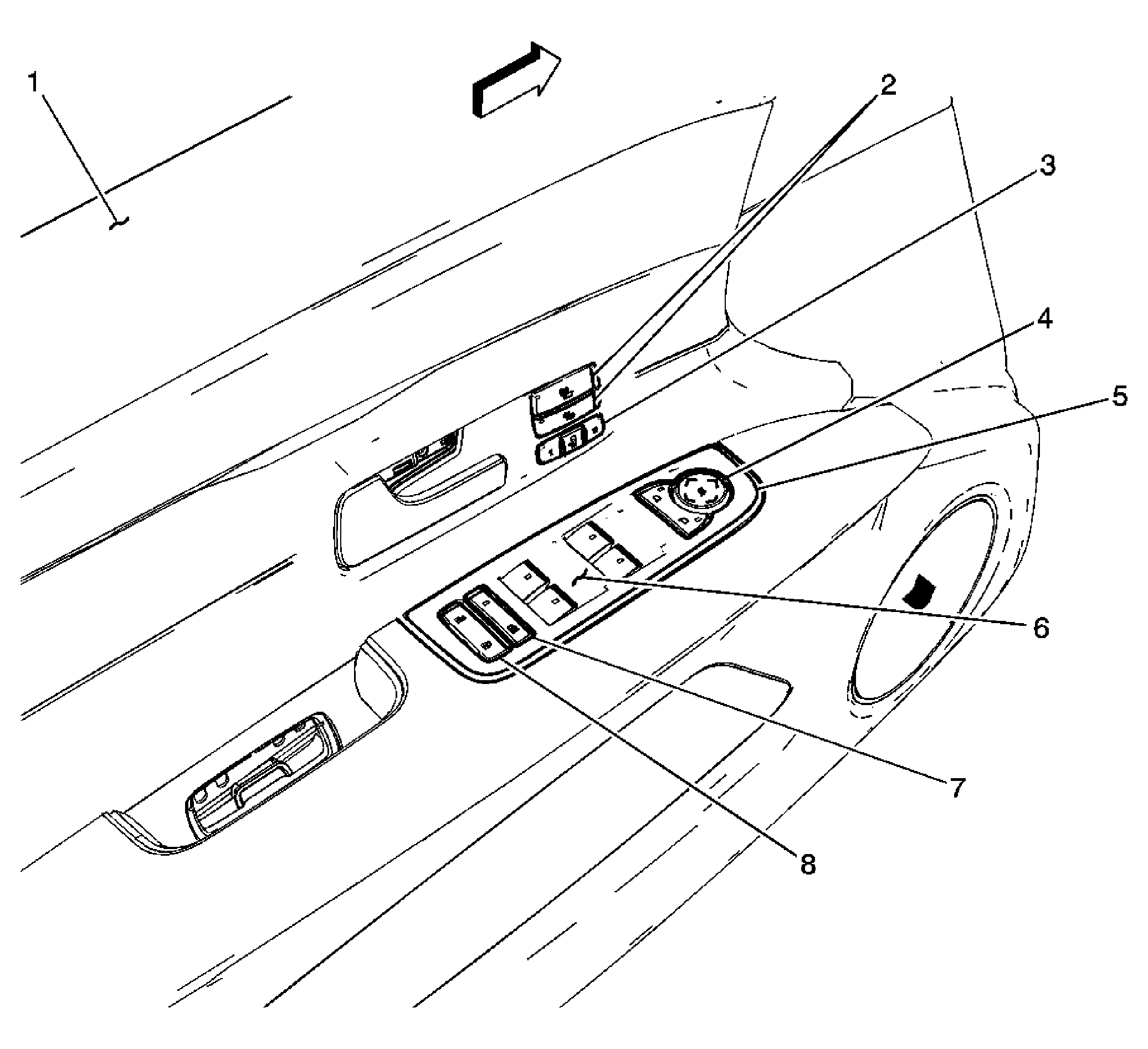

Fig 1: Identifying Driver Door Components (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	Driver Door
2	Heated Seat Switches (KA1)
3	Memory Seat Switch (A45)
4	Outside Rearview Mirror (OSRVM) Switch
5	Driver Door Module (DDM)
6	Window Switches
7	Window Lockout Switch
8	Door Lock/Unlock Switch

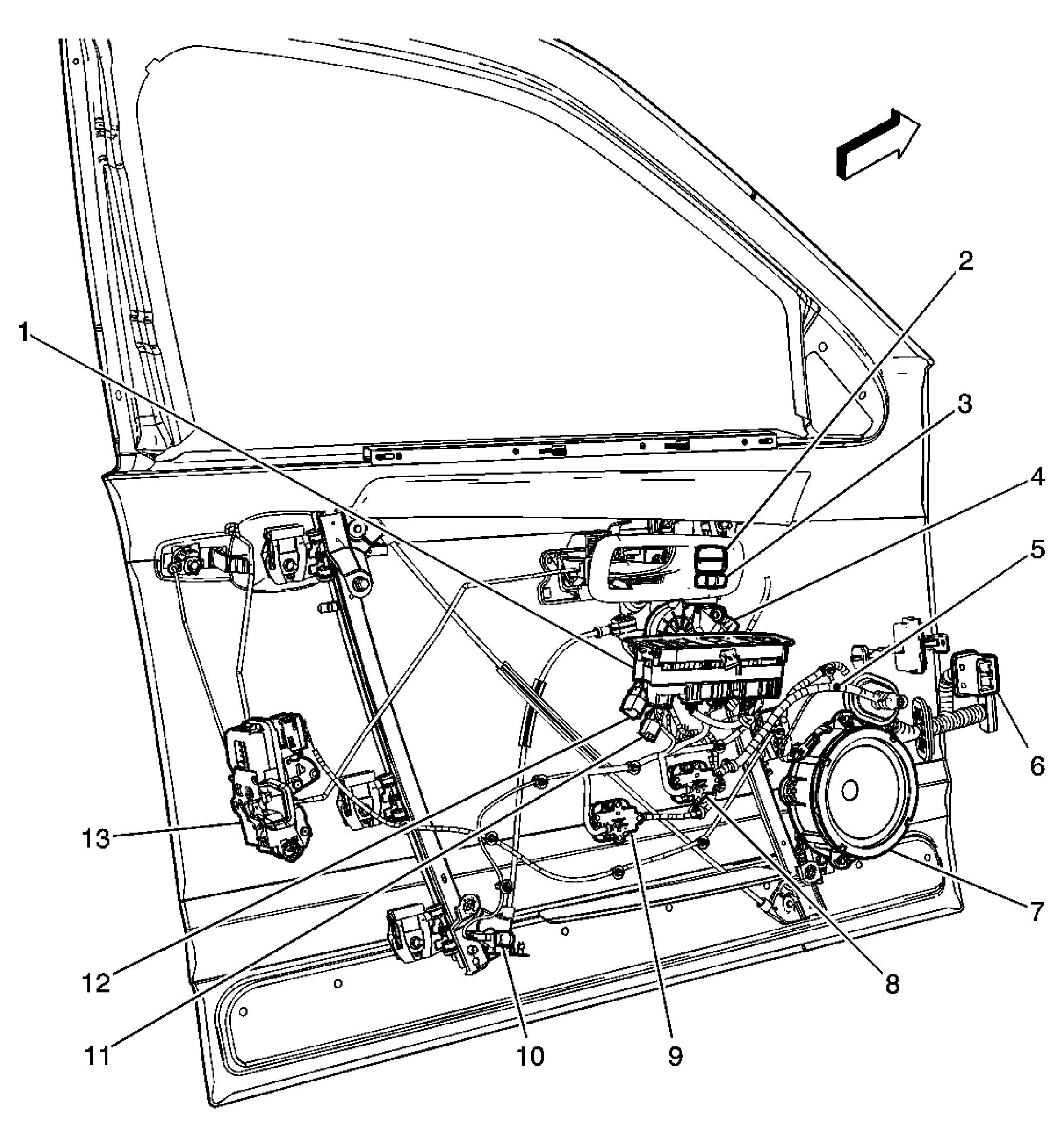

Fig 2: Identifying Driver Door Components (2 of 2)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	Driver Door Module (DDM)
2	Heated Seat Switch - Driver (KA1)
3	Memory Seat Switch (A45)
4	Window Motor - Driver
5	S501
6	C500
7	Speaker - LF Door
8	C501
9	C502
10	Courtesy Lamp - Left Front Door
11	Outside Rearview Mirror (OSRVM) - Driver Side C1
12	Outside Rearview Mirror (OSRVM) - Driver Side C2
13	Door Latch Assembly - Driver

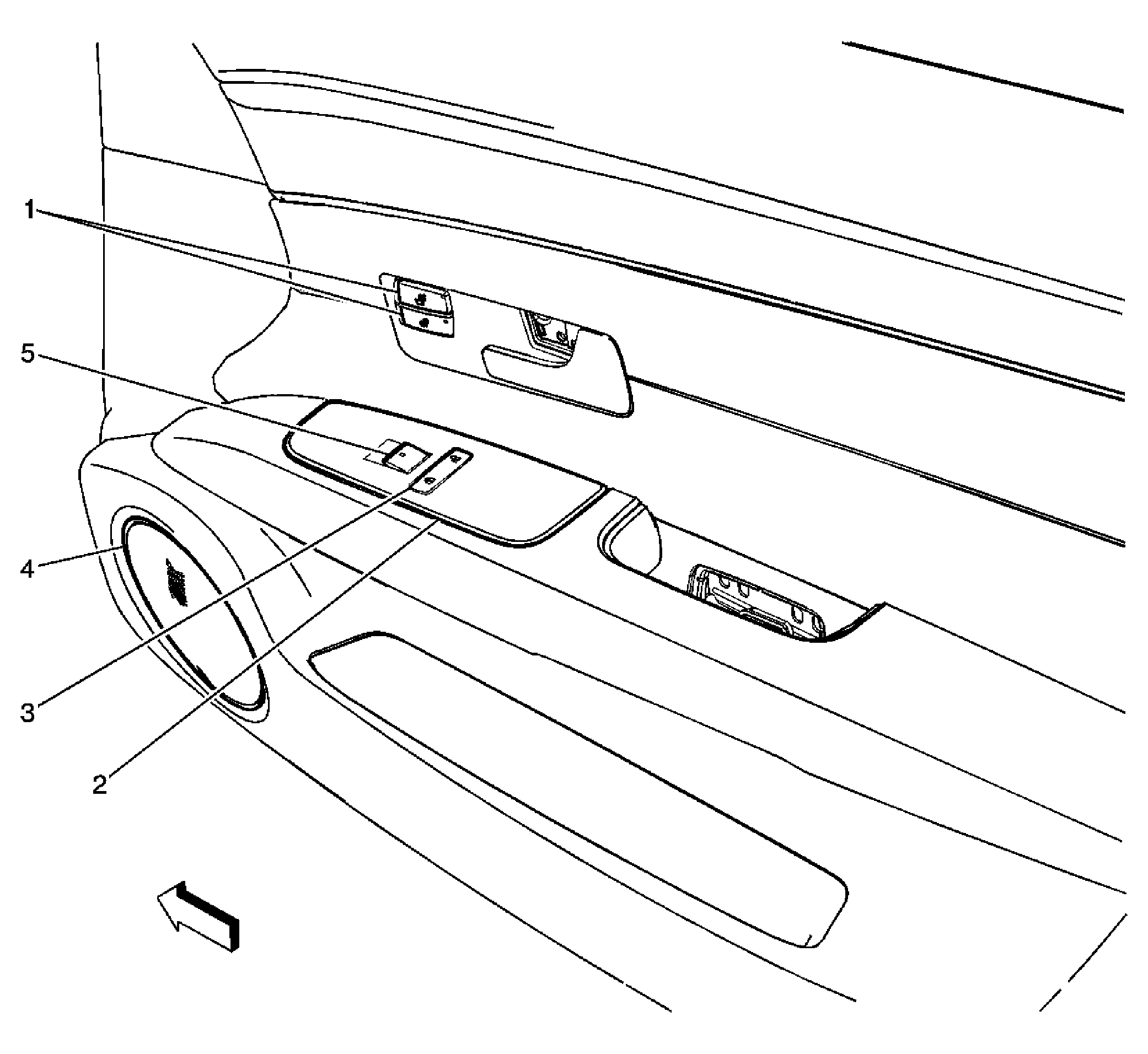

Fig 3: Identifying Front Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	Heated Seat Switch - Front Passenger (KA1)
2	Front Passenger Door Module (FPDM)
3	Door Lock Switch - Front Passenger
4	Speaker - RF Door
5	Window Switch - Front Passenger

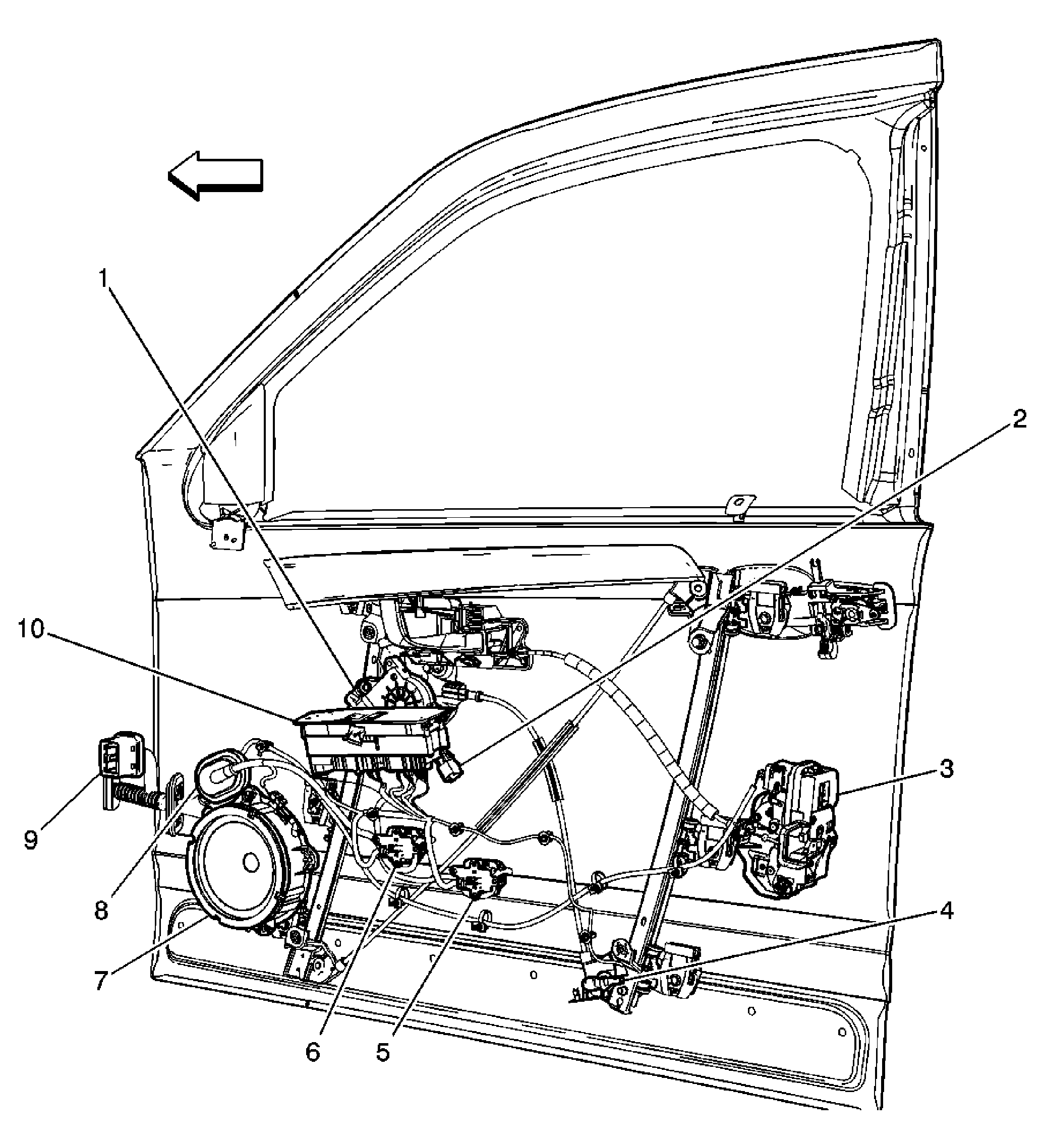

Fig 4: Identifying Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4

Callout	Component Name
1	Window Motor - Passenger
2	Outside Rearview Mirror (OSRVM) - Passenger Side
3	Door Latch Assembly - Passenger
4	Courtesy Lamp - Right Front Door
5	C602
6	C601
7	Speaker - RF Door
8	S601
9	C600
10	Front Passenger Door Module (FPDM)

Fig 5: Identifying Right Rear Door Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 5

Callout	Component Name
1	C801
2	Door Latch Assembly - Right Rear
3	Window Motor - RR
4	Speaker - RR Door
5	C800
6	S800
7	Window Switch - RR

Fig 6: Identifying Left Rear Door Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 6

Callout	Component Name
1	Window Switch - Left Rear
2	S701
3	C700
4	Speaker - Left Rear Door
5	Window Motor - Left Rear
6	C701
7	Door Latch Assembly - Left Rear

Fig 7: Identifying Liftgate Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 7

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL)
2	C404
3	C403
4	Rear Window Defogger Grid C2
5	Rear Window Wiper Motor
6	S902
7	License Lamp/Backup Lamp Harness
8	S904
9	S903
10	S909
11	Liftgate Handle Switch
12	Liftgate Latch
13	S901
14	License Lamps
15	Courtesy Lamp - Rear Liftgate
16	Rear Window Defogger Grid C2
17	C401

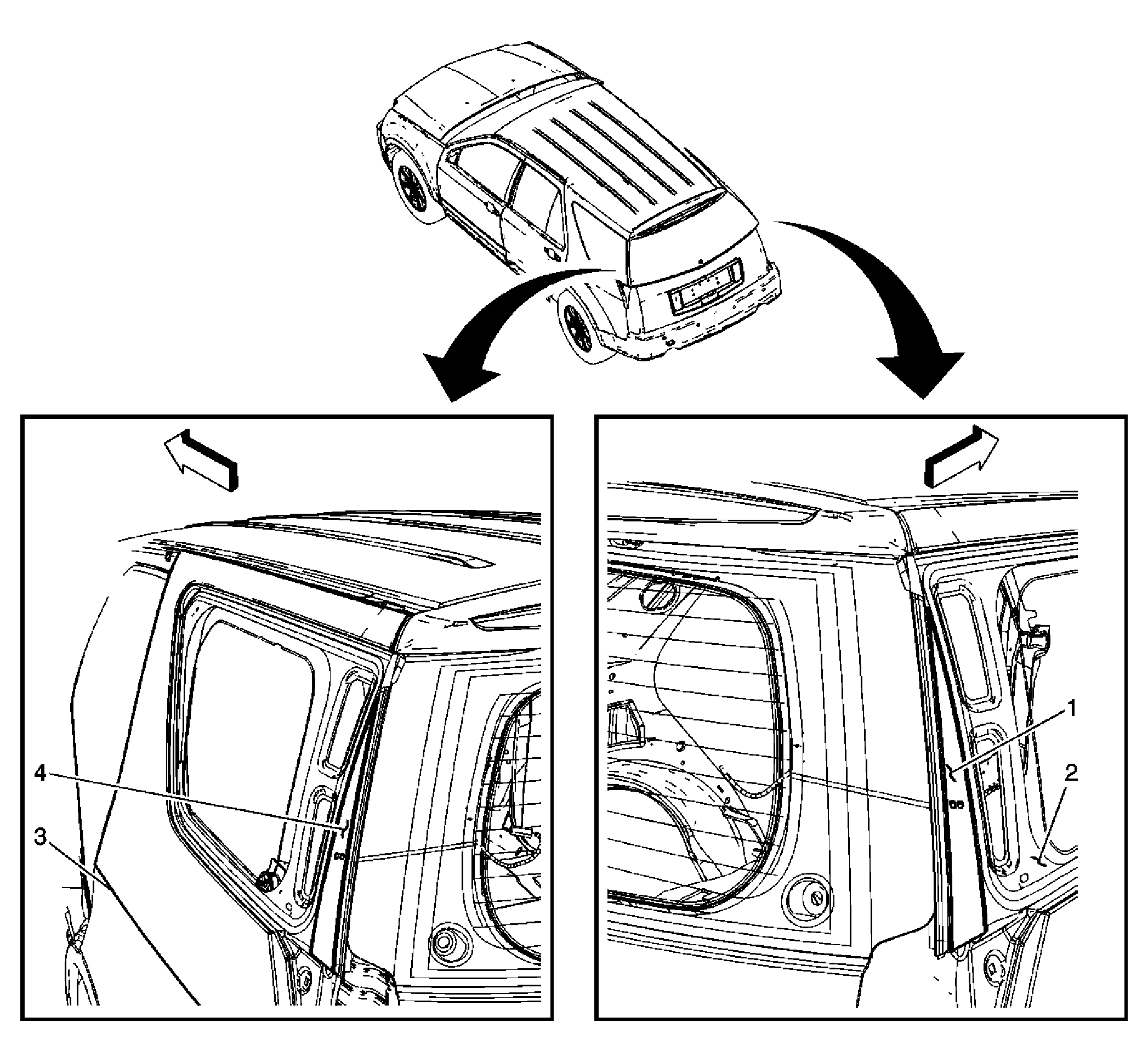

Fig 8: Identifying Liftgate Side Upper Sensors

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 8

Callout	Component Name
1	Liftgate Side Upper Sensor - Right
2	Inner Side Panel - RR
3	Quarter Panel - LR
4	Liftgate Side Upper Sensor - Left

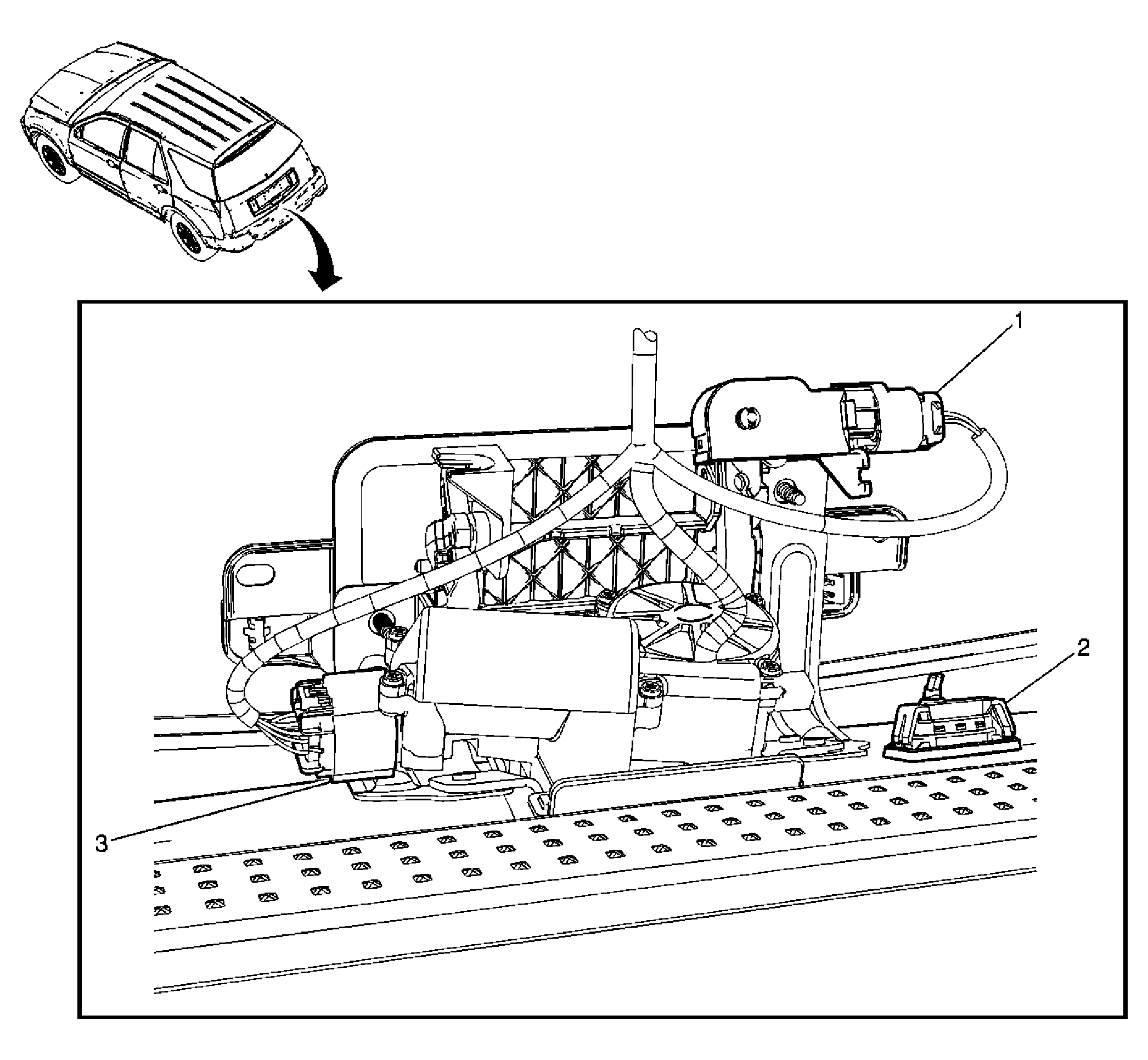

Fig 9: Identifying Ligtgate Switches (Lower Center of Liftgate)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 9

Callout	Component Name
1	Liftgate Handle Switch
2	Liftgate Close Switch
3	Liftgate Latch

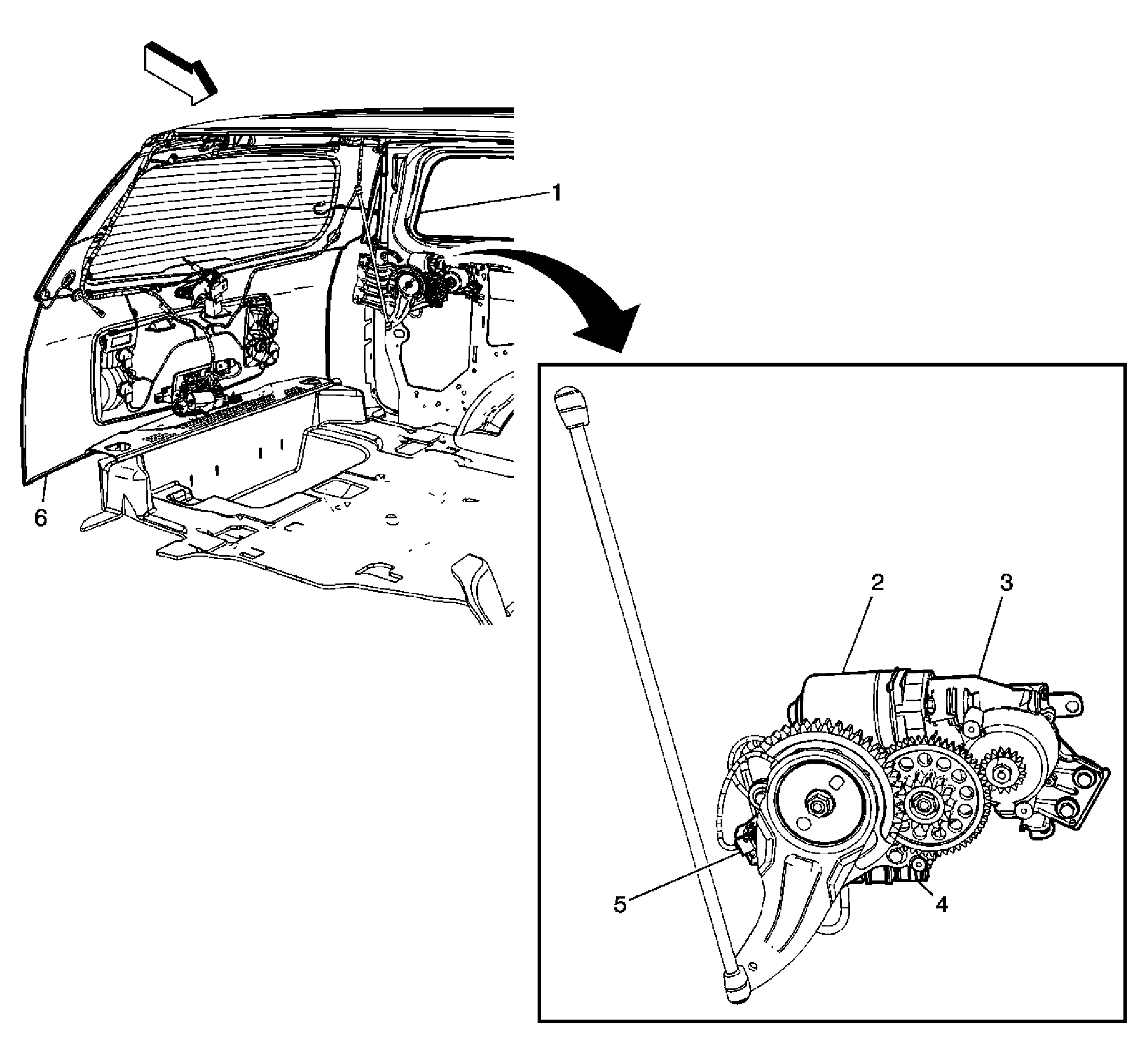

Fig 10: Identifying Power Liftgate Components (RR Compartment Area Behind Trim Panel)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 10

Callout	Component Name
1	Inner Frame - LH
2	Power Liftgate Motor
3	Power Liftgate Clutch (PLC)
4	Power Liftgate Module
5	Liftgate Open Switch
6	Liftgate
