Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

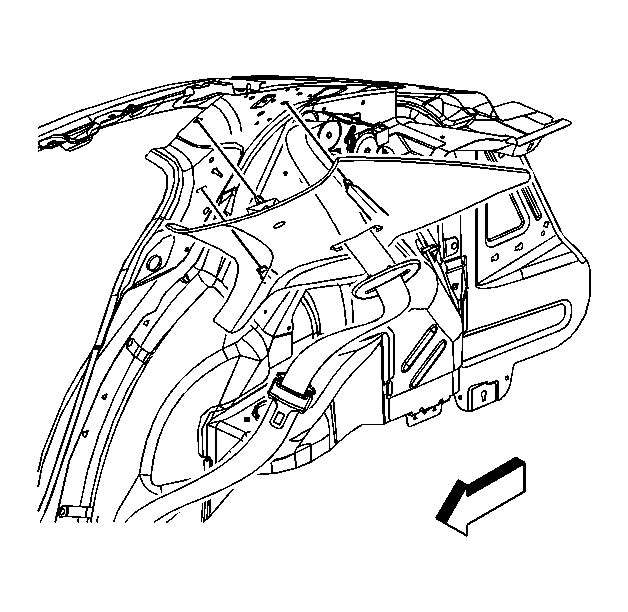

    Fig 1: Sail Panel
    GM1455772Courtesy of GENERAL MOTORS CORP.
  1. Position the sail panel to the C-pillar.
  2. Route the outboard shoulder belt and escutheon through the sail panel.
    3. NOTE: Ensure the shoulder belt is free of twists.
  3. Straighten the belt, if needed, prior to securing the shoulder belt floorpan fastener.
    4. Fig 2: Rear Sail Retainers
    GM708301Courtesy of GENERAL MOTORS CORP.
  4. Position the upper sail panel downward next to the end of the rear shelf trim panel.
  5. Insert the upper metal integral clip (1) on the trim panel to the slot located in the headliner.
  6. Insert the lower metal integral clip (2) to the sheet metal.
  7. Position the plastic push-in retainer (3) to the hole in the sheet metal.
  8. Press inward at the plastic retainer in order to secure.
    9. CAUTION: Refer to Fastener Caution .
  9. Install the fastener with a magnetic-tipped screwdriver and tighten to 2 N.m (18 lb in).
  10. Secure the seat belt escutheon to the sail panel.
  11. Install the screw cover to the sail panel.
  12. Enable the SRI system. Refer to SIR Disabling and Enabling .
