Release Systems Schematics

WARNING: This page is about a different car, the 2008 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

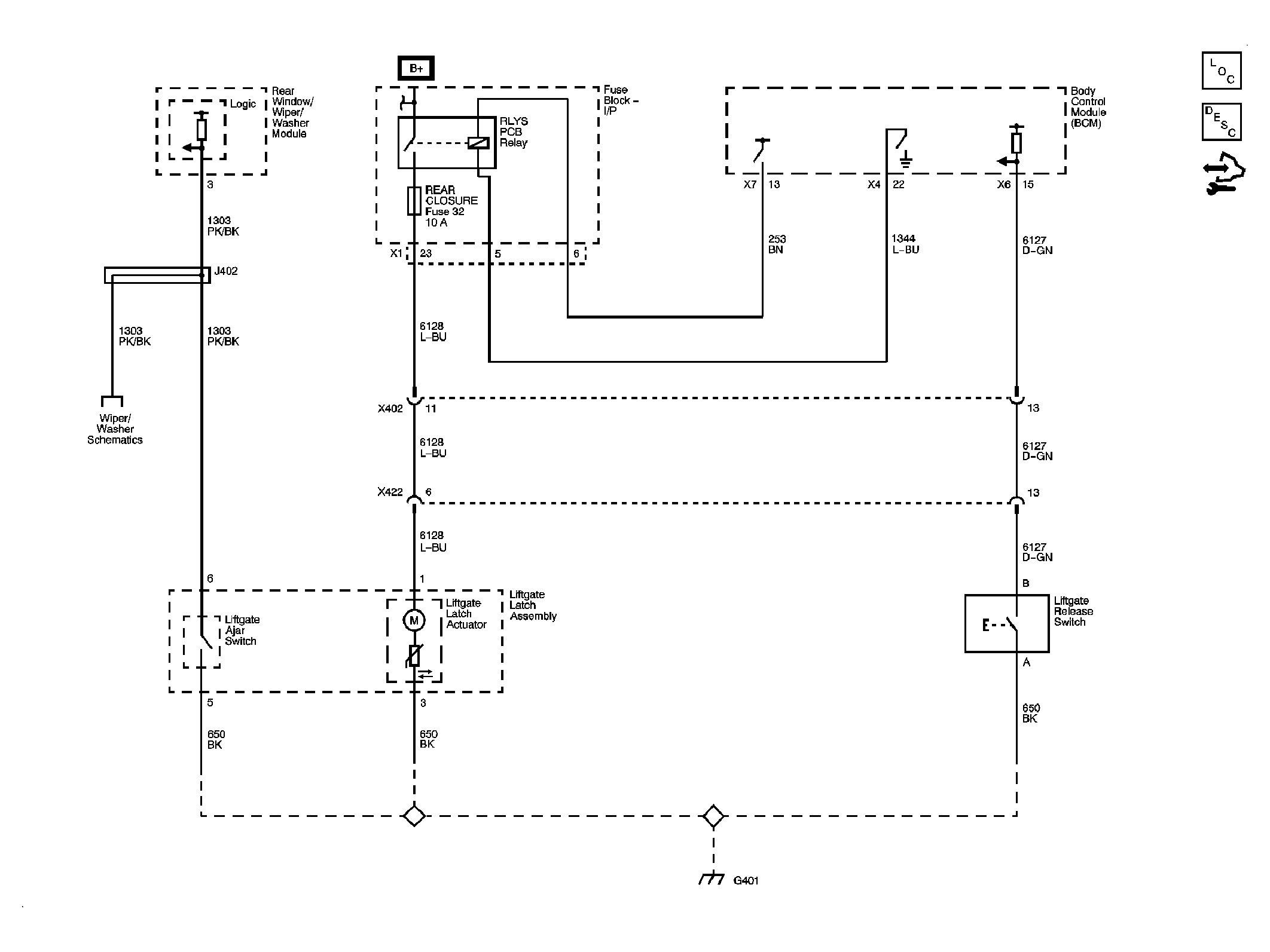

Fig 1: Liftgate Latch Actuator - Schematic
GM1878076Courtesy of GENERAL MOTORS CORP.
Fig 2: Liftgate Release System - Schematic
GM1878077Courtesy of GENERAL MOTORS CORP.
