Liftgate Latch Replacement
WARNING: This page is about a different car, the 2008 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

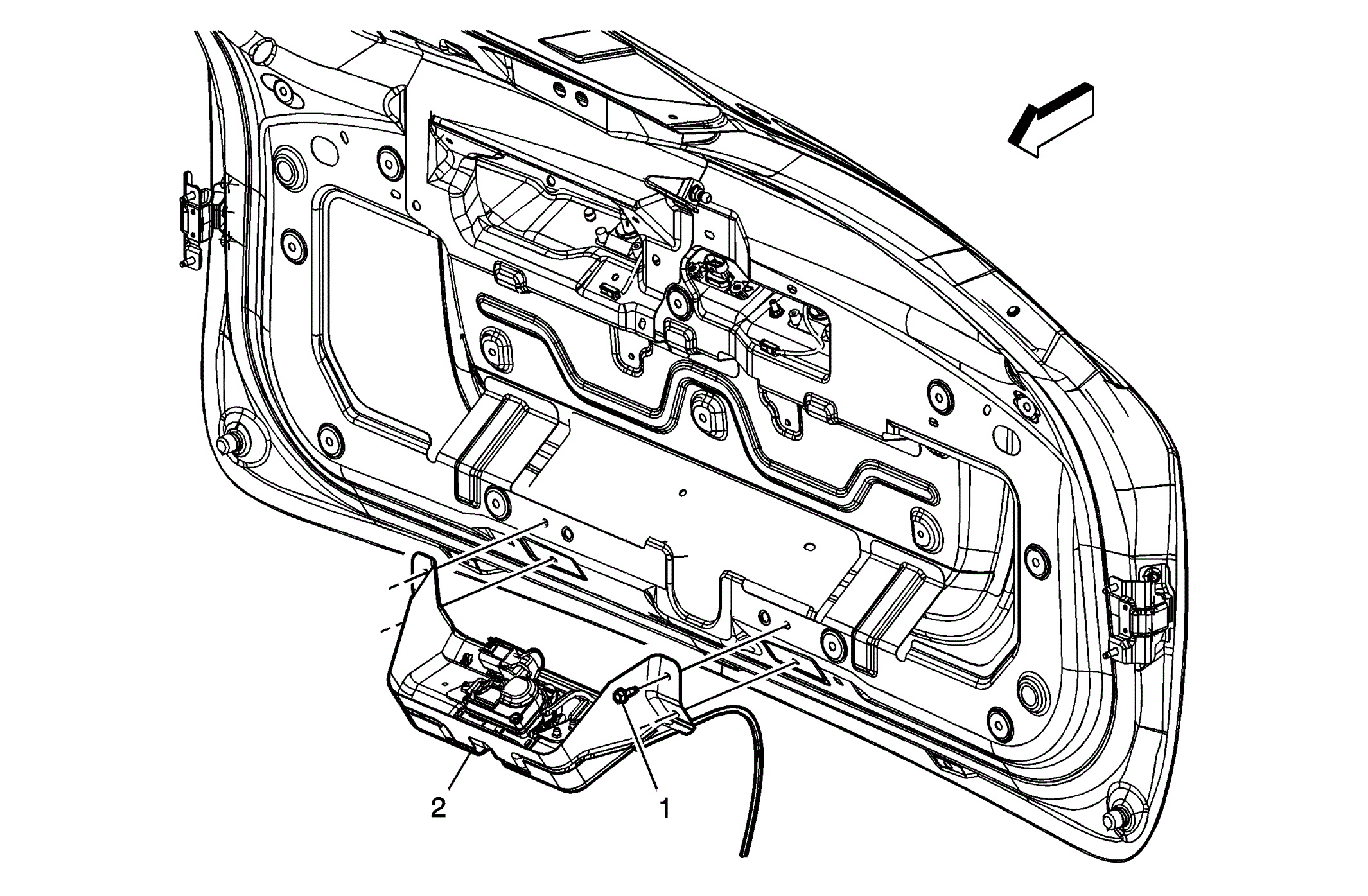

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the liftgate interior trim panel. Refer to Liftgate Trim Panel Replacement . |
|
| 1 | Liftgate Latch Bolt (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 10 N.m (89 lb in) |
| 2 | Liftgate Latch Assembly Procedure: Disconnect the electrical connector from the liftgate latch. |
