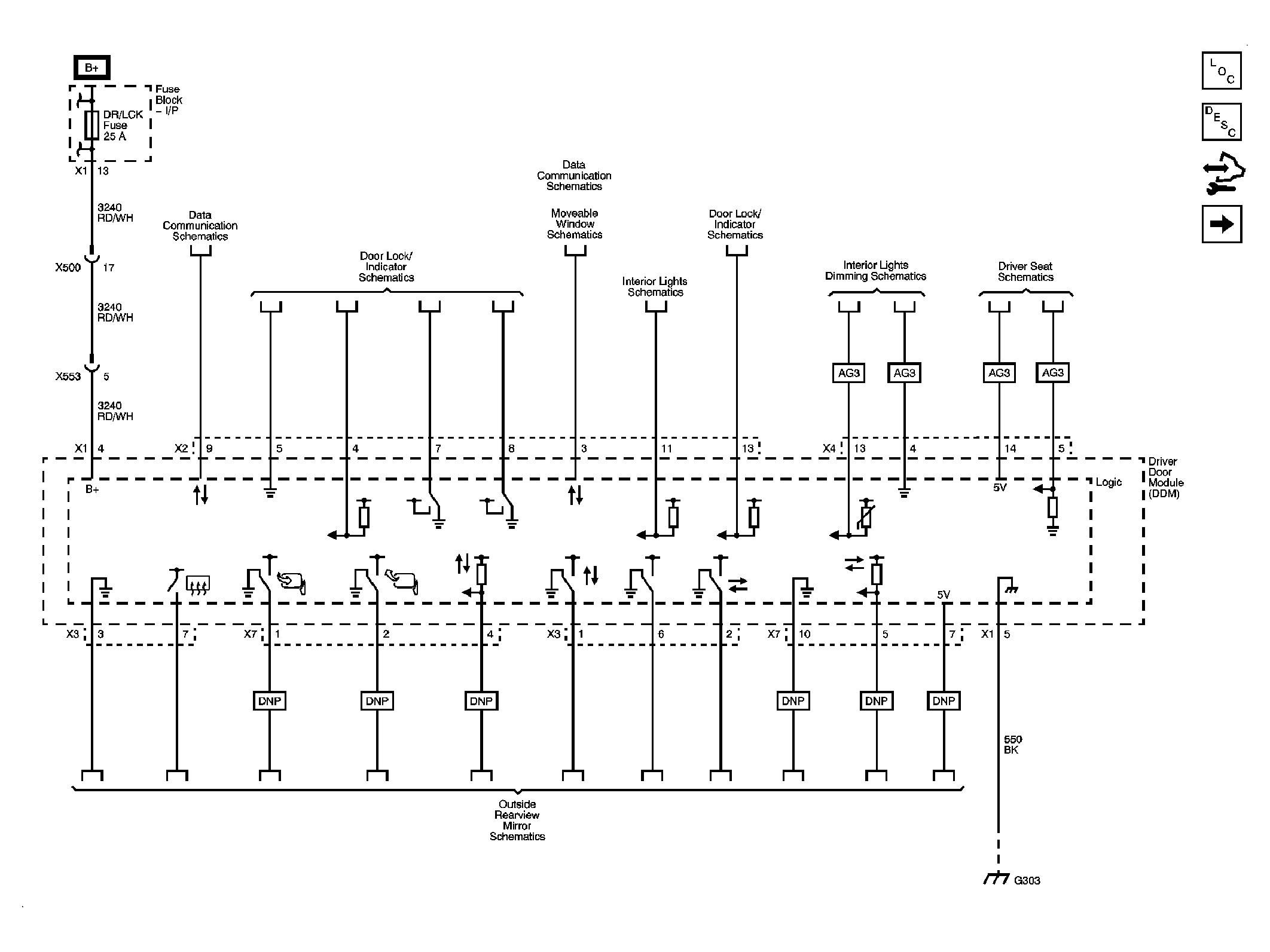

Fig 1: DDM Power, Ground, and all except KA1 References
Courtesy of GENERAL MOTORS CORP.

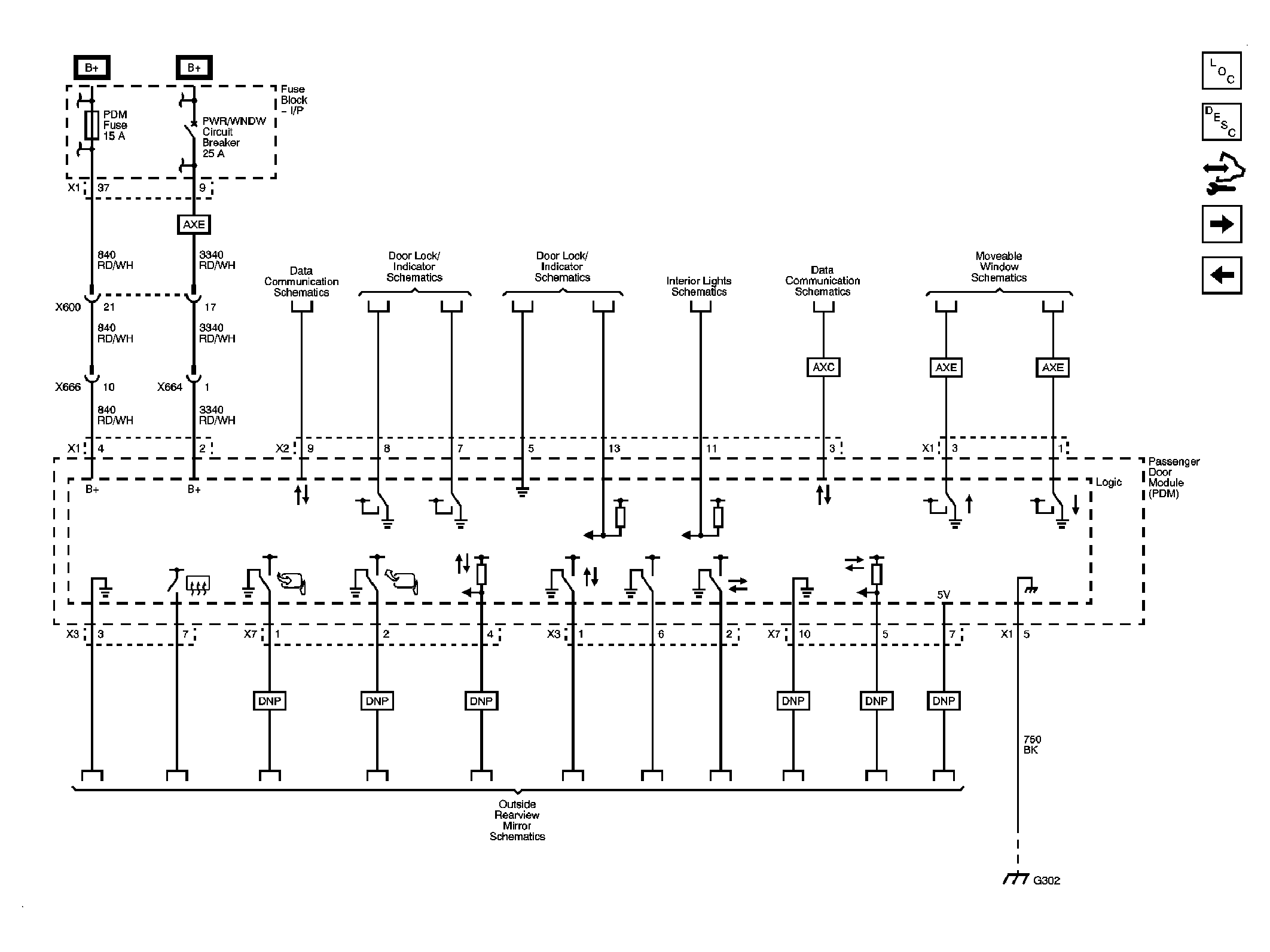

Fig 2: PDM Power, Ground, and all except KA1 References
