Power Moding Schematics

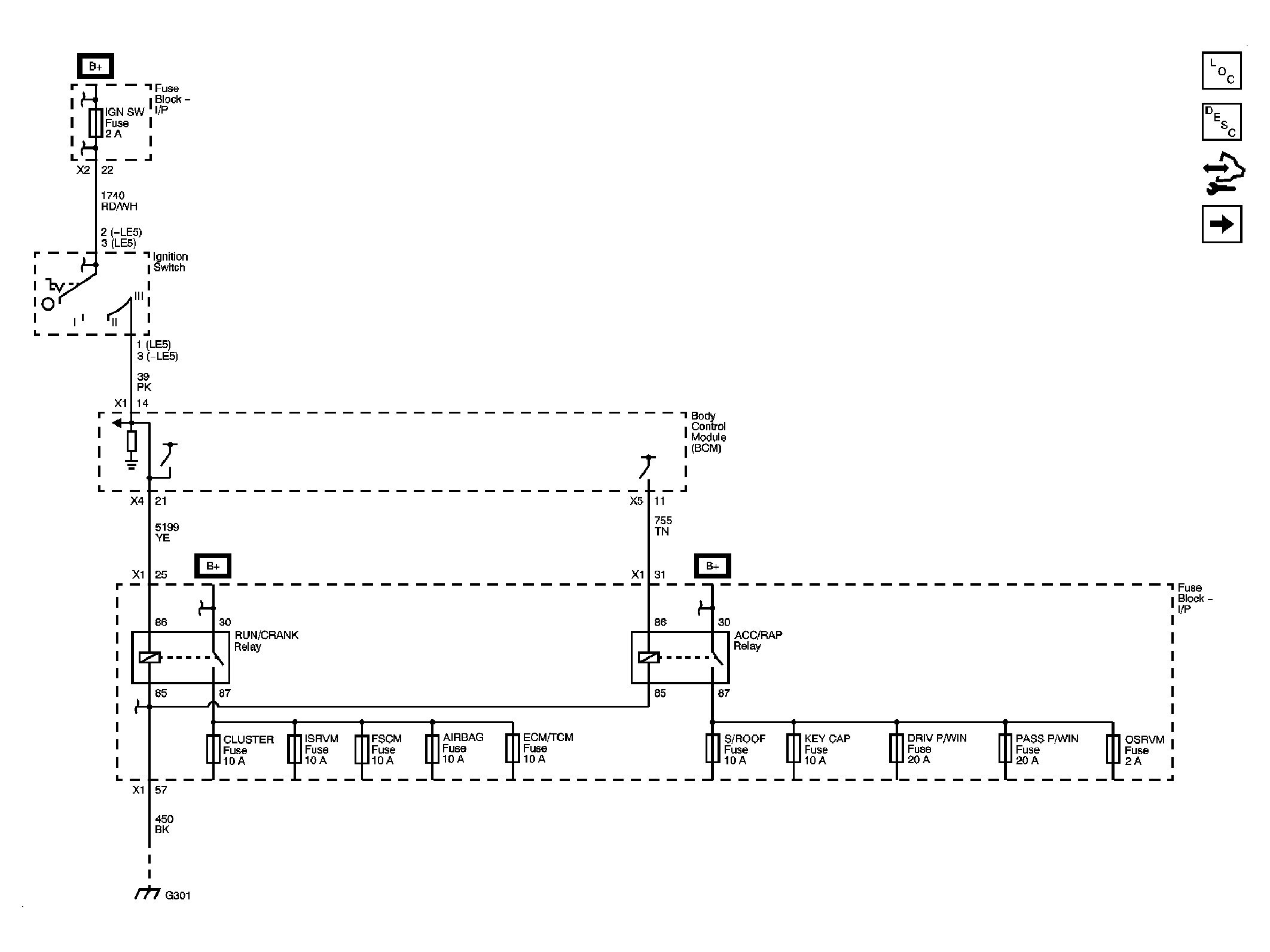

Fig 1: RAP Relay Control

GM2080155

Courtesy of GENERAL MOTORS CORP.

Fig 2: Run Relay

GM2080166

Courtesy of GENERAL MOTORS CORP.

Fig 3: Data Communications Enable

GM2102898

Courtesy of GENERAL MOTORS CORP.
