Door Lock Switch Replacement

WARNING: This page is about a different car, the 2008 Saturn Sky and 2008 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

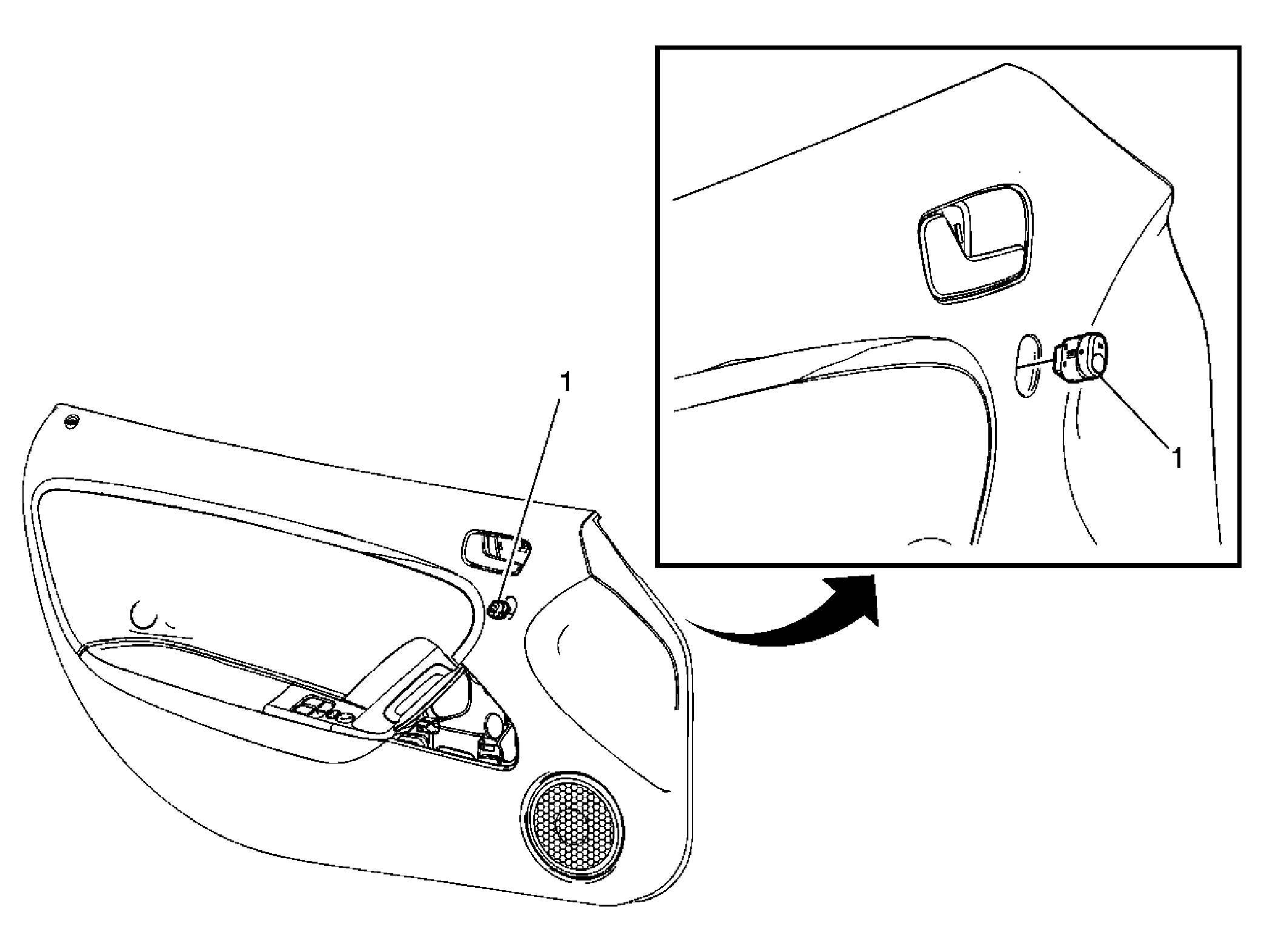

Fig 1: View Of Door Lock Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front door trim panel. Refer to Door Trim Panel Replacement .
1	Switch Assembly, Door Lock Procedure Disconnect the electrical connector. Disengage retaining tabs on switch and push out from back of door trim panel.

Callout

Component Name

Preliminary Procedure:
Remove the front door trim panel. Refer to Door Trim Panel Replacement .

Switch Assembly, Door Lock

Procedure

Disconnect the electrical connector.
Disengage retaining tabs on switch and push out from back of door trim panel.
