Antilock Brake System Schematics

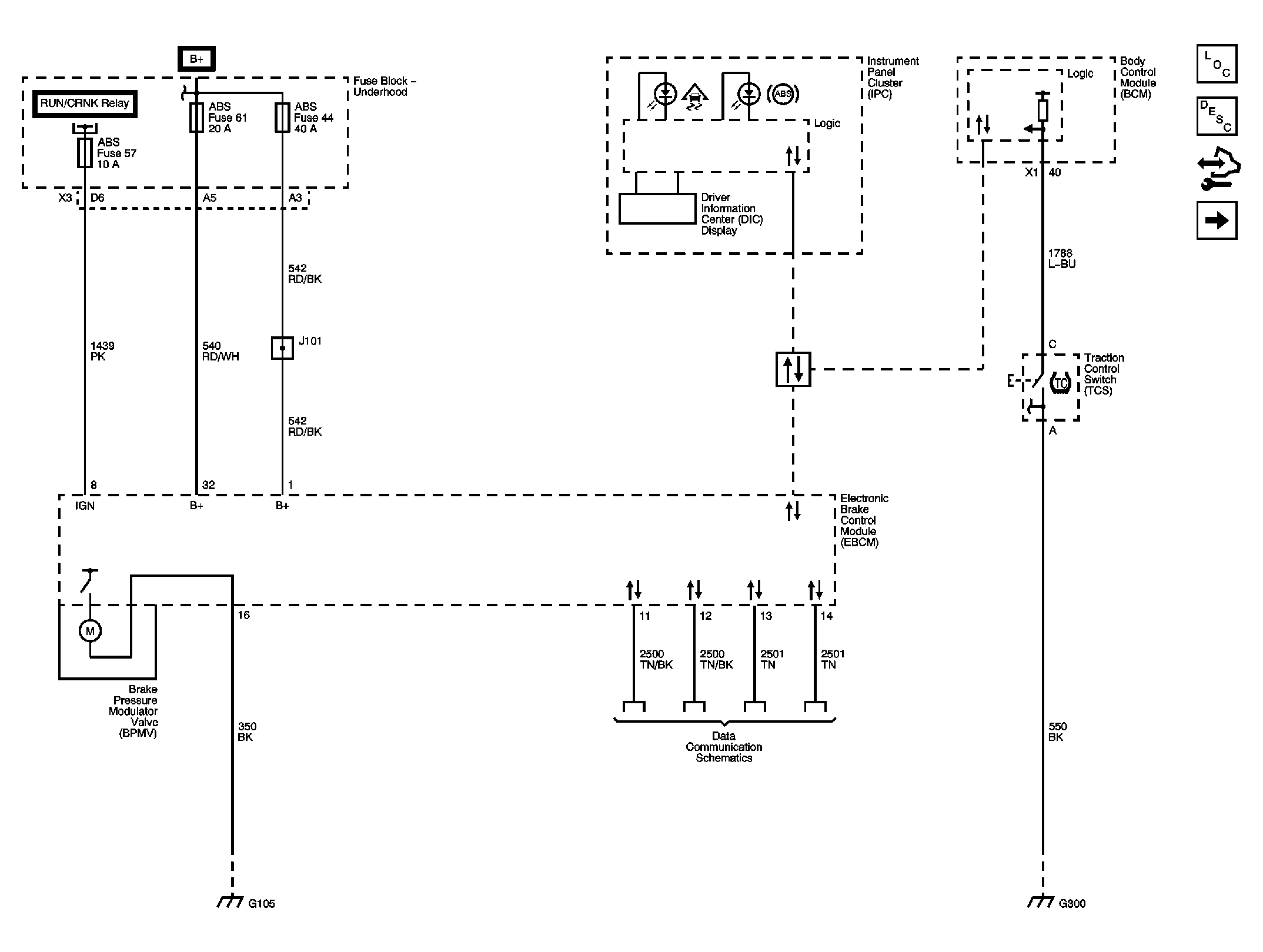

Fig 1: Power, Ground, Indicator, Traction Control Switch & Brake Booster Vacuum Sensor (LNF)
GM2049455Courtesy of GENERAL MOTORS CORP.

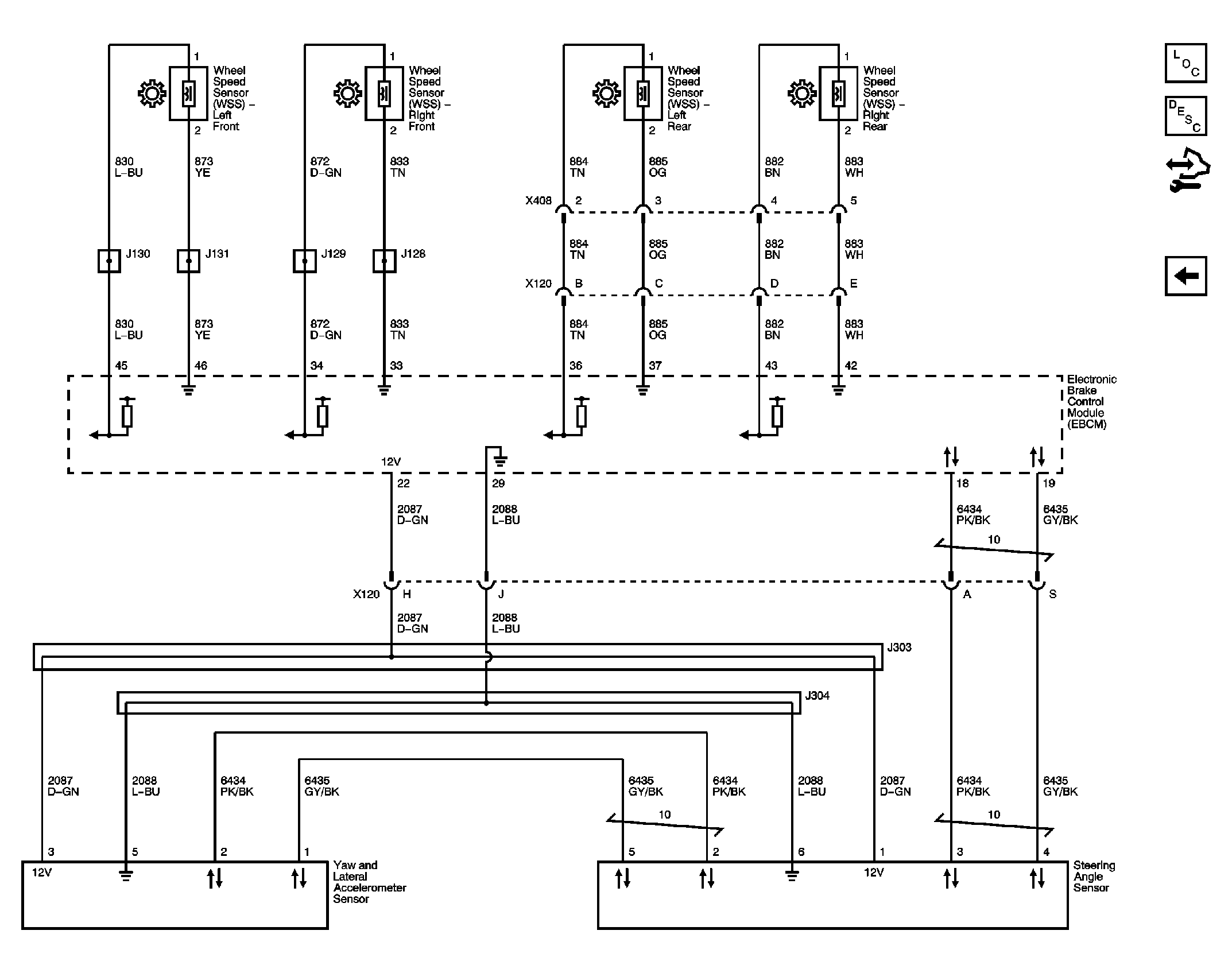

Fig 2: Stability Control Sensors (JL4)
GM2049457Courtesy of GENERAL MOTORS CORP.
