Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

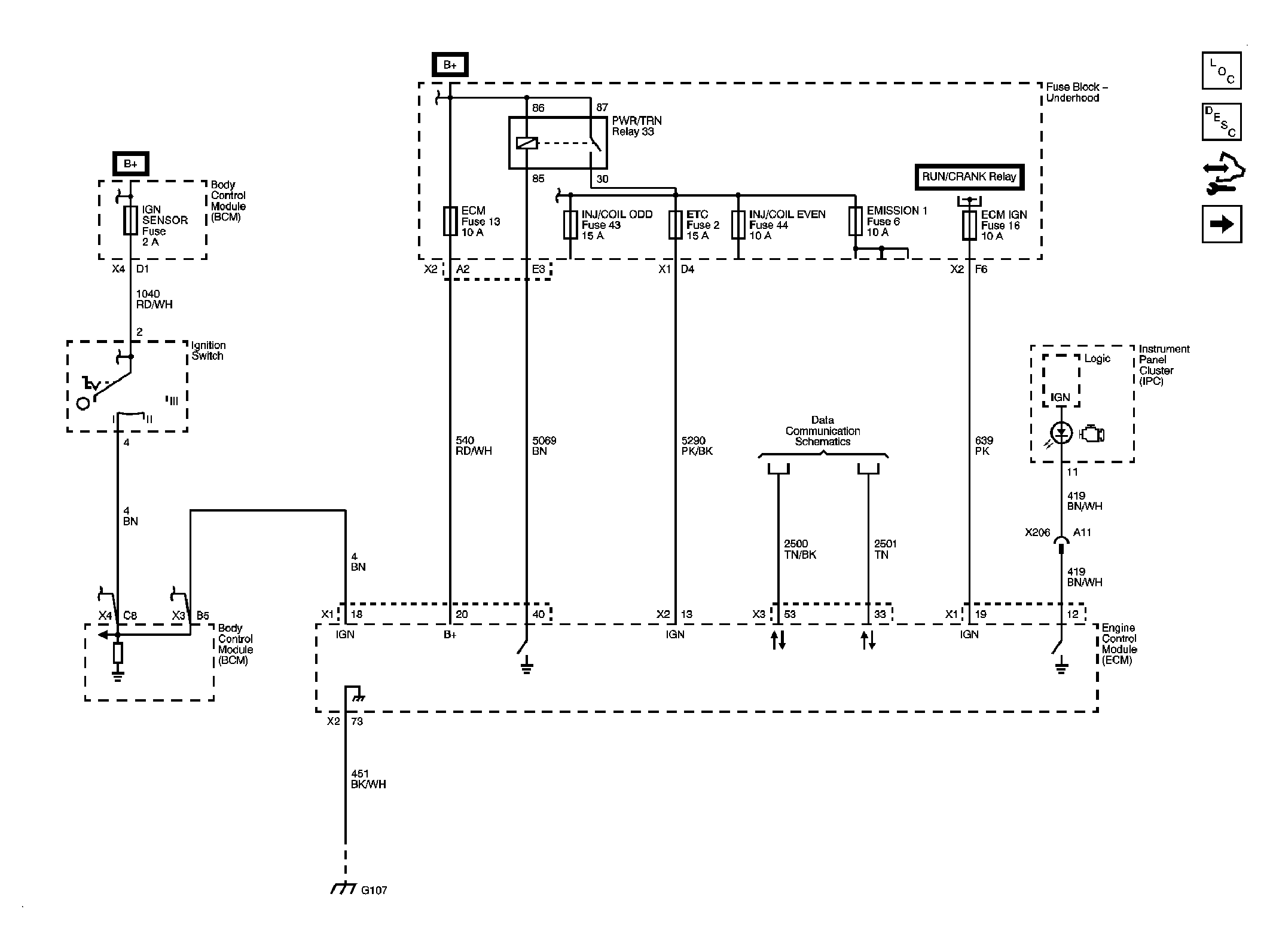

Fig 1: Module Power, Ground, Serial Data & MIL

Courtesy of GENERAL MOTORS CORP.

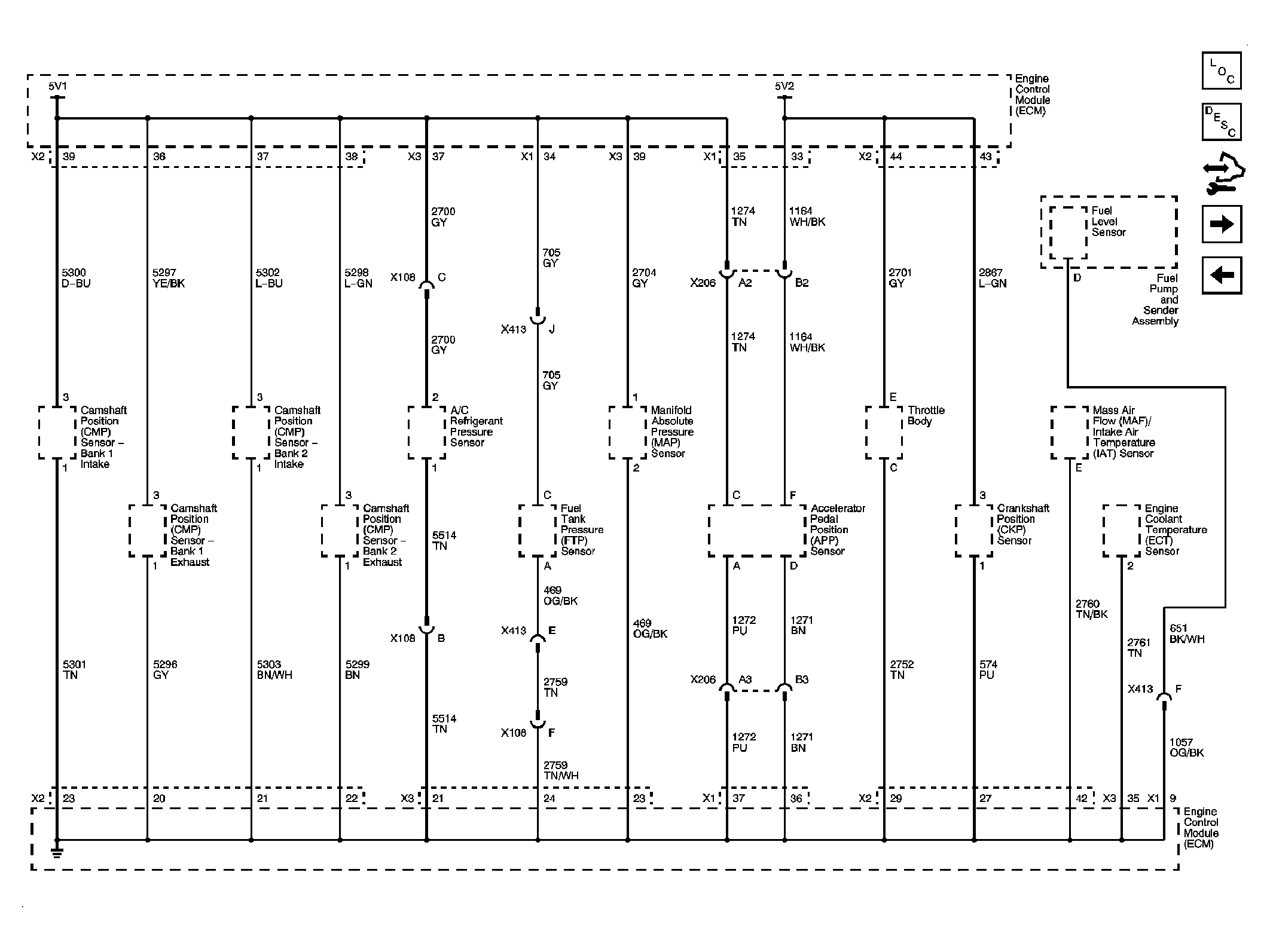

Fig 2: 5-Volt & Low References

Courtesy of GENERAL MOTORS CORP.

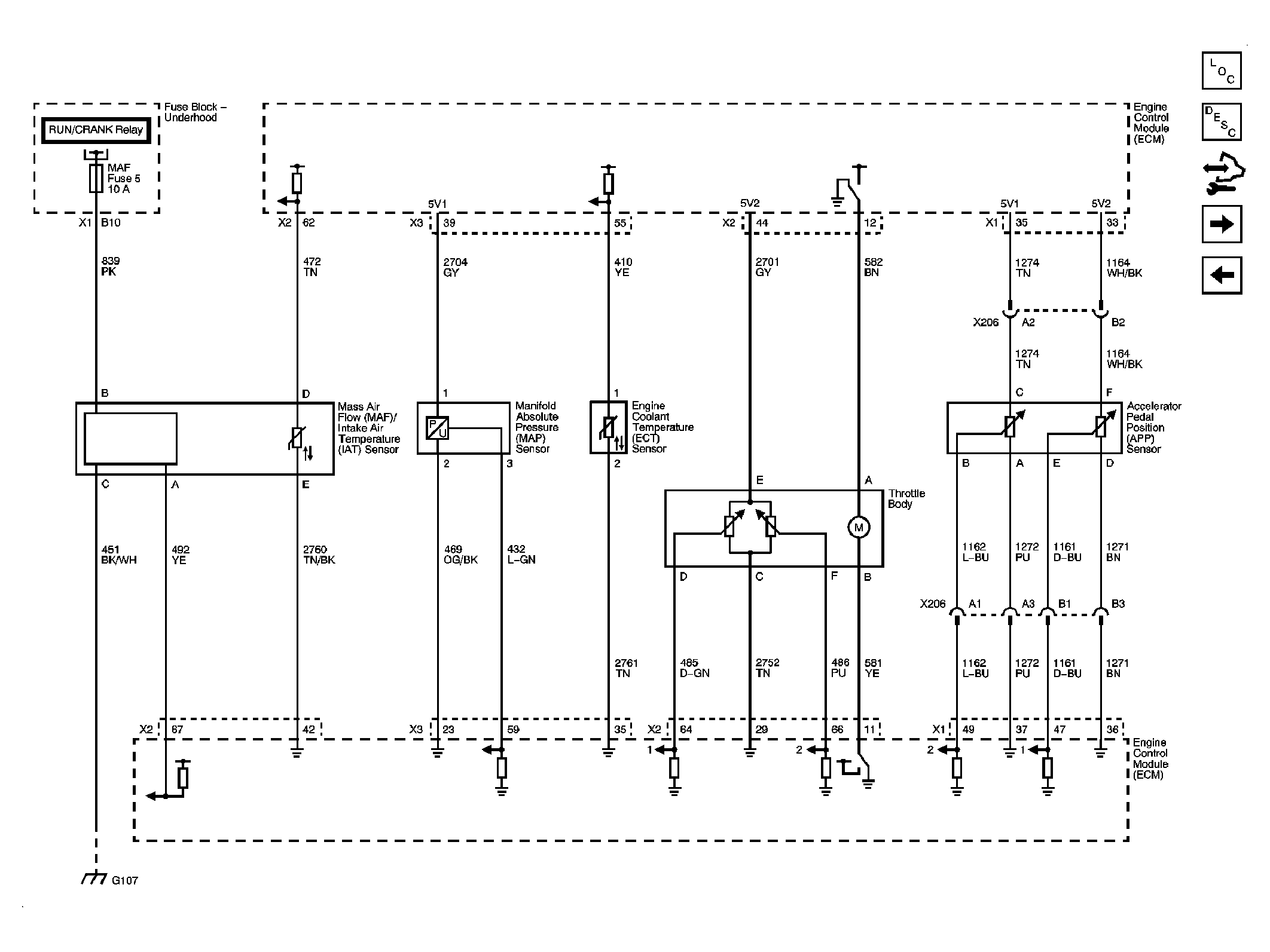

Fig 3: Engine Data Sensors - Pressure, Temperature & Throttle Control

Courtesy of GENERAL MOTORS CORP.

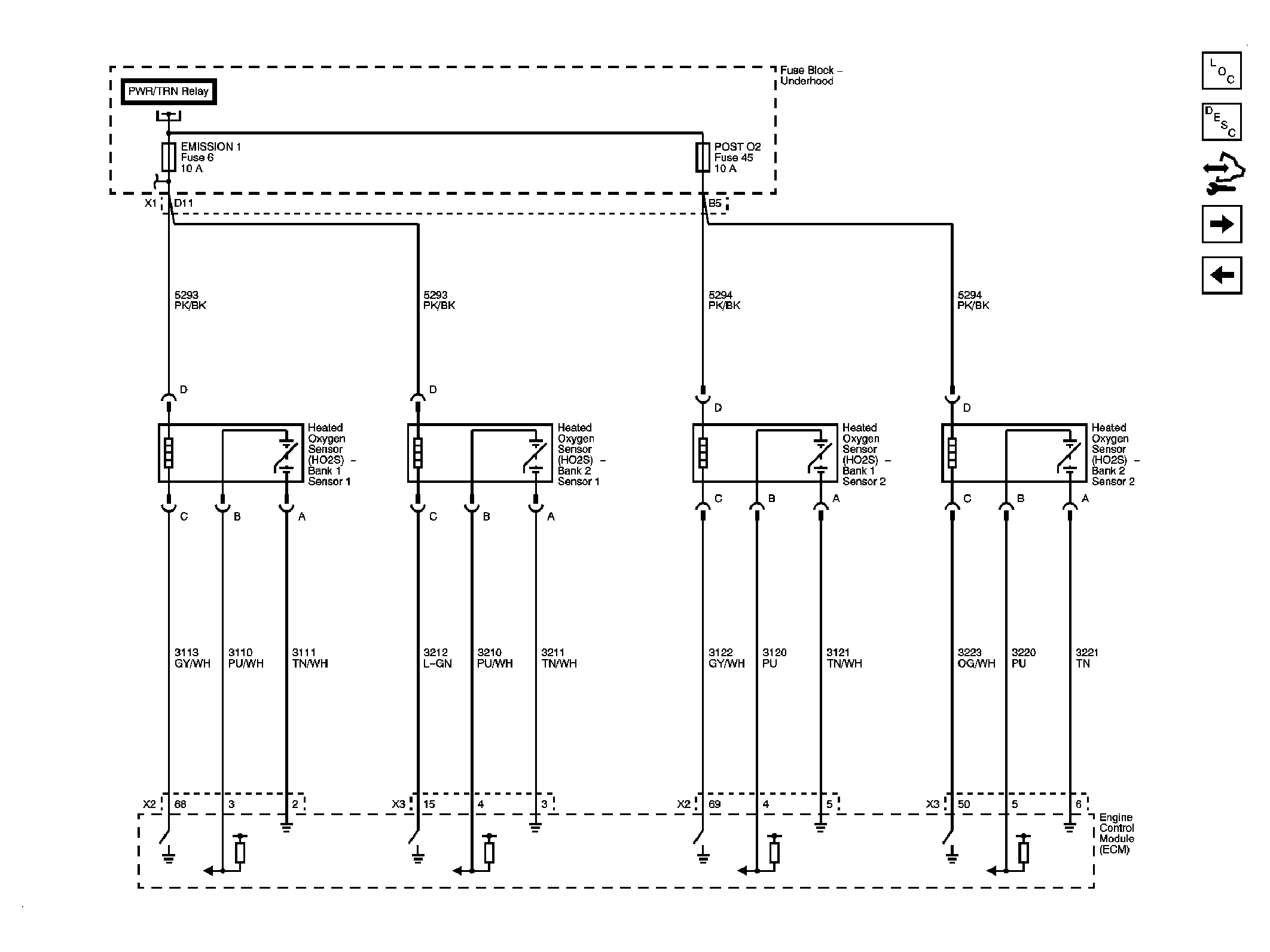

Fig 4: Engine Data Sensors - HO2S

Courtesy of GENERAL MOTORS CORP.

Fig 5: Ignition Controls - Ignition System Coils 1, 3 & 5

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition Controls - Ignition System Coils 2, 4 & 6

Courtesy of GENERAL MOTORS CORP.

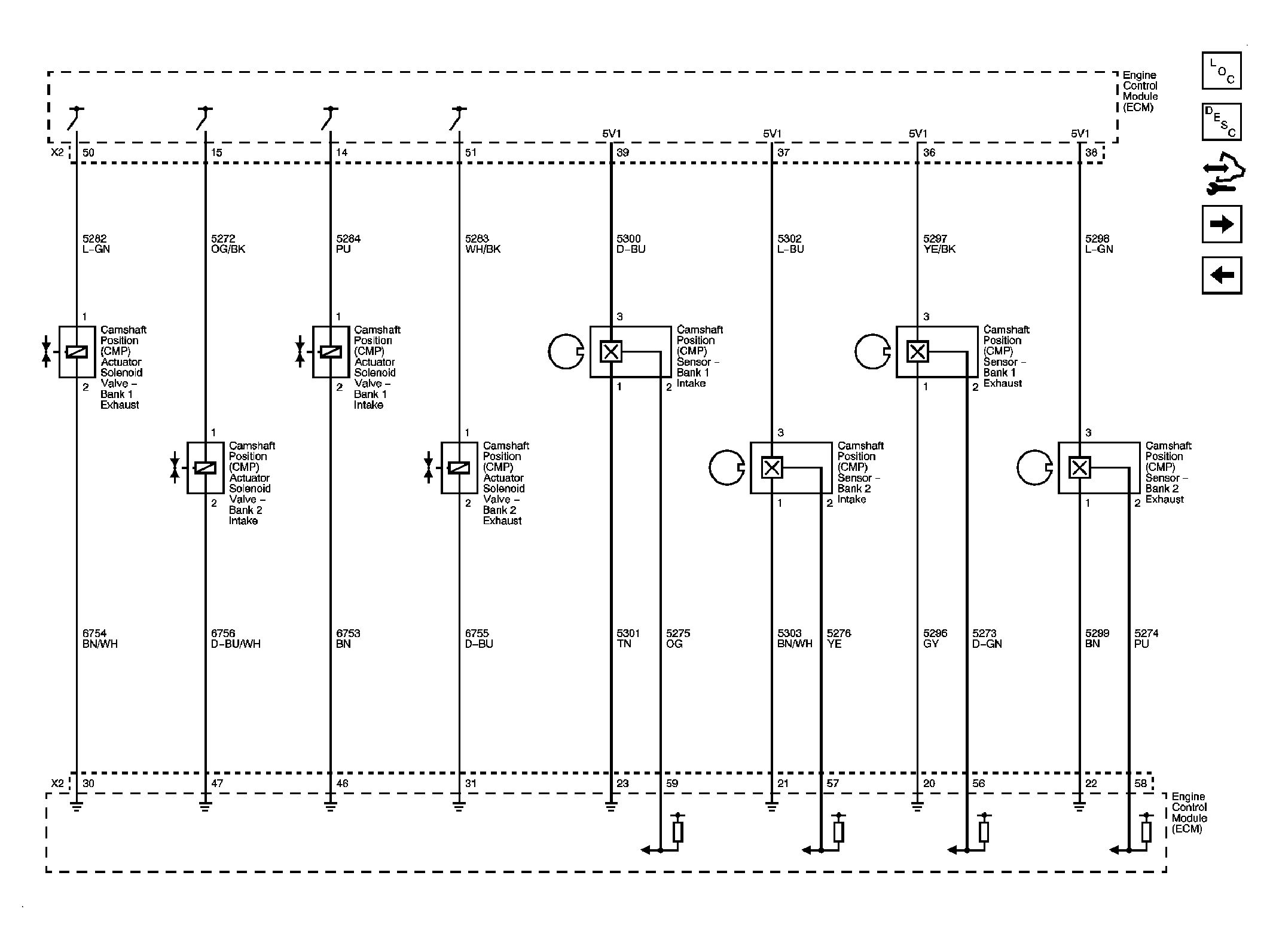

Fig 7: Ignition Controls - Camshaft Sensors/Actuators

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Controls - Crankshaft/Knock Sensors

Courtesy of GENERAL MOTORS CORP.

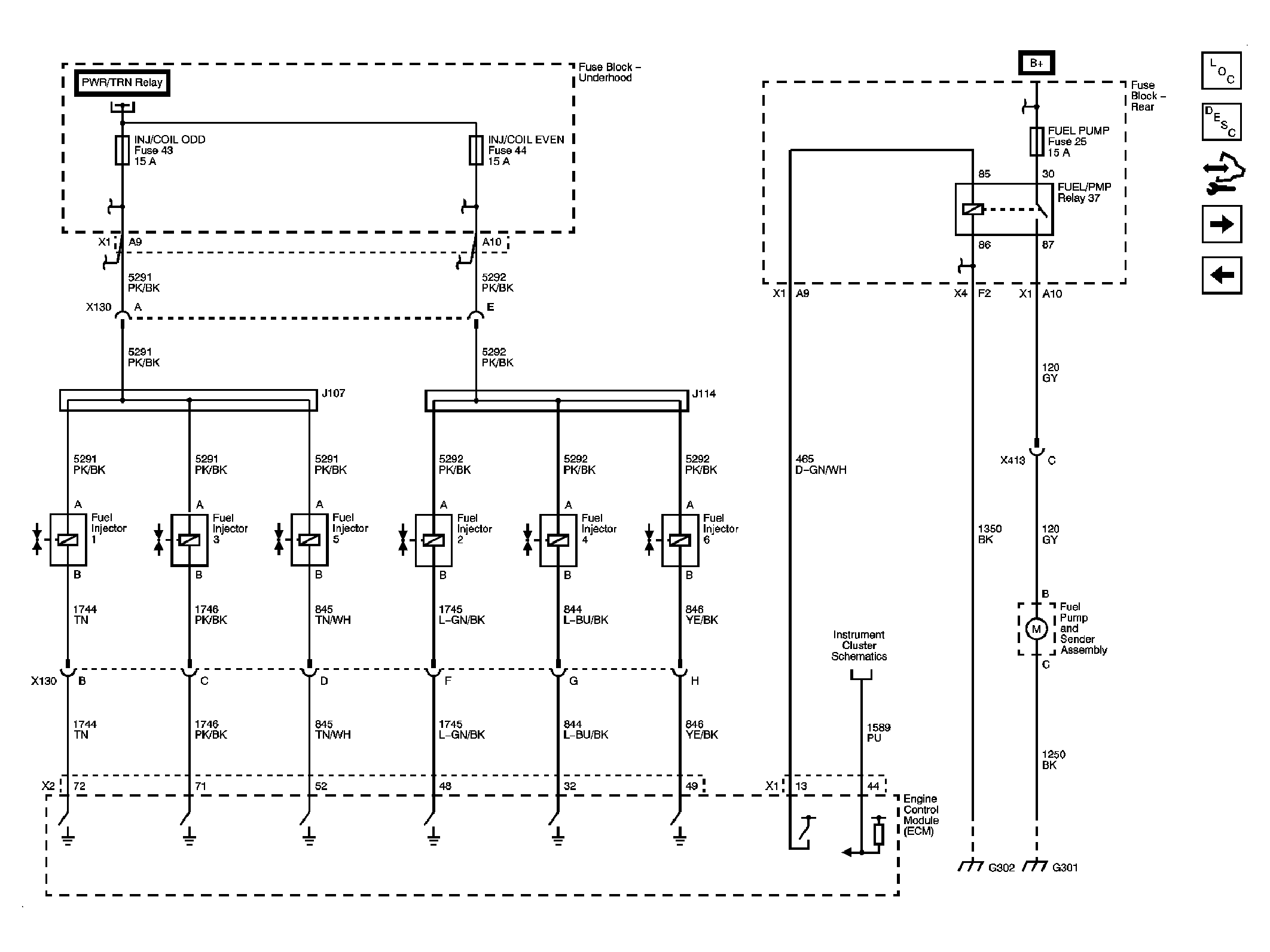

Fig 9: Fuel Controls - Fuel Injectors & Fuel Pump

Courtesy of GENERAL MOTORS CORP.

Fig 10: Fuel Controls - Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

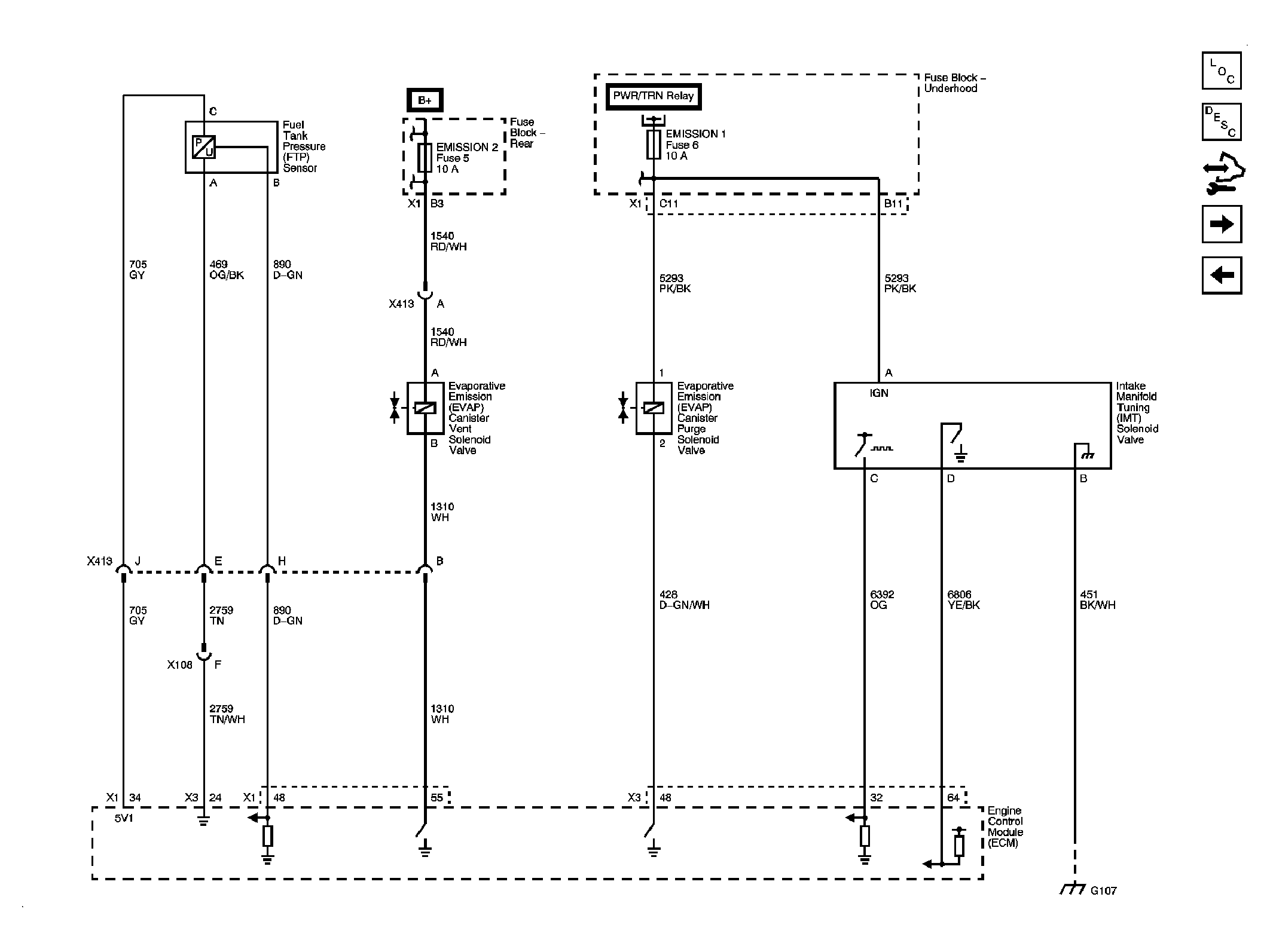

Fig 11: Monitored/Controlled Subsystem References

Courtesy of GENERAL MOTORS CORP.
