Garage Door Opener Replacement

WARNING: This page is about a different car, the 2008 Saturn Aura. However, it is still accessible from the selected car via links, so may be relevant.

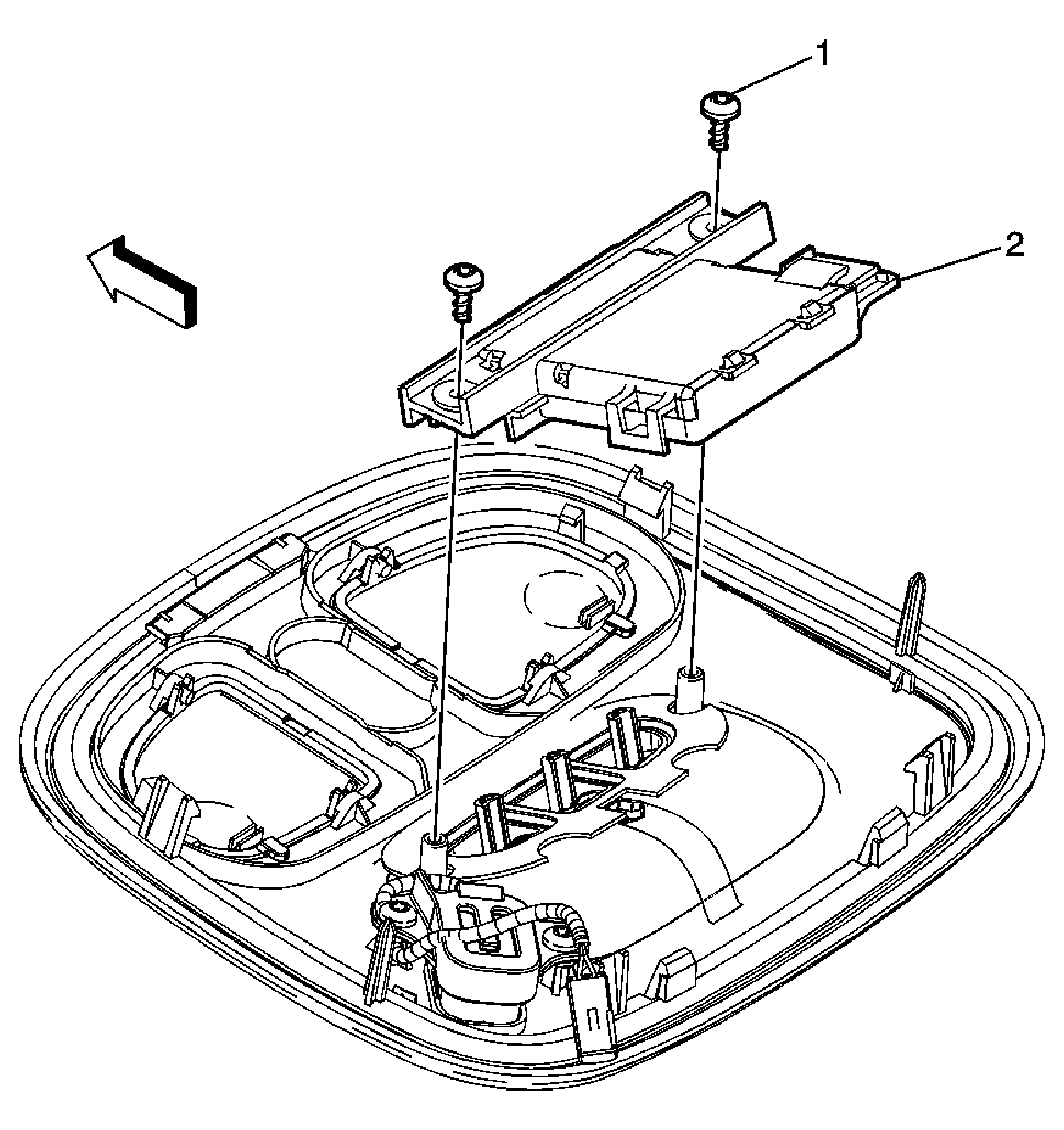

Fig 1: View Of Garage Door Opener Transmitter Assembly & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Lower the overhead console enough to access the garage door opener. Refer to Roof Console Replacement .
1	Garage Door Opener Transmitter Screws (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Garage Door Opener Transmitter Assembly Tip: Disconnect the electrical connector. Program the garage door opener after replacement. Refer to Control Module References .
