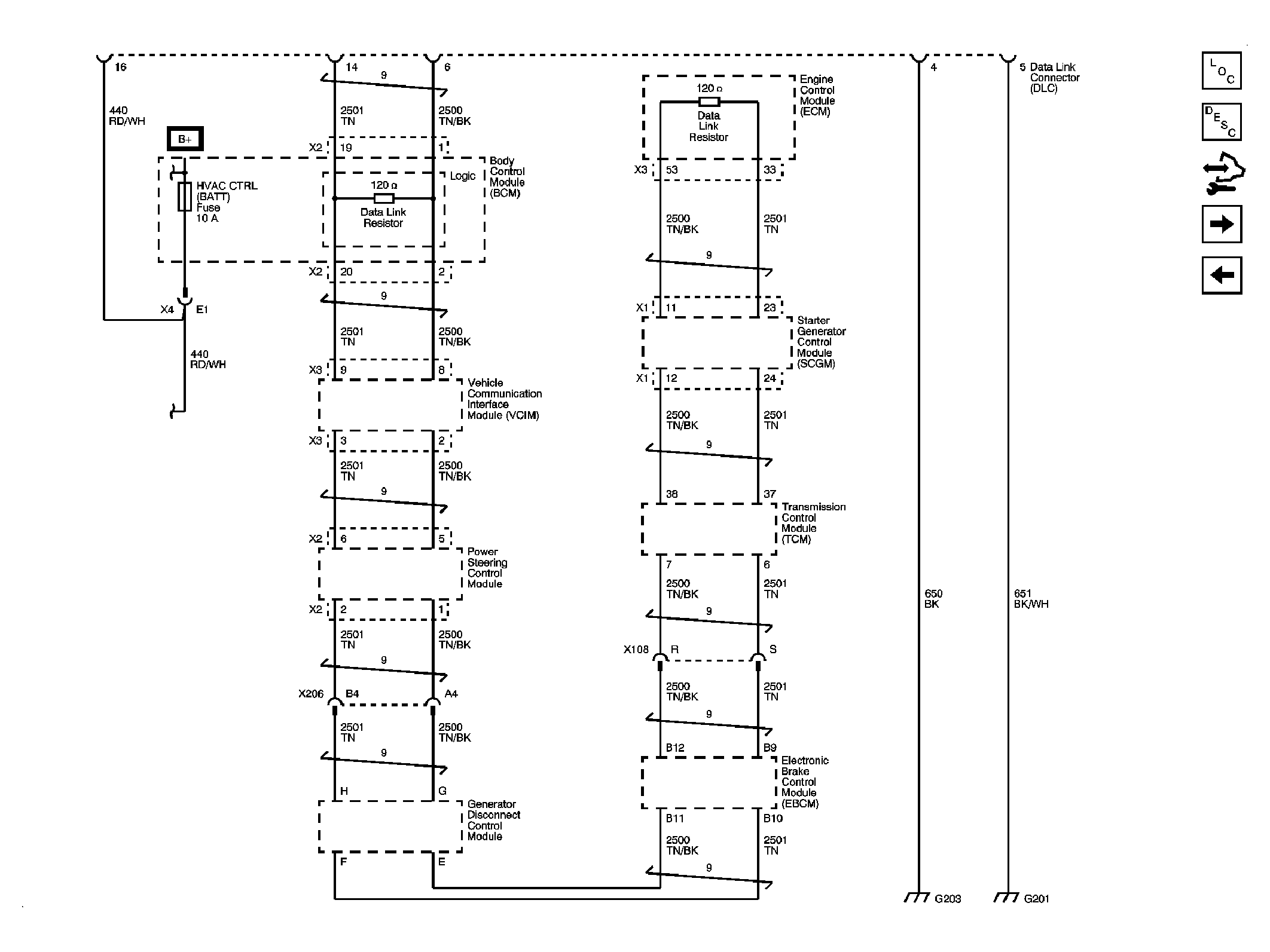

Fig 1: Power, Ground and High Speed Serial Data (w/o HP7) Schematic
Courtesy of GENERAL MOTORS CORP.

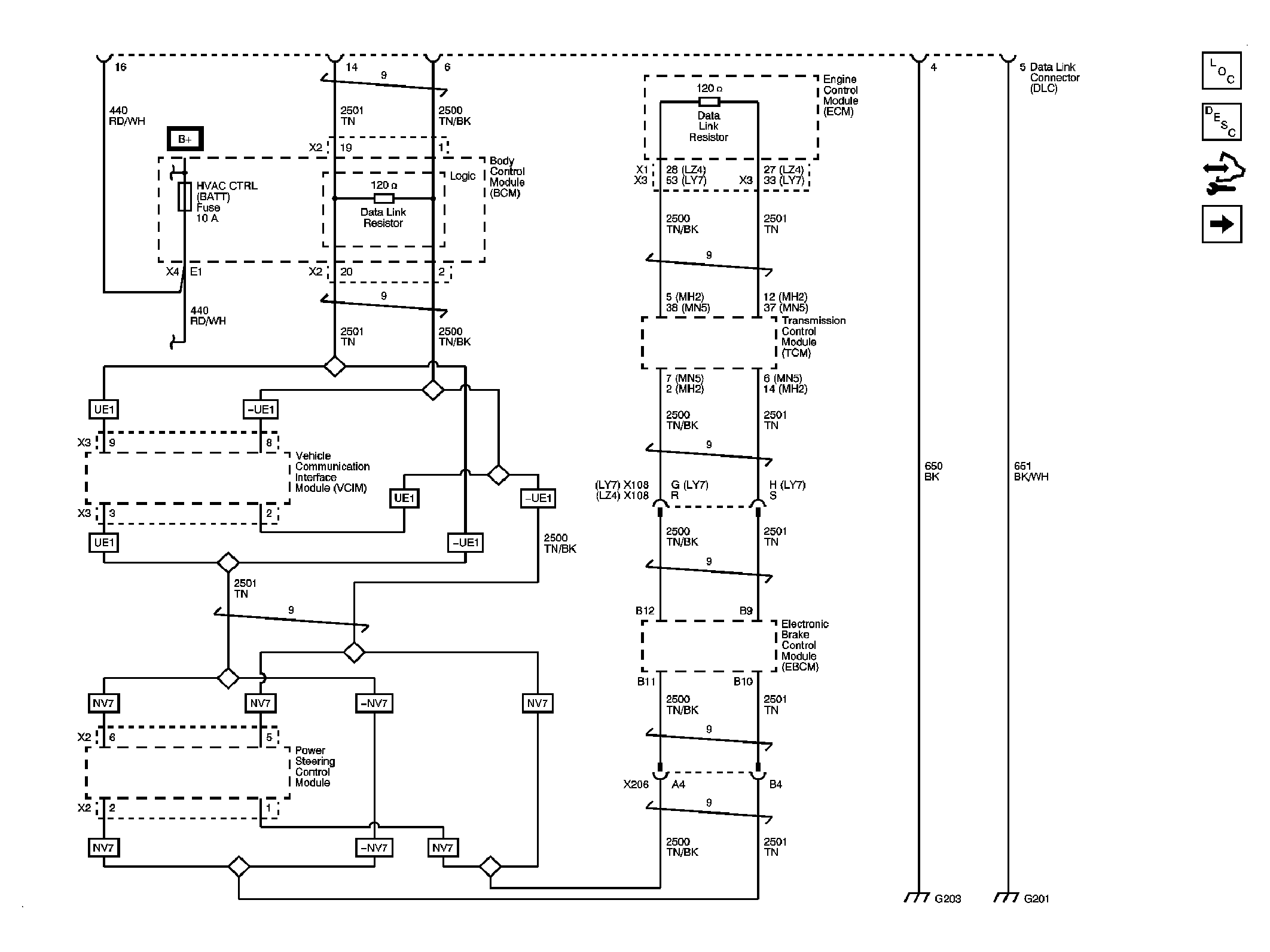

Fig 2: Power, Ground and High Speed Serial Data (HP7) Schematic
