Rear Seat Audio Control Replacement

WARNING: This page is about a different car, the 2008 Saturn Aura. However, it is still accessible from the selected car via links, so may be relevant.

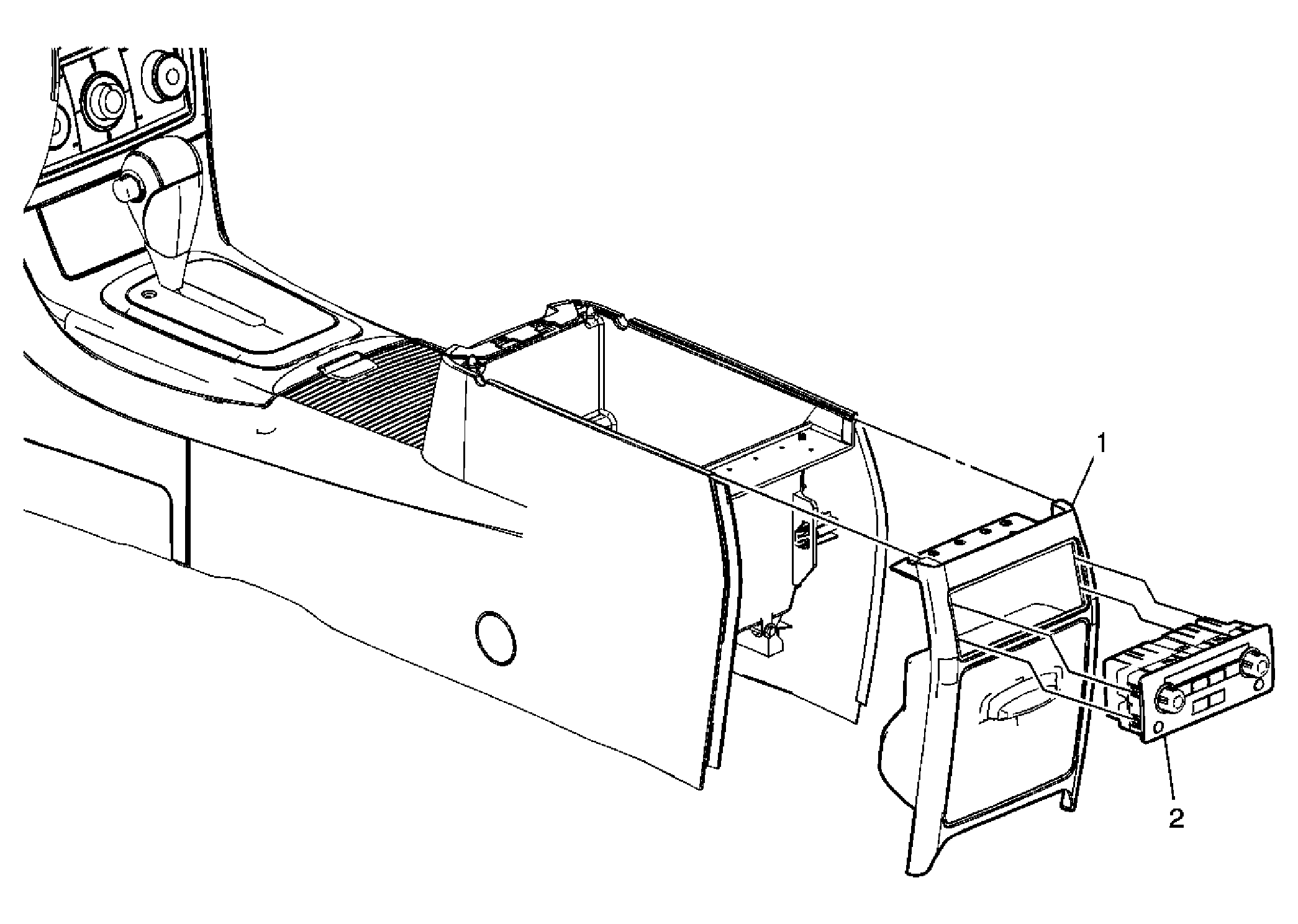

Fig 1: View Of Rear Seat Audio Control

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Console Rear Trim Plate Assembly Refer to Console Rear Trim Plate Replacement .
2	Rear Radio Control Assembly Tip: Disconnect the electrical connectors. Press in on the tabs of the rear radio control to release from the inside of the console rear trim plate.
