Mobile Telephone Microphone Replacement

WARNING: This page is about a different car, the 2008 Saturn Aura. However, it is still accessible from the selected car via links, so may be relevant.

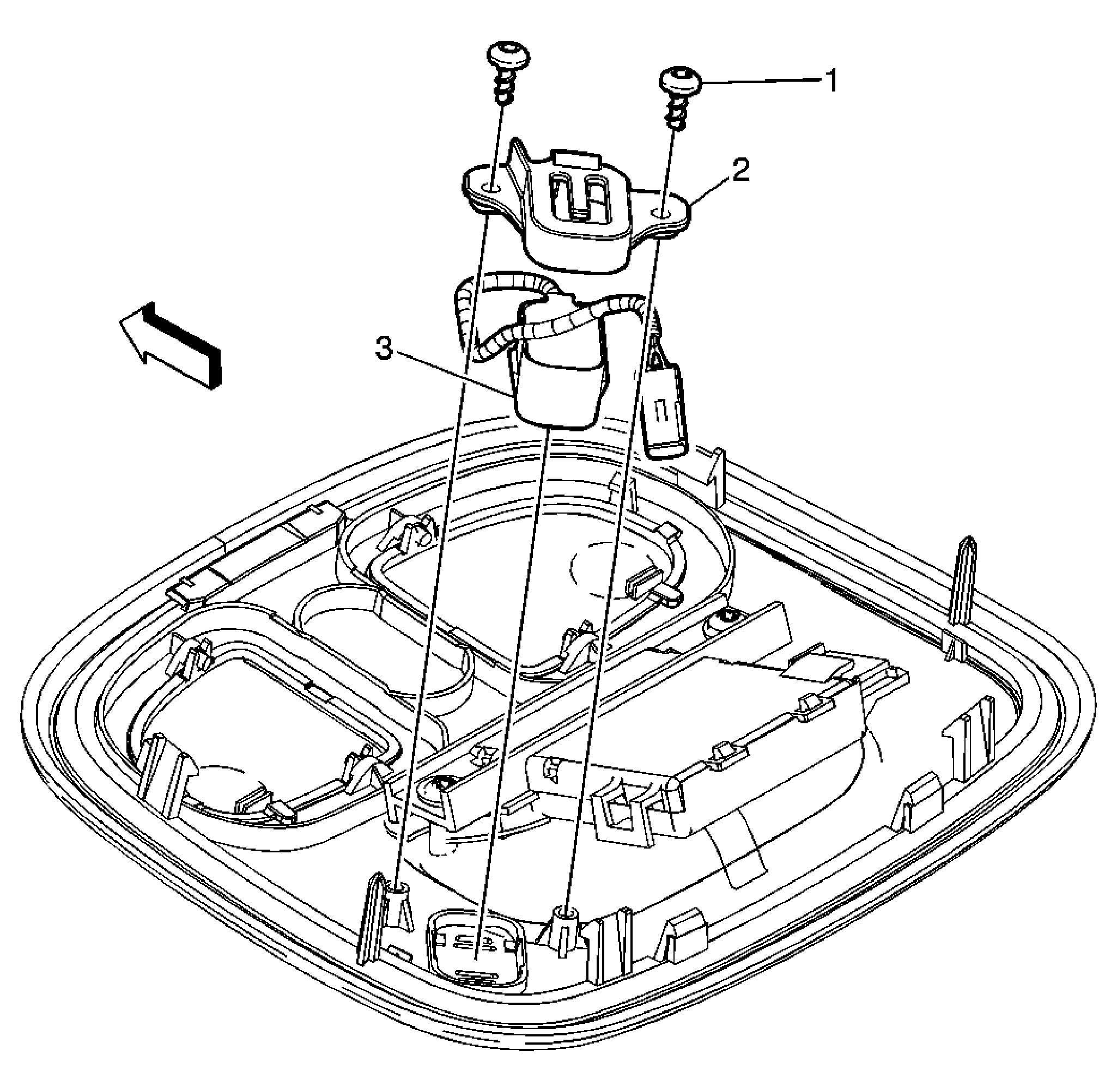

Fig 1: View Of Mobile Telephone Microphone Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the overhead console. Refer to Roof Console Replacement .
1	Mobile Telephone Microphone Bracket Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten:: 2 N.m (18 lb in)
2	Mobile Telephone Microphone Bracket
3	Mobile Telephone Microphone Assembly
