Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2008 Saturn Aura. However, it is still accessible from the selected car via links, so may be relevant.

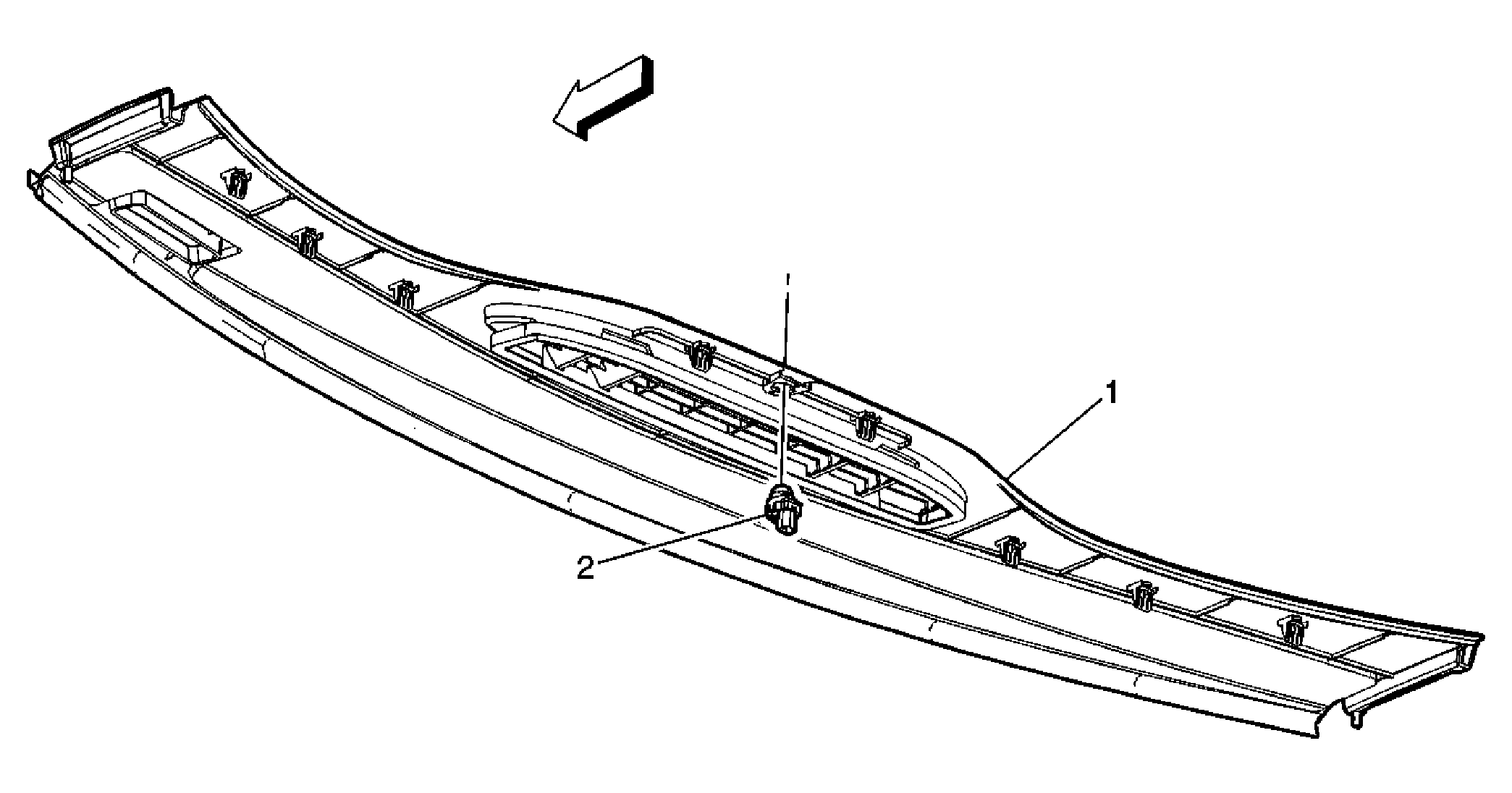

Fig 1: Ambient Light Sensor Components
GM1822934Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Upper Trim Panel
Refer to Instrument Panel Upper Trim Panel Replacement .
2 Headlamp Auto Control Ambient Light Sensor Assembly
Tip:
  1. Twist and pull down to remove.
  2. Disconnect electrical connector.
