Fuel Tank Pressure Sensor Replacement (NU6)

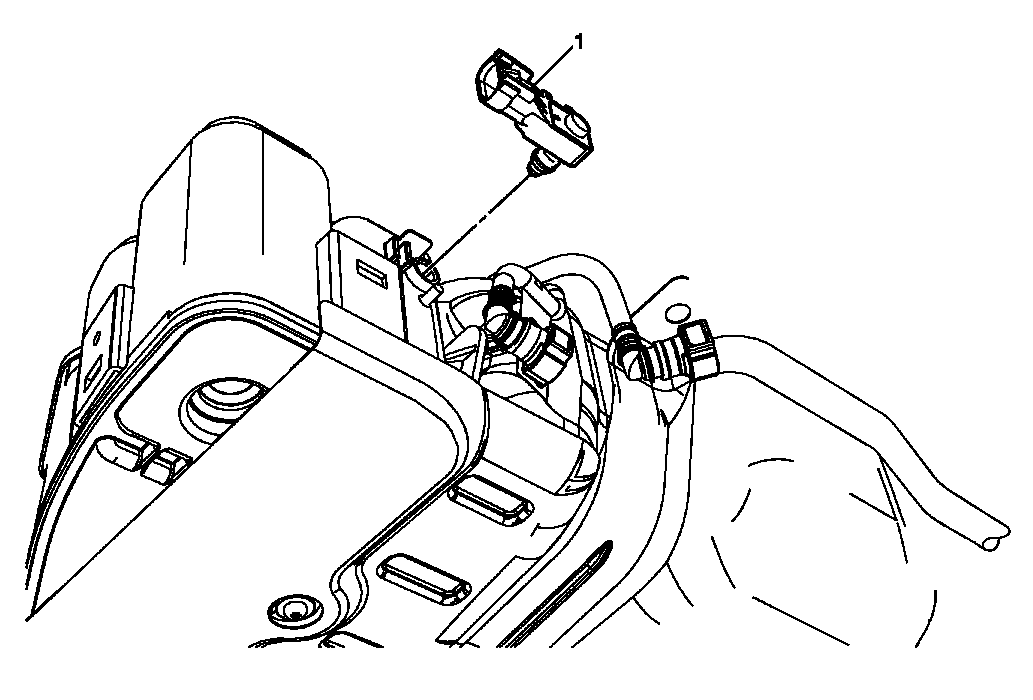

Fig 1: Identifying Fuel Tank Pressure Sensor (NU6)
GM2042195Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the fuel tank. Refer to Fuel Tank Replacement .
1 Fuel Pressure Sensor
Procedure:
Disconnect the electrical connector.
