Body Control System Schematics

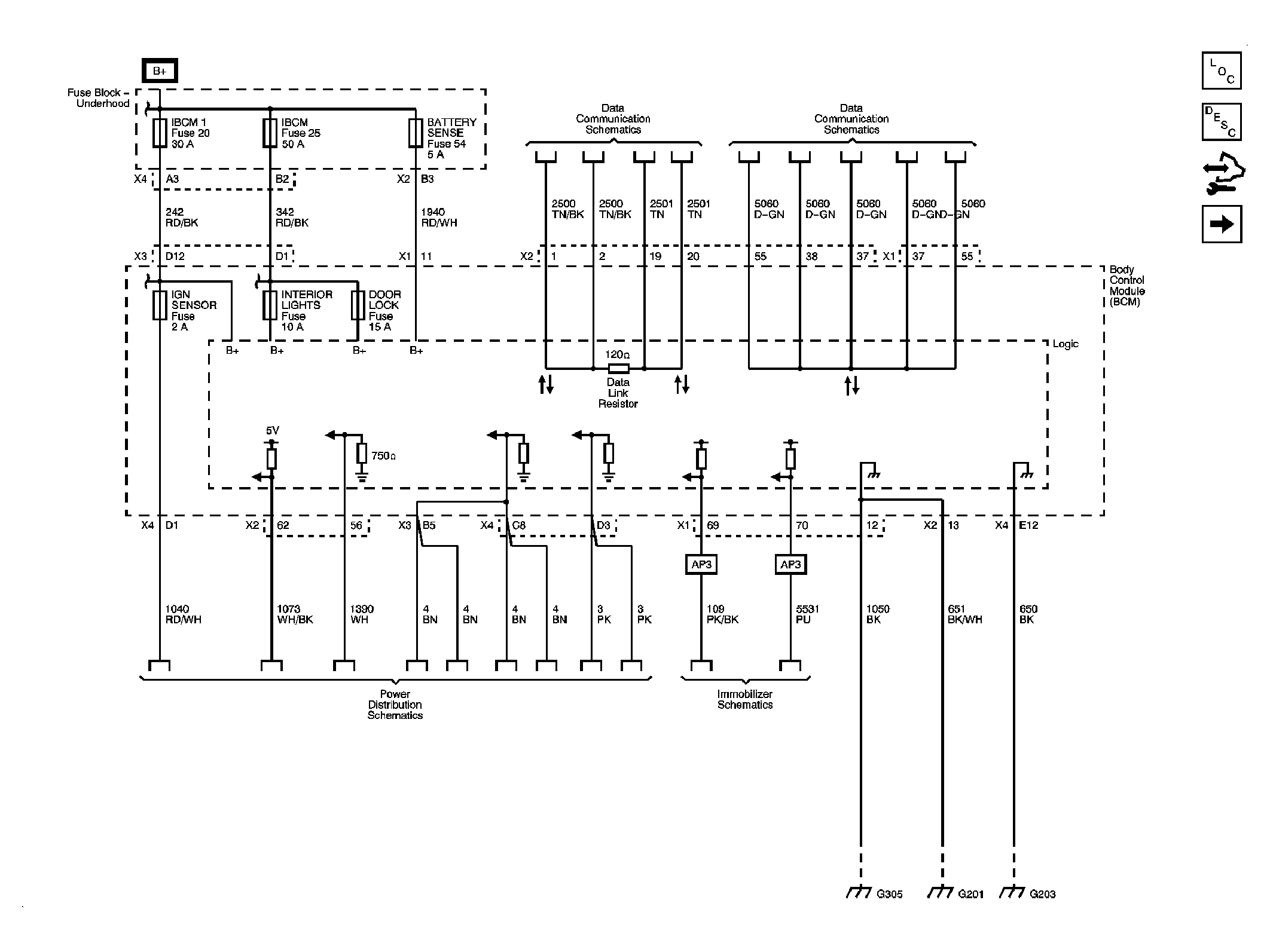

Fig 1: Power, Ground & Serial Data
Courtesy of GENERAL MOTORS CORP.

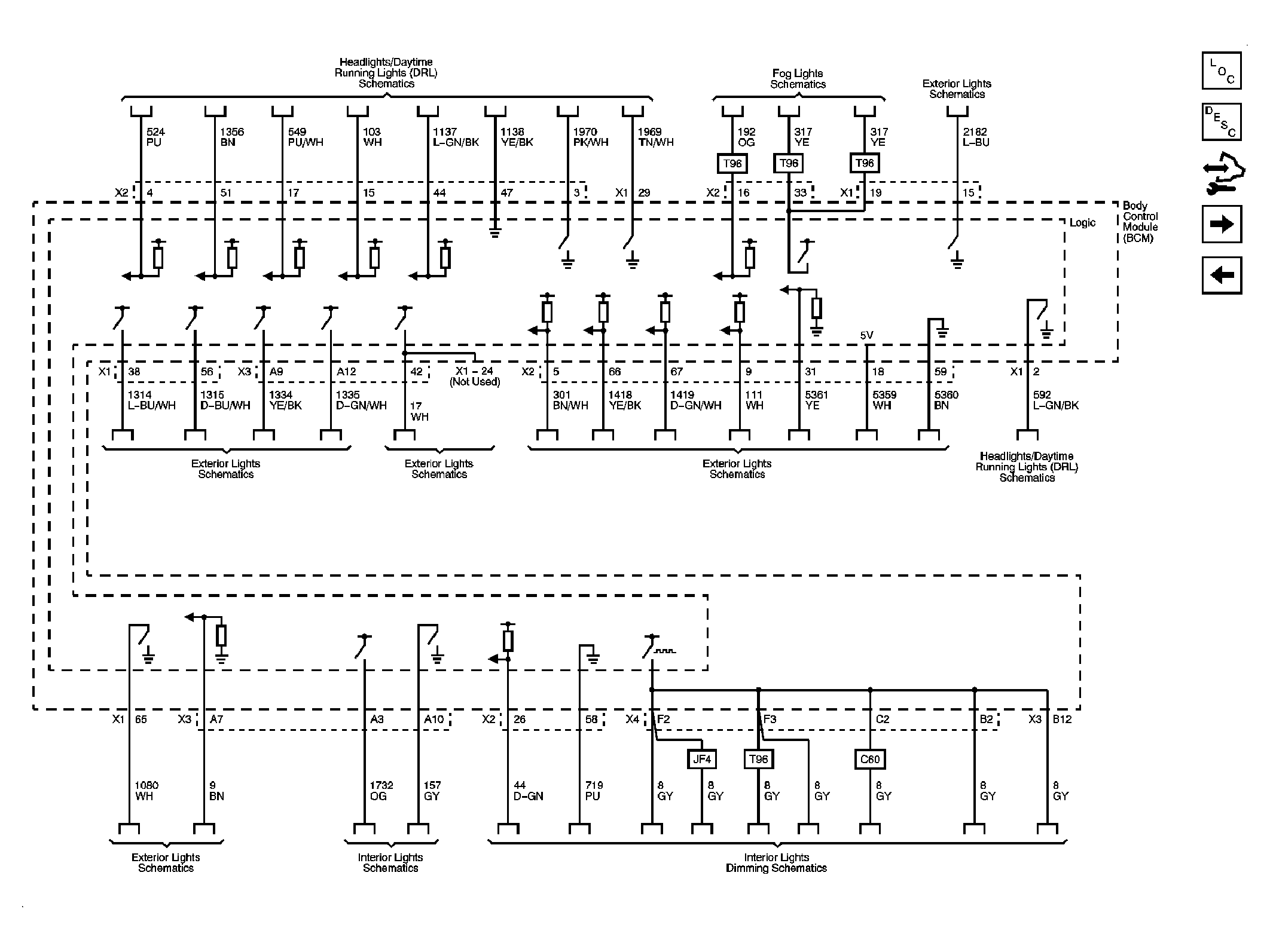

Fig 2: Controlled/Monitored Subsystem References (1 of 4)
Courtesy of GENERAL MOTORS CORP.

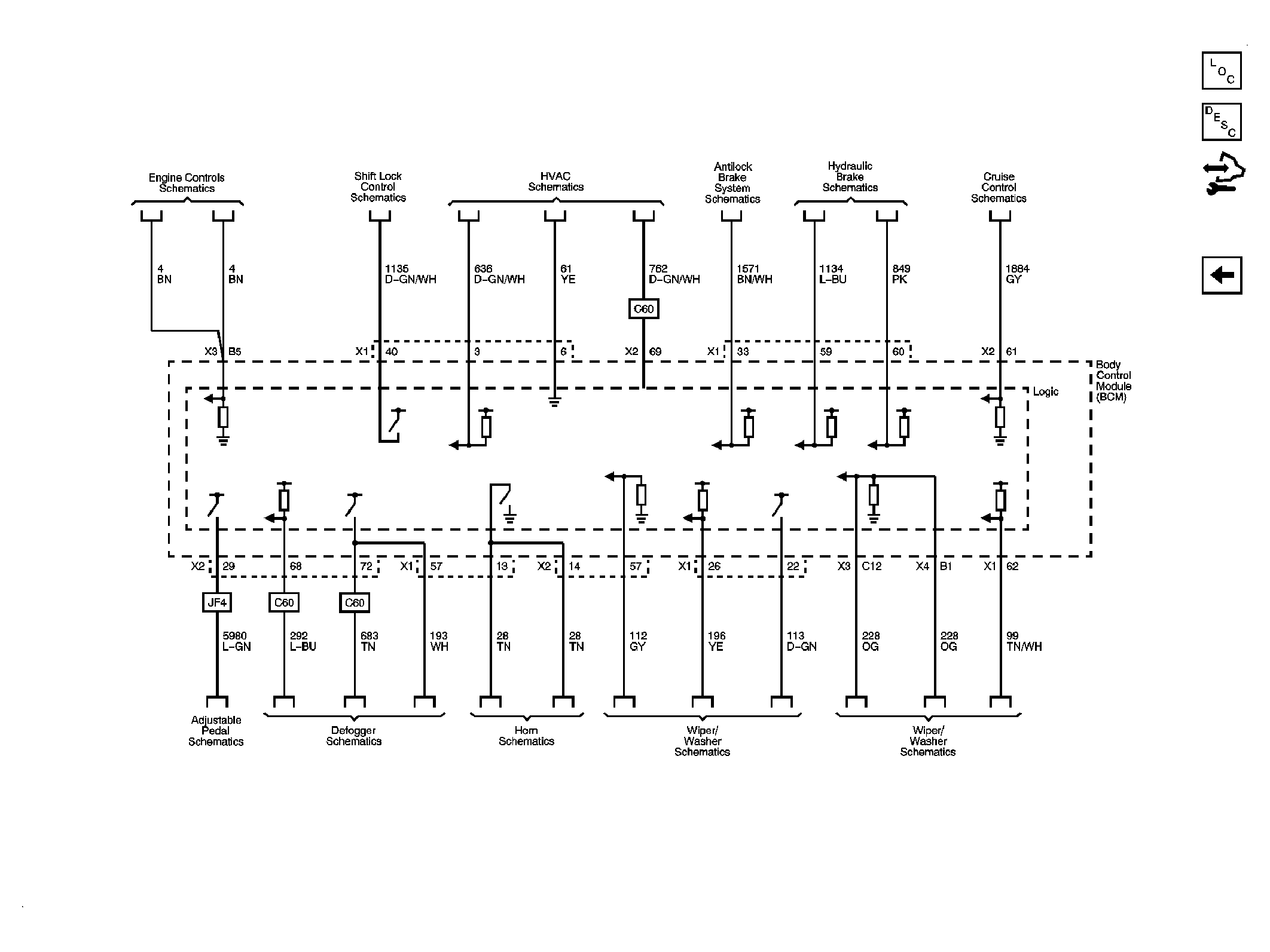

Fig 3: Controlled/Monitored Subsystem References (2 of 4)
Courtesy of GENERAL MOTORS CORP.

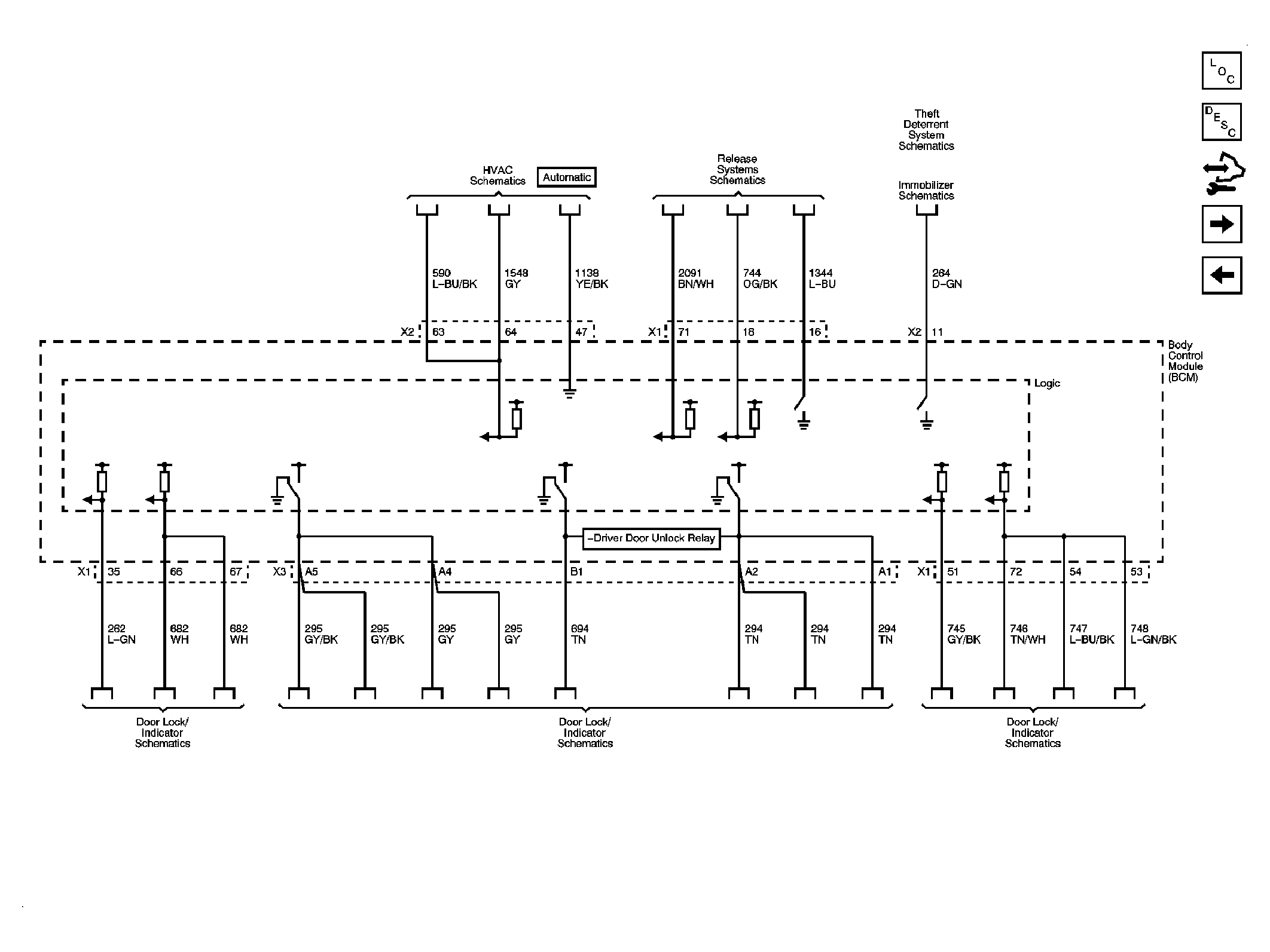

Fig 4: Controlled/Monitored Subsystem References (3 of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Controlled/Monitored Subsystem References (4 of 4)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
