Power Distribution Schematics

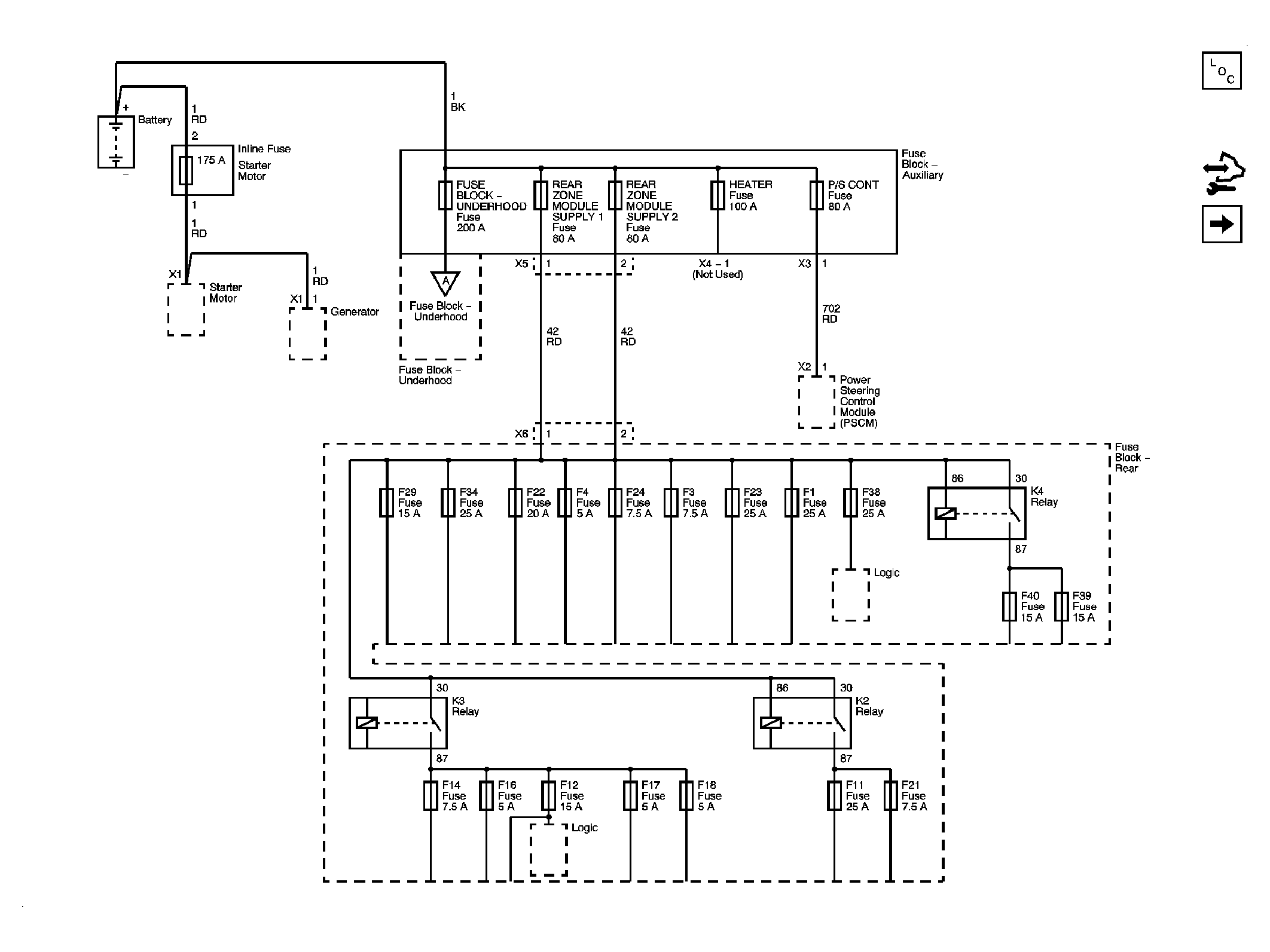

Fig 1: B+ Bus 1 of 2

Courtesy of GENERAL MOTORS CORP.

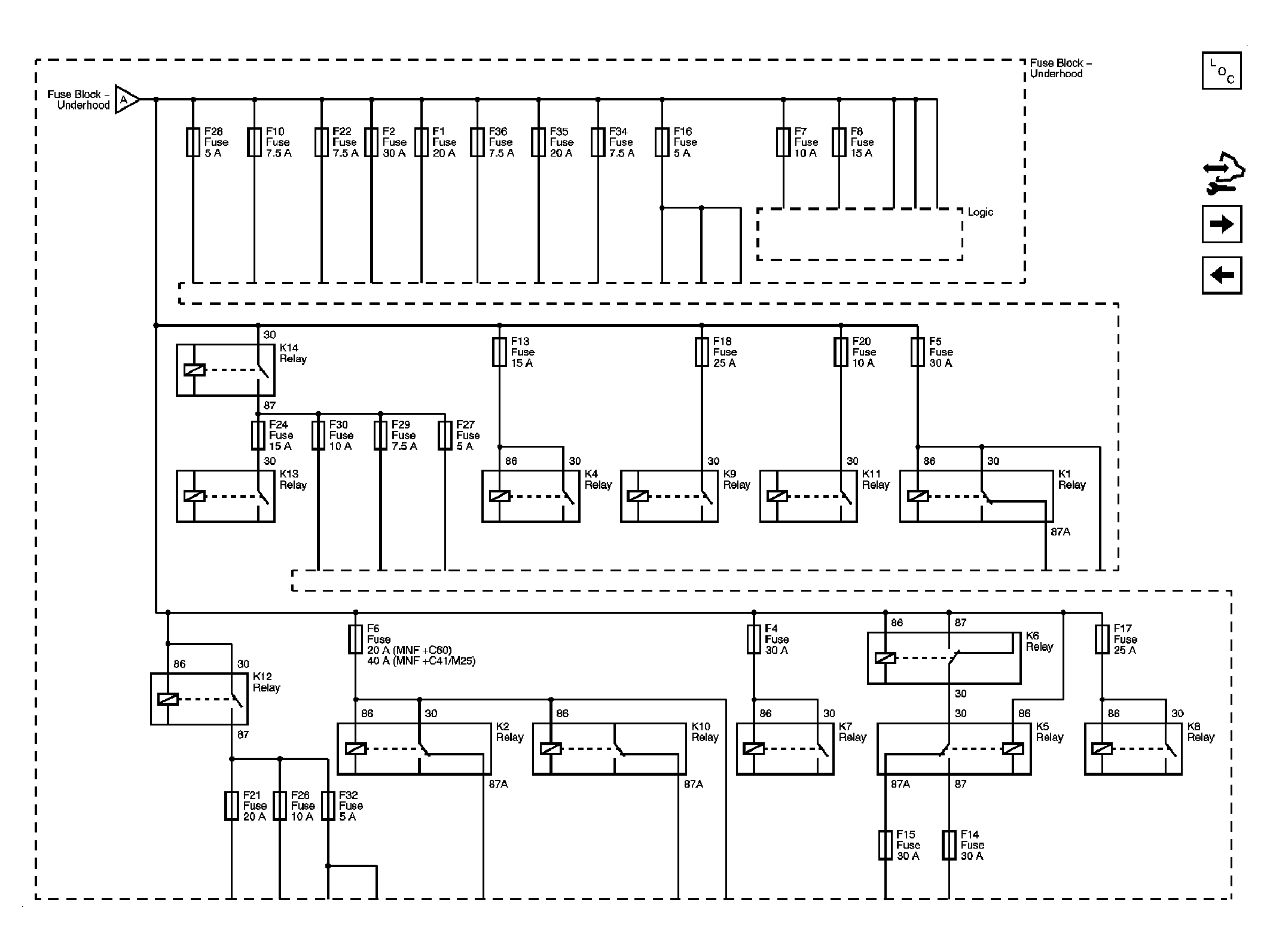

Fig 2: B+ Bus 2 of 2

Courtesy of GENERAL MOTORS CORP.

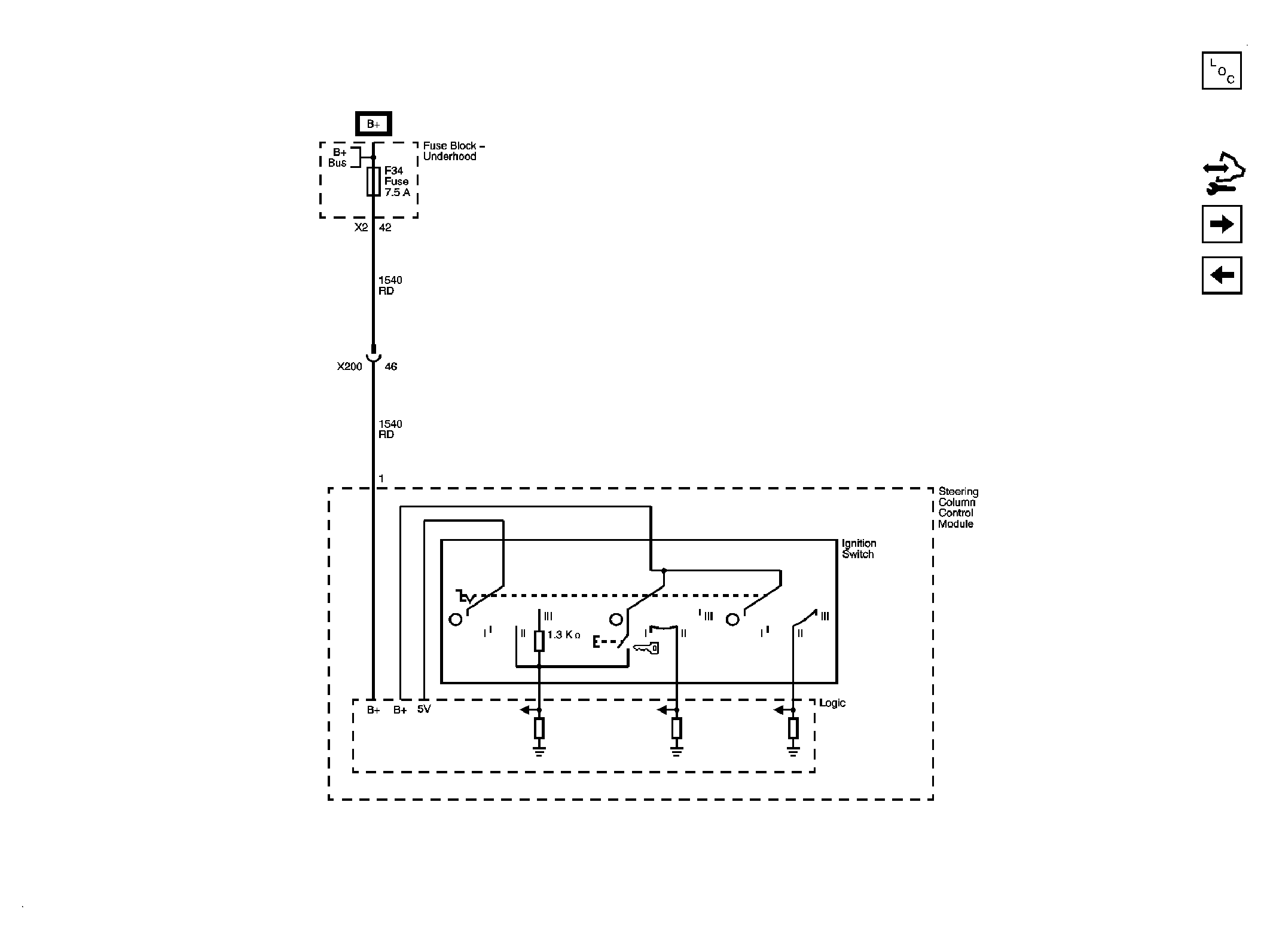

Fig 3: Fuse Block - Underhood, F34 Fuse and Ignition Switch

Courtesy of GENERAL MOTORS CORP.

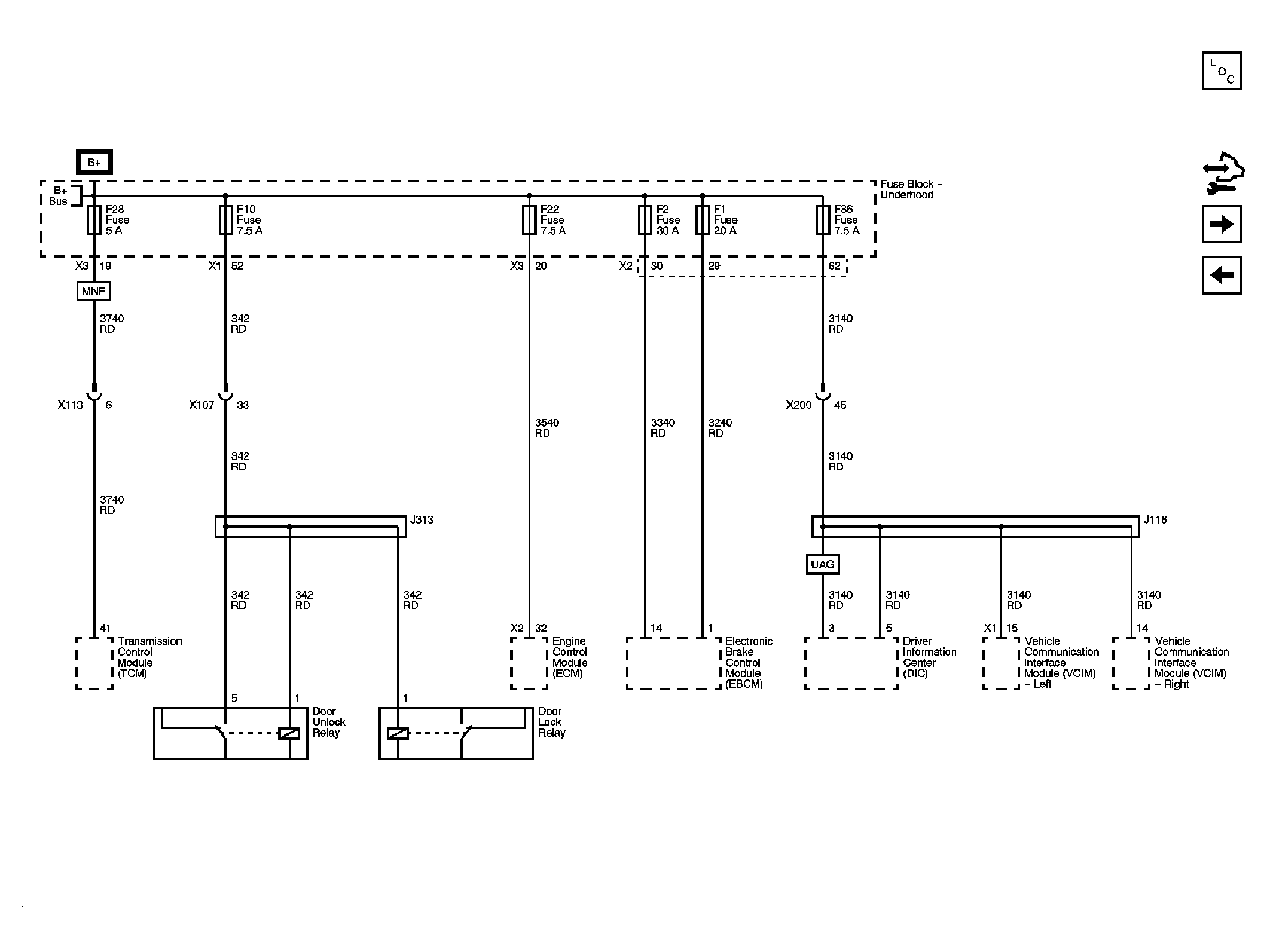

Fig 4: Fuse Block - Underhood, F28, F10, F22, F2, F1, and F36 Fuses

Courtesy of GENERAL MOTORS CORP.

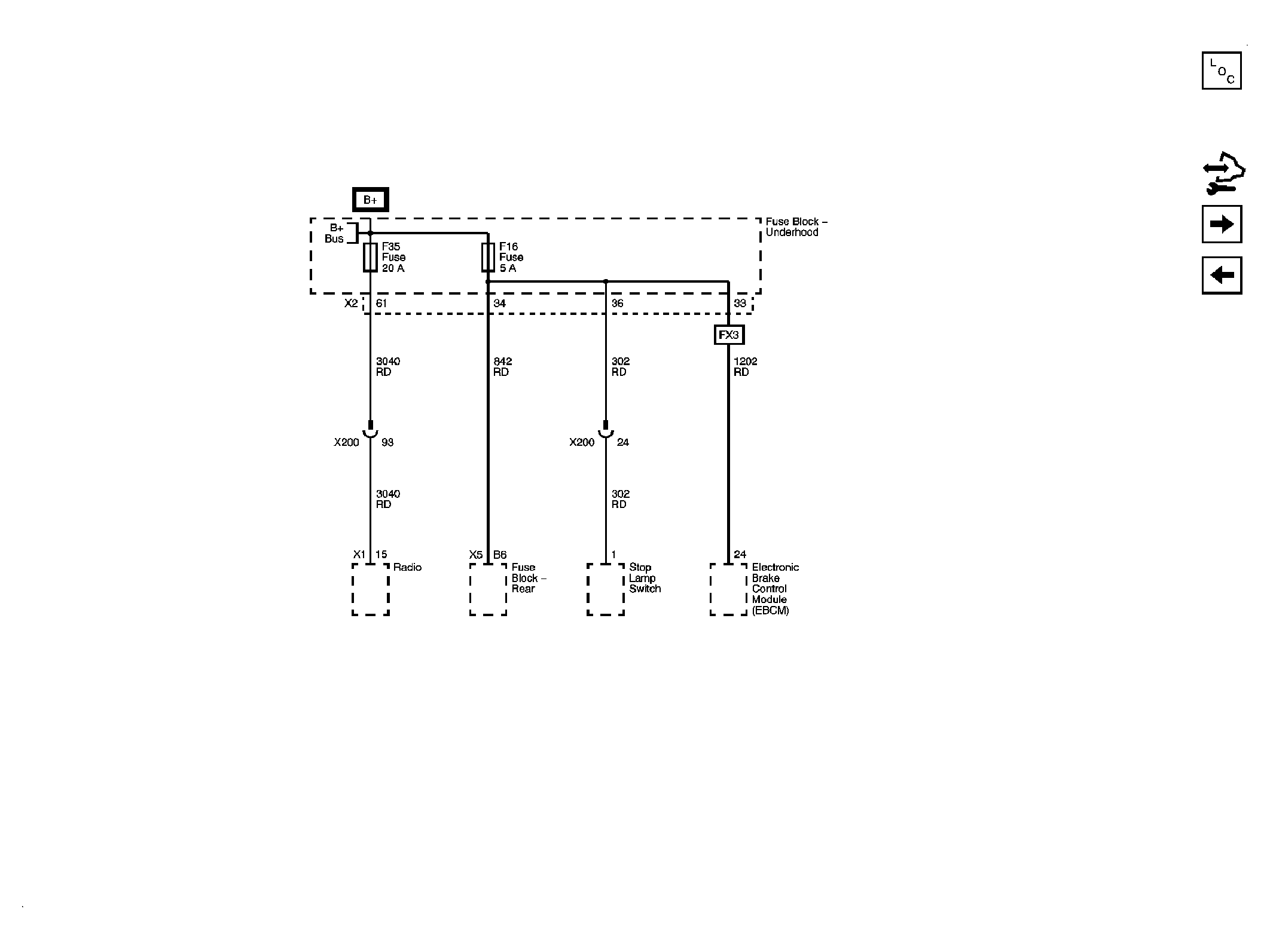

Fig 5: Fuse Block - Underhood, F35 and F16 Fuses

Courtesy of GENERAL MOTORS CORP.

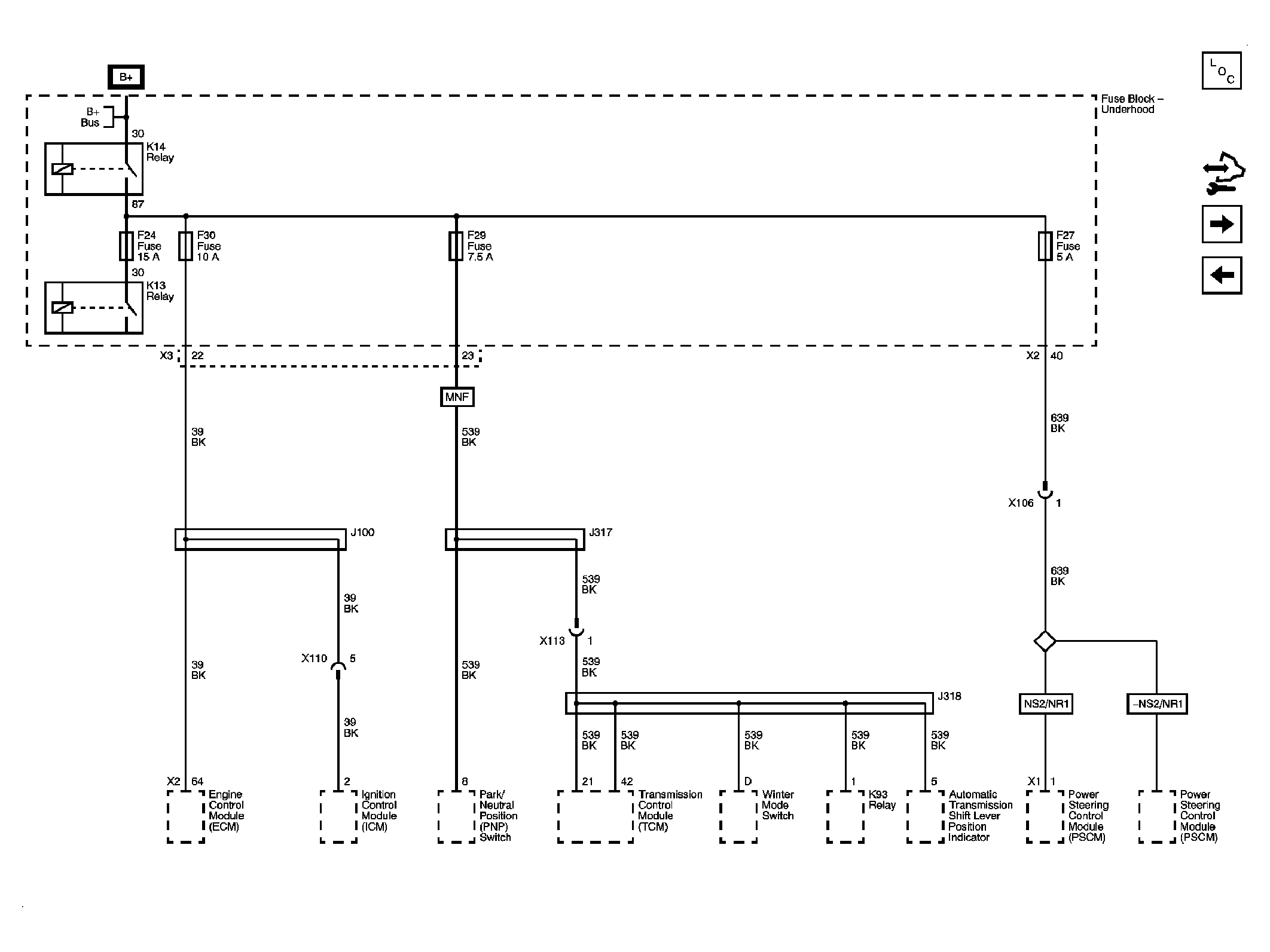

Fig 6: Fuse Block - Underhood, F24, F30, F29, and F27 Fuses

Courtesy of GENERAL MOTORS CORP.

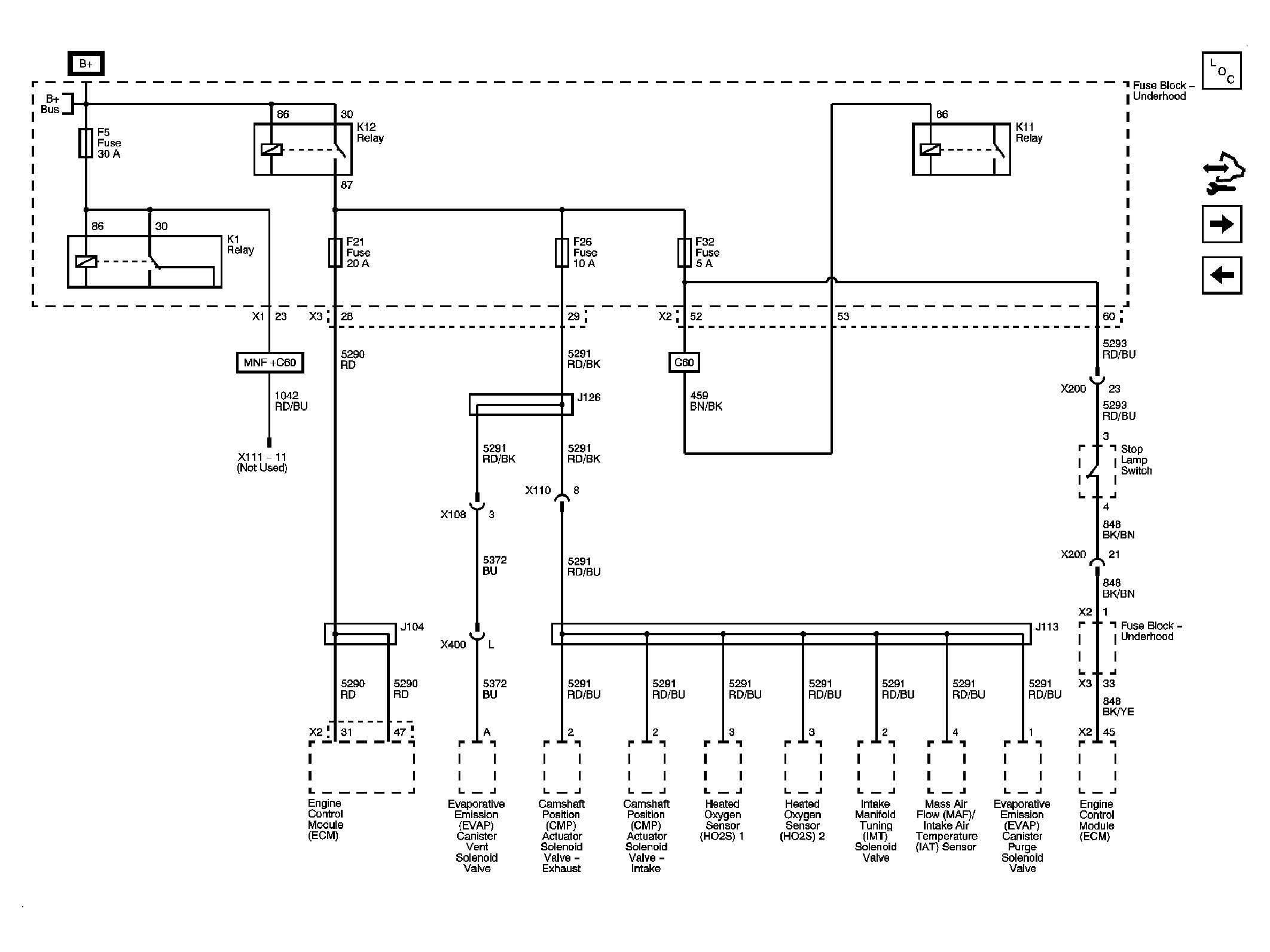

Fig 7: Fuse Block - Underhood, F5, F21, F26, and F32 Fuses

Courtesy of GENERAL MOTORS CORP.

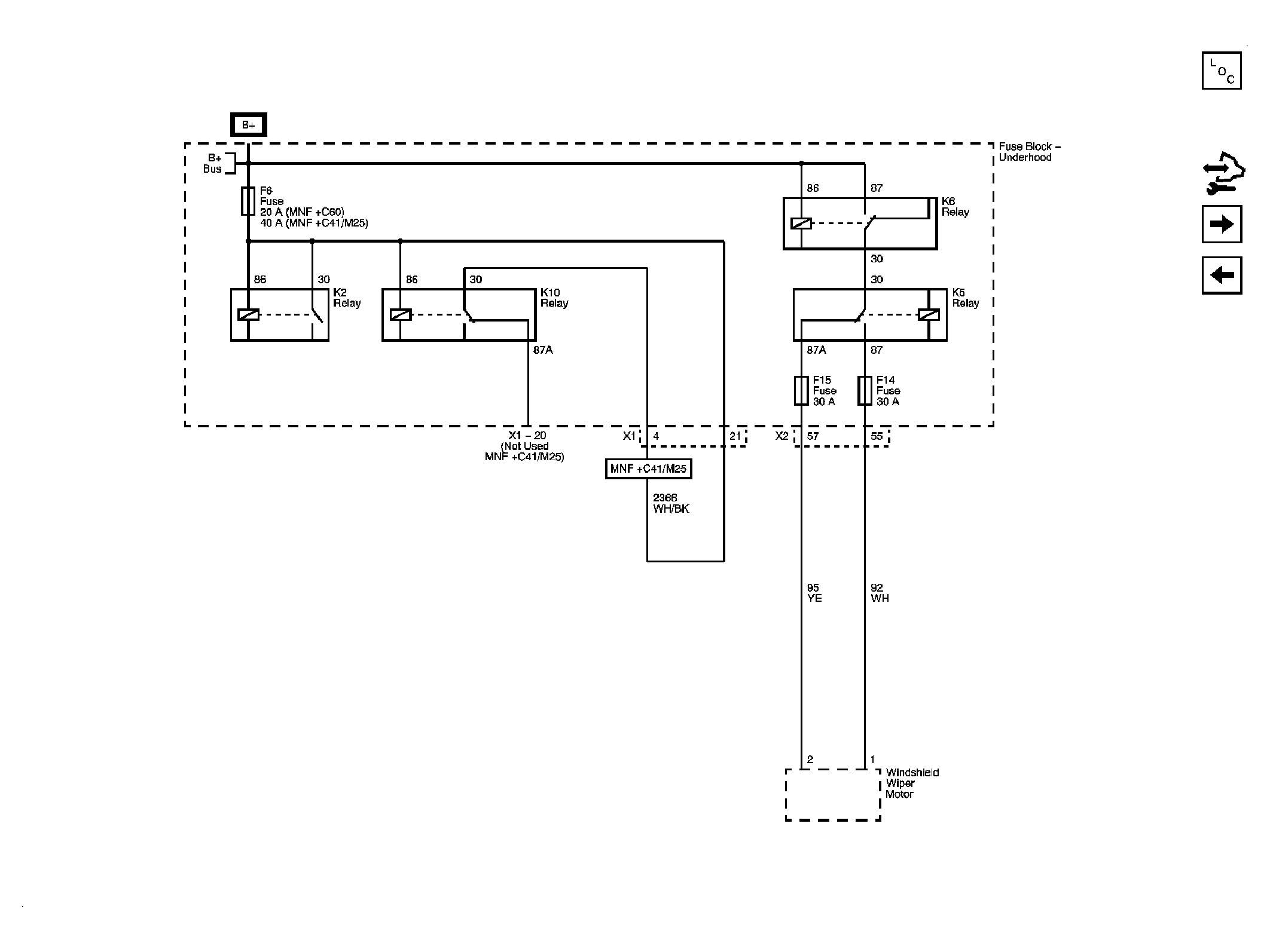

Fig 8: Fuse Block - Underhood, F6, F15, and F14 Fuses

Courtesy of GENERAL MOTORS CORP.

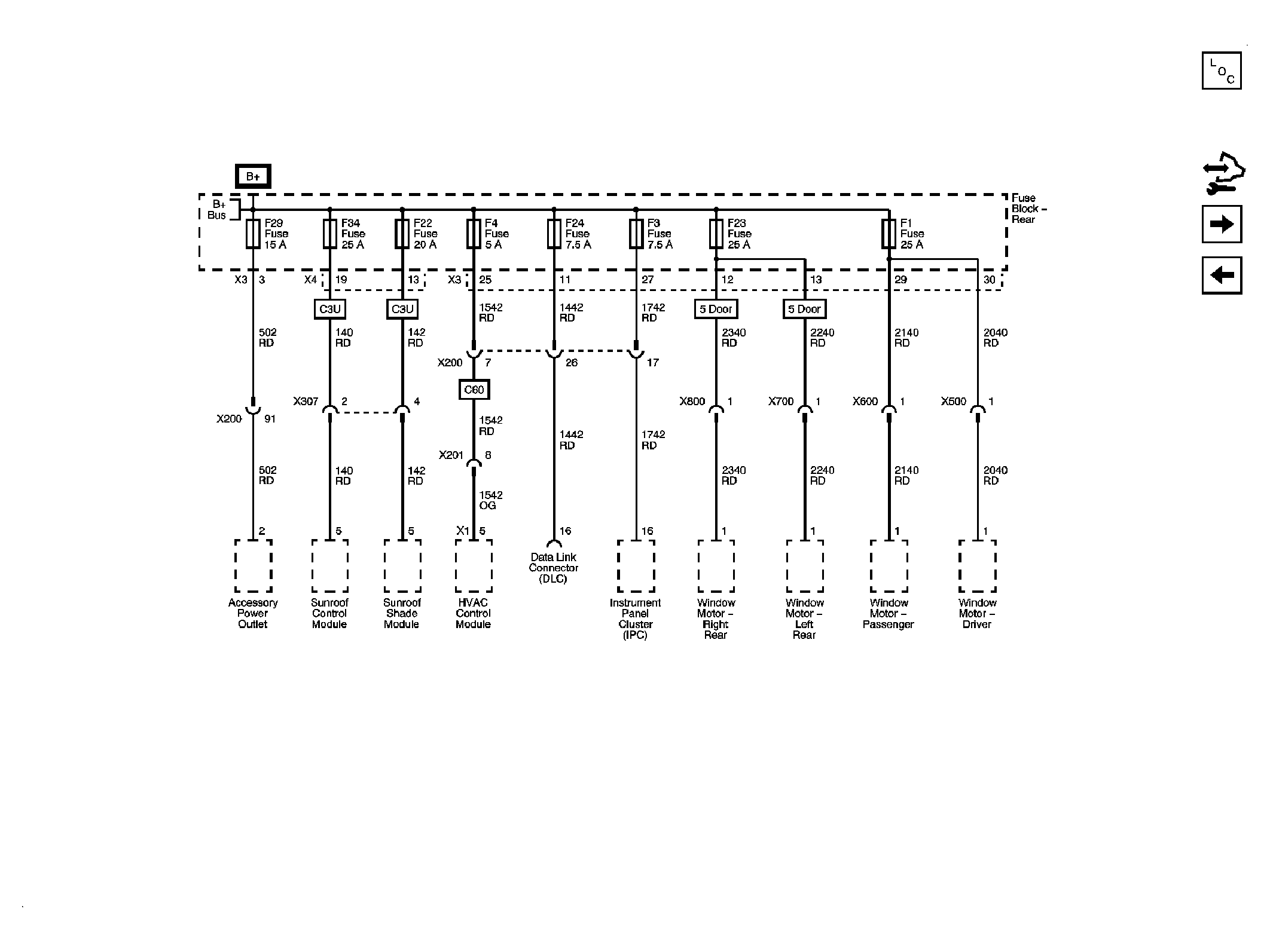

Fig 9: Fuse Block - Rear, F29, F34, F22, F4, F24, F3, F23, and F1 Fuses

Courtesy of GENERAL MOTORS CORP.

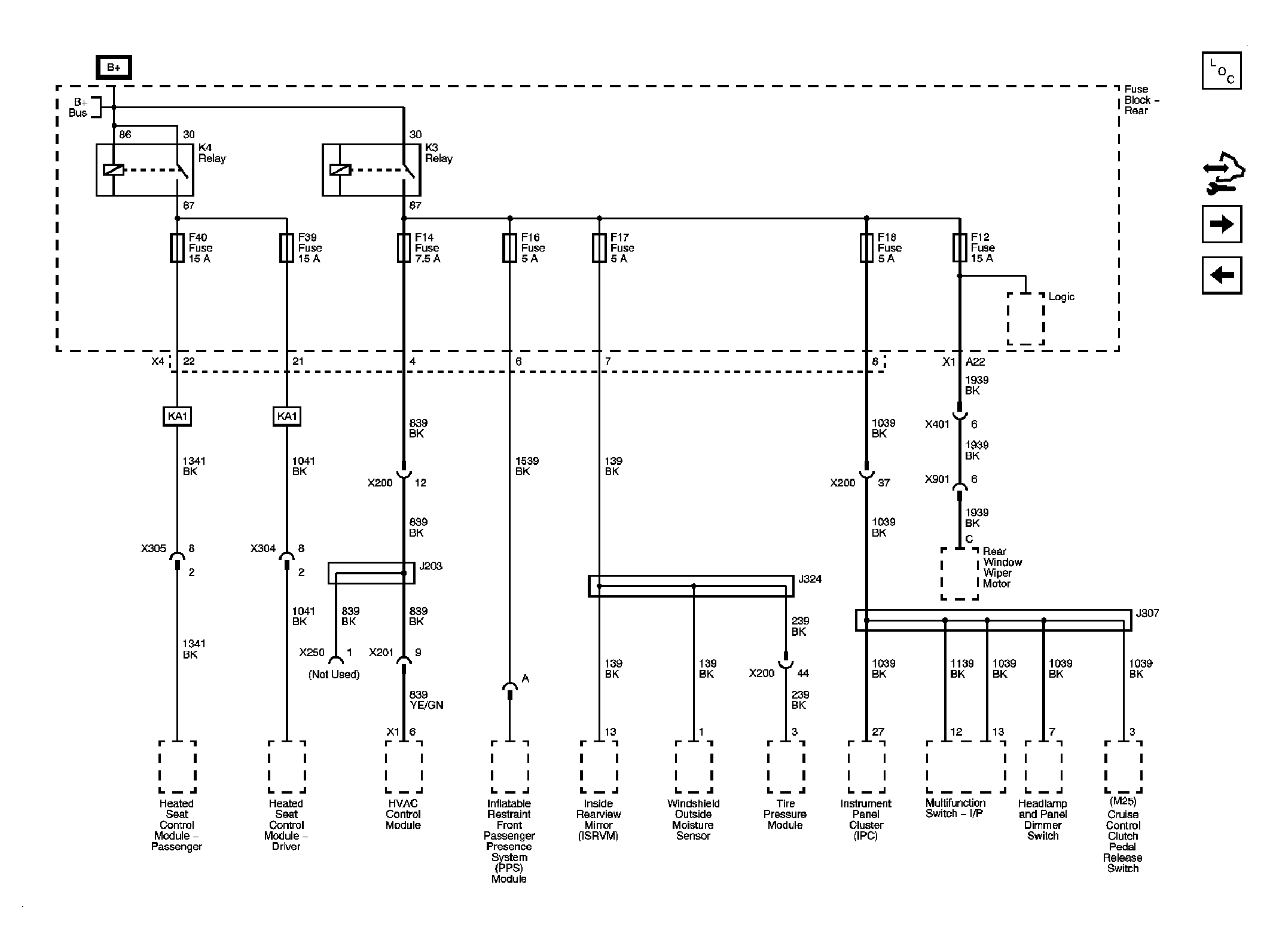

Fig 10: Fuse Block - Rear, F40, F39, F14, F16, F17, F18, and F12 Fuses

Courtesy of GENERAL MOTORS CORP.

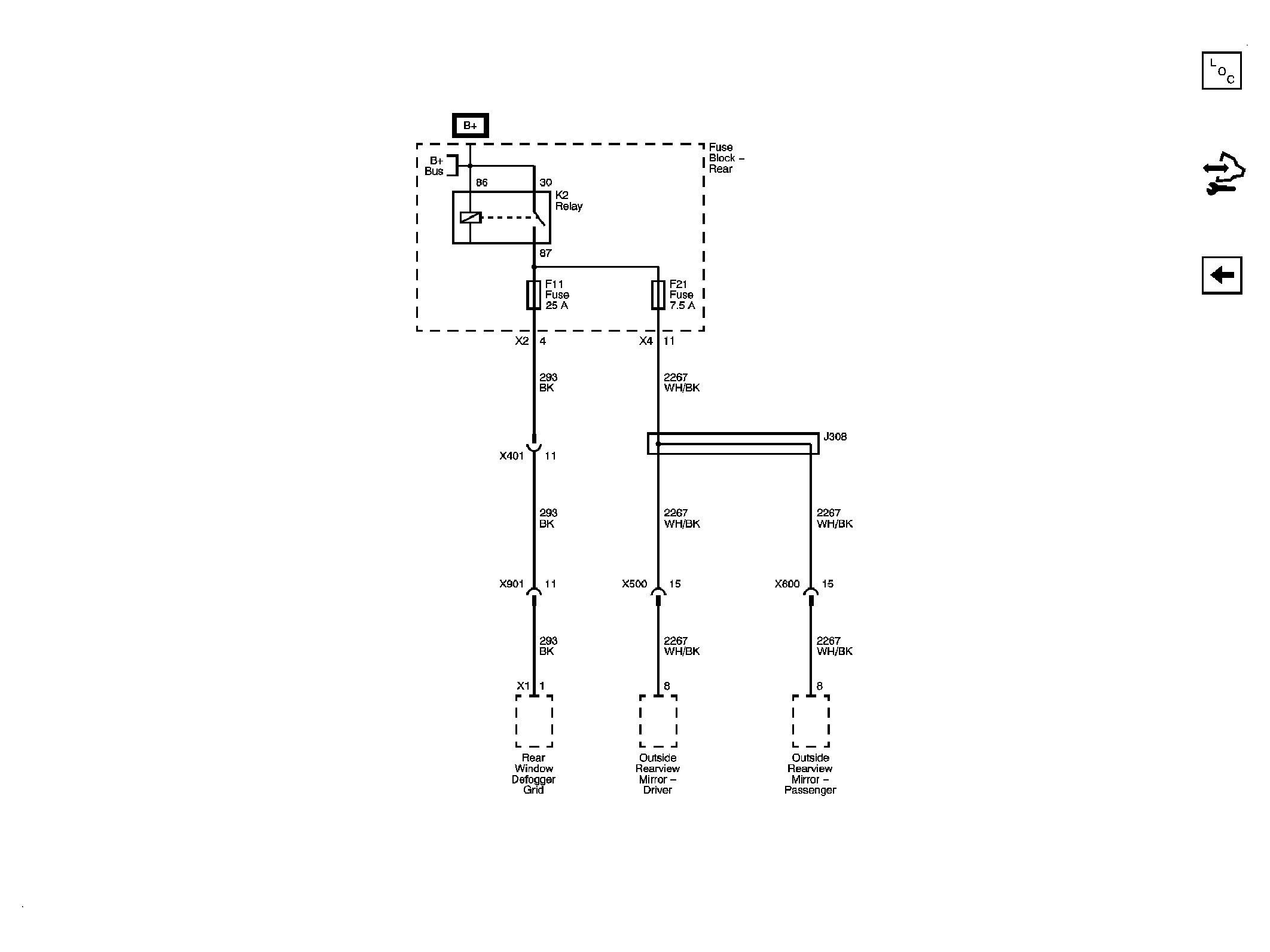

Fig 11: Fuse Block - Rear, F11 and F21 Fuses

Courtesy of GENERAL MOTORS CORP.
