Removal Procedure

  1. Open the hood.

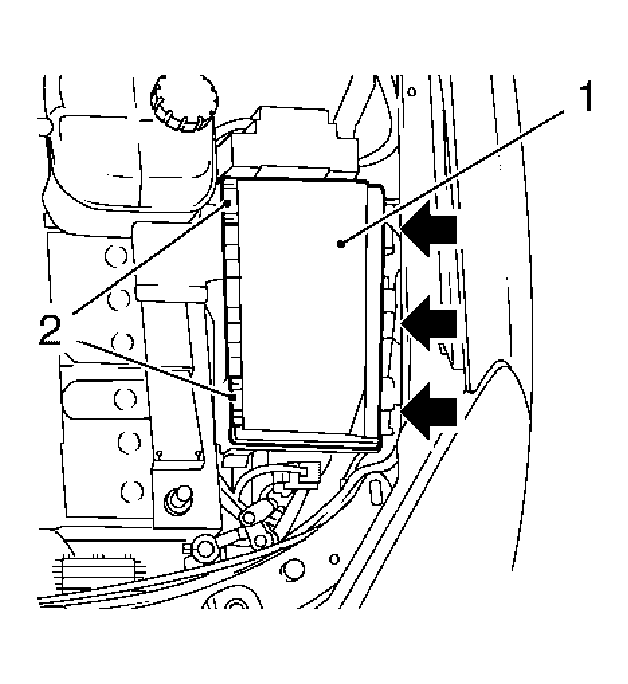

    2. Fig 1: Identifying Fuse Box Cover And Clips
    GM1948141Courtesy of GENERAL MOTORS CORP.
  2. Remove the fuse box cover (1).
    • Release the 2 clips (2).
    • Remove 3x from guide (arrows).
