Release Systems Schematics

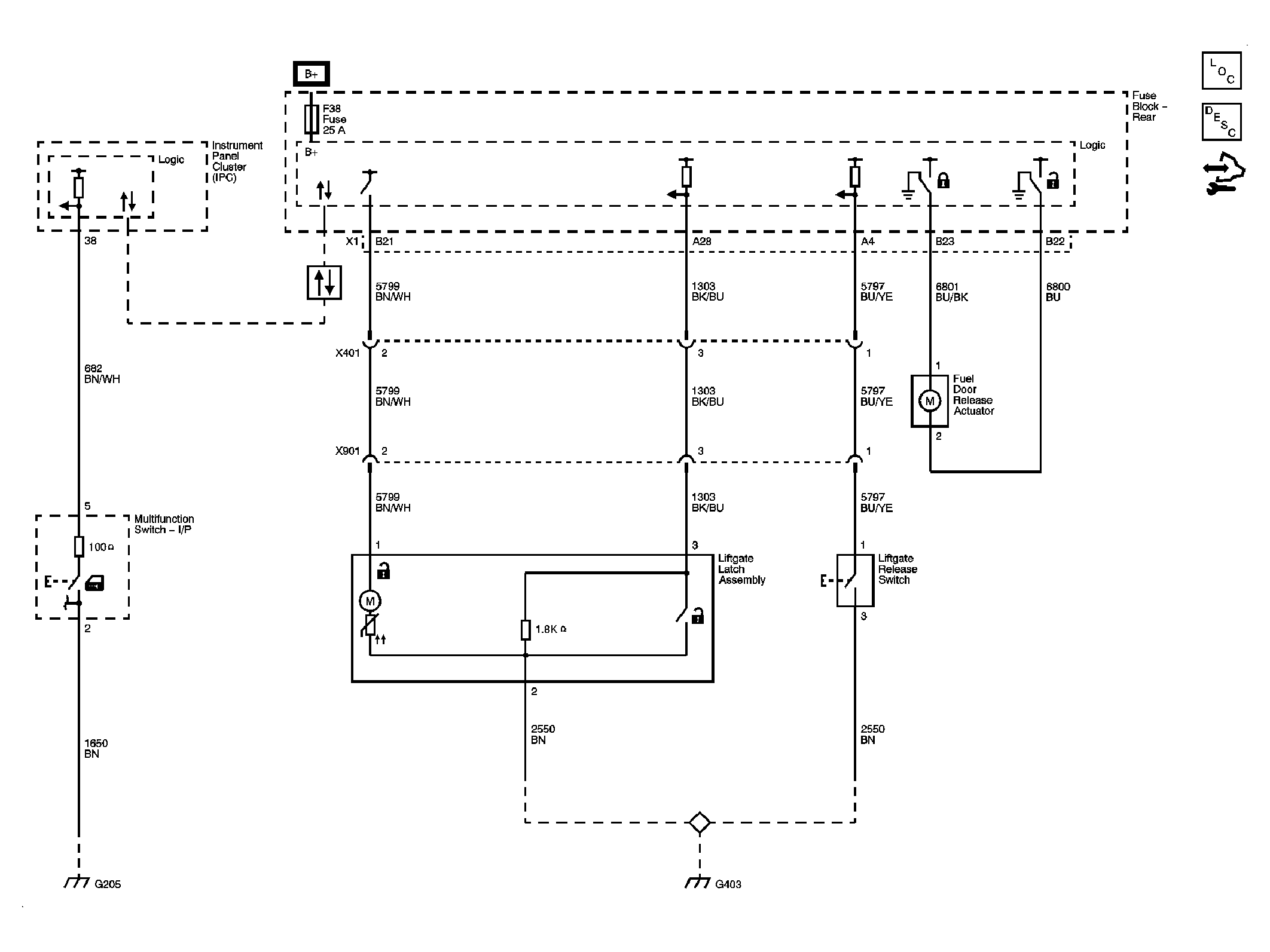

Fig 1: Release Systems Schematic

GM2151440

Courtesy of GENERAL MOTORS CORP.
