Communication Interface Module Replacement (Left Side)

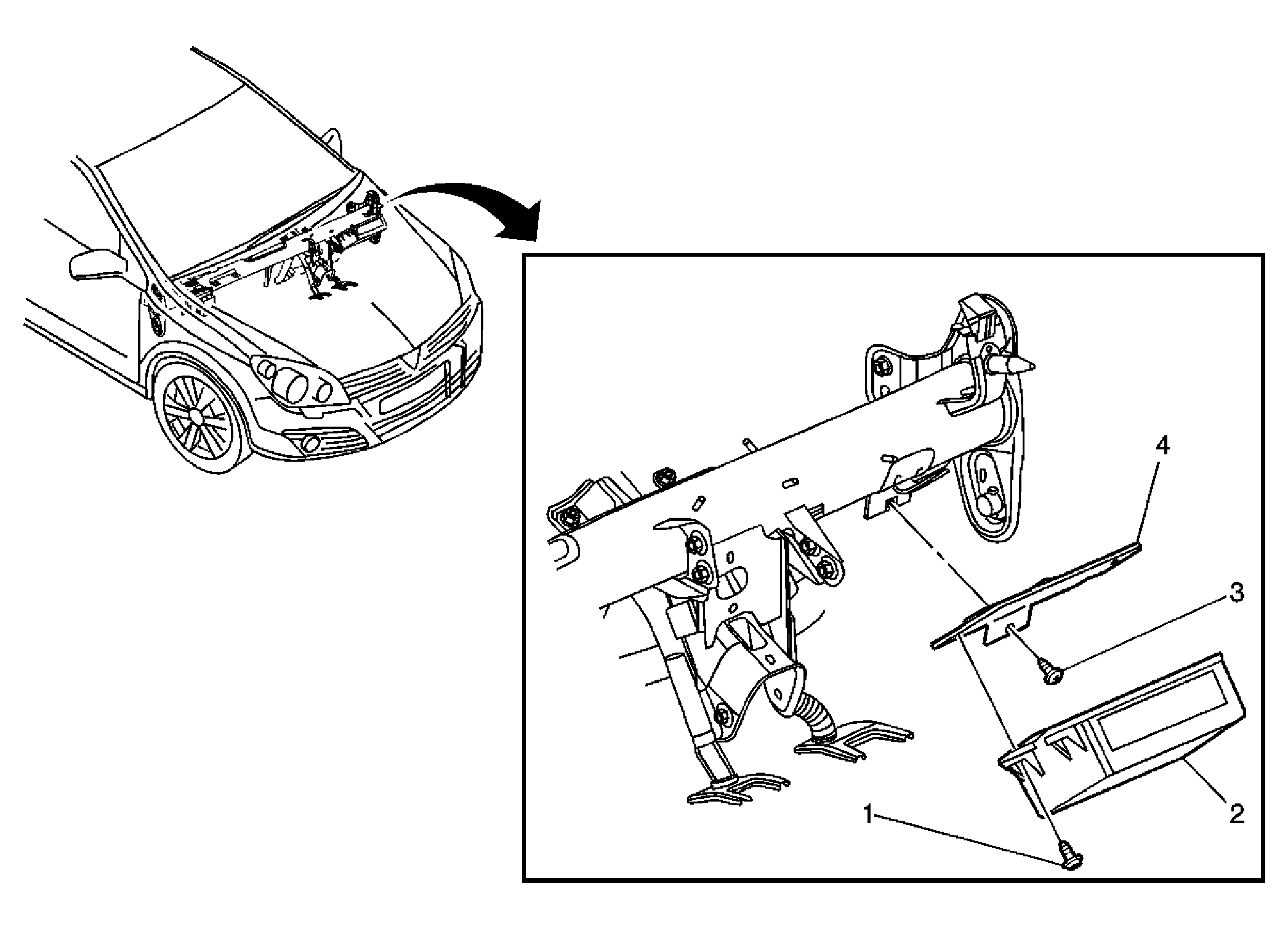

Fig 1: Communication Interface Module Replacement (Left Side)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement .
1	Communication Interface Module Bolt (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten: 4 N.m (35 lb in)
2	Communication Interface Module Procedure Disconnect the electrical connections. Refer to Control Module References for programming and set up procedures.
3	Communication Interface Module Bolt (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten: 4 N.m (35 lb in)
4	Mobile Telephone Transceiver
