Liftgate Latch Replacement (Coupe): Notes

  1. Remove the luggage shade from the liftgate.

    Release the 2 retaining cords.

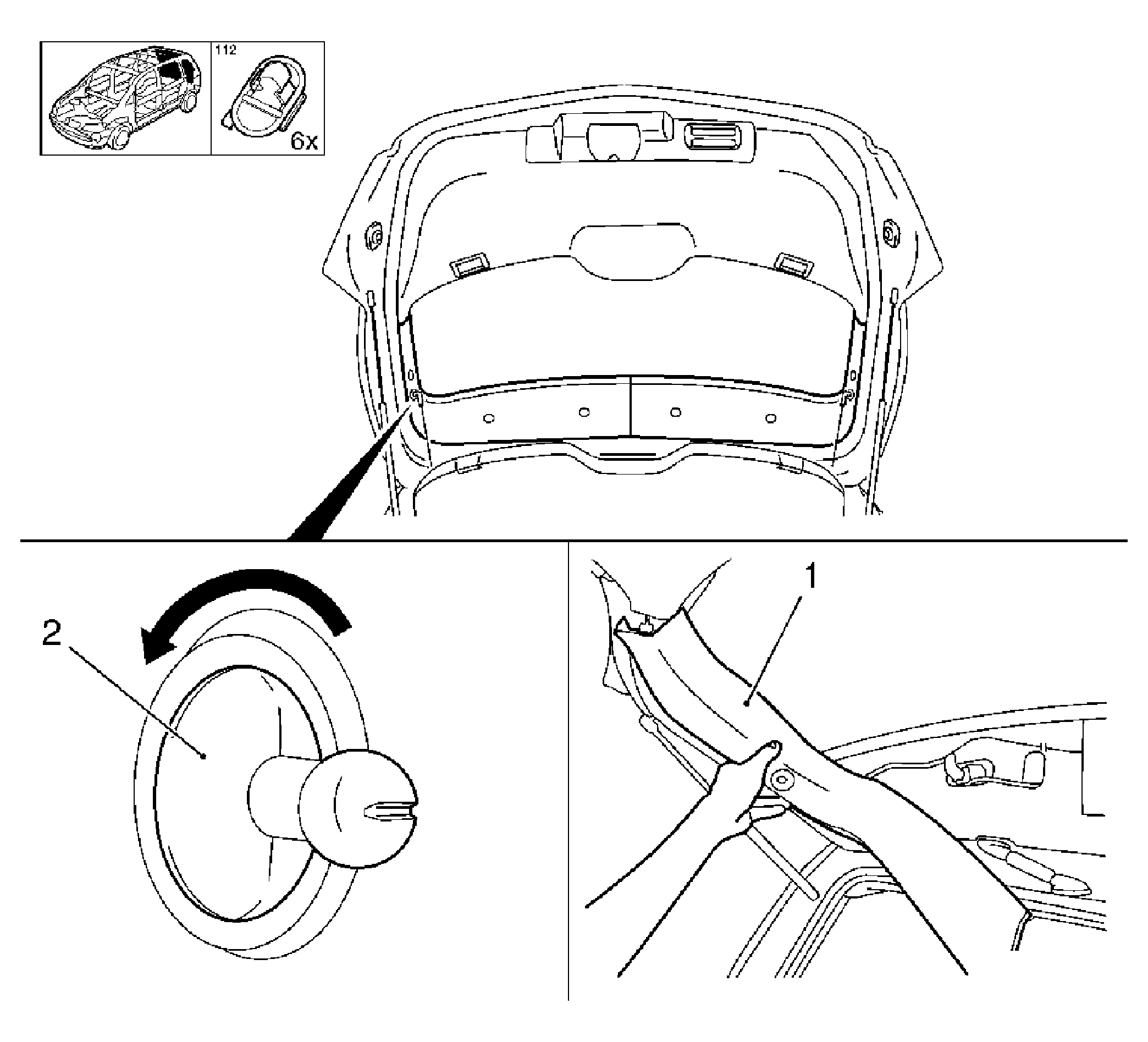

    2. Fig 1: View Of Upper Right And Left Liftgate Garnish Moldings
    GM1942306Courtesy of GENERAL MOTORS CORP.
  2. Remove the upper right and left liftgate garnish molding (1).
    • Remove the 2 luggage shade brackets (2).
    • Release the 6 clips.

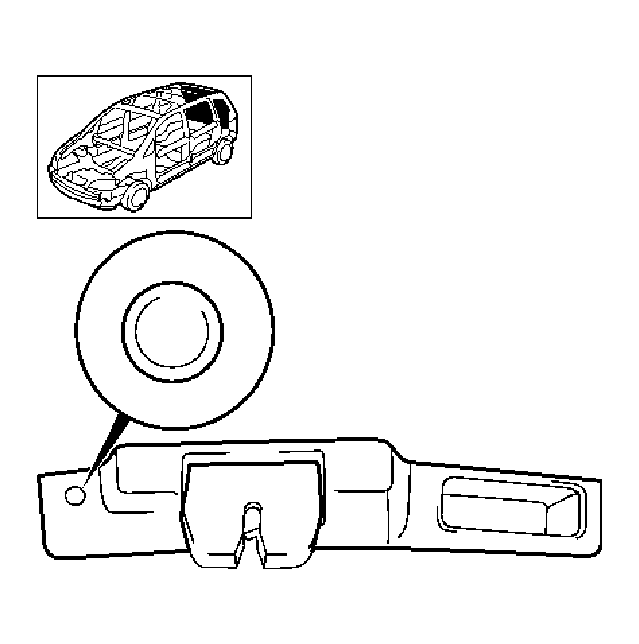

    3. Fig 2: View Of Liftgate Lock Panel
    GM1942242Courtesy of GENERAL MOTORS CORP.
  3. Remove the liftgate lock trim panel.
    • Remove the body-bound rivet.
    • Remove the 3 inner handle cups.

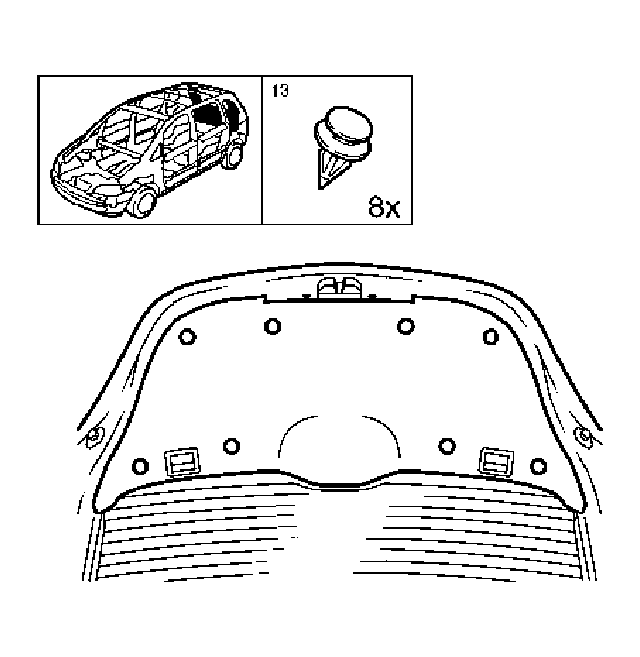

    4. Fig 3: View Of Lower Liftgate Inner Paneling 8 Clips
    GM1942303Courtesy of GENERAL MOTORS CORP.
  4. Remove the lower liftgate trim panel.

    Release the 8 clips (1).

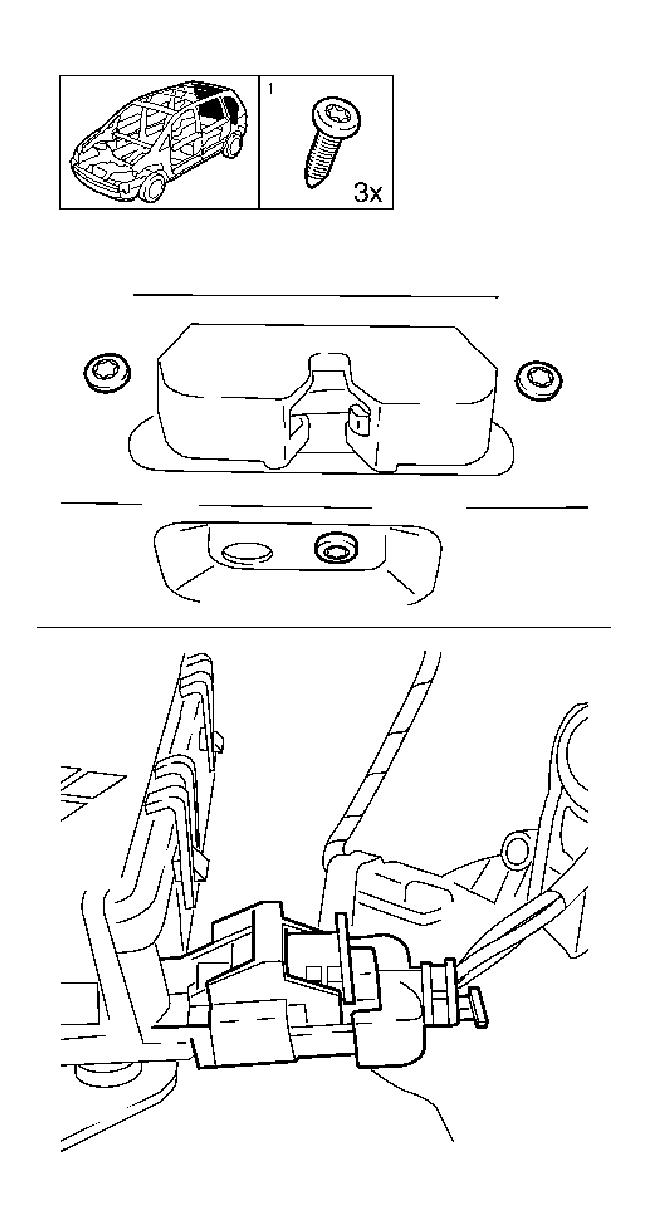

    5. Fig 4: View Of Liftgate Latch Bolts And Wiring Harness
    GM1941197Courtesy of GENERAL MOTORS CORP.
  5. Remove the liftgate latch.
    • Disconnect the wiring harness plug.
    • Remove the 3 bolts.
