Communication Interface Module Replacement (Right Side)

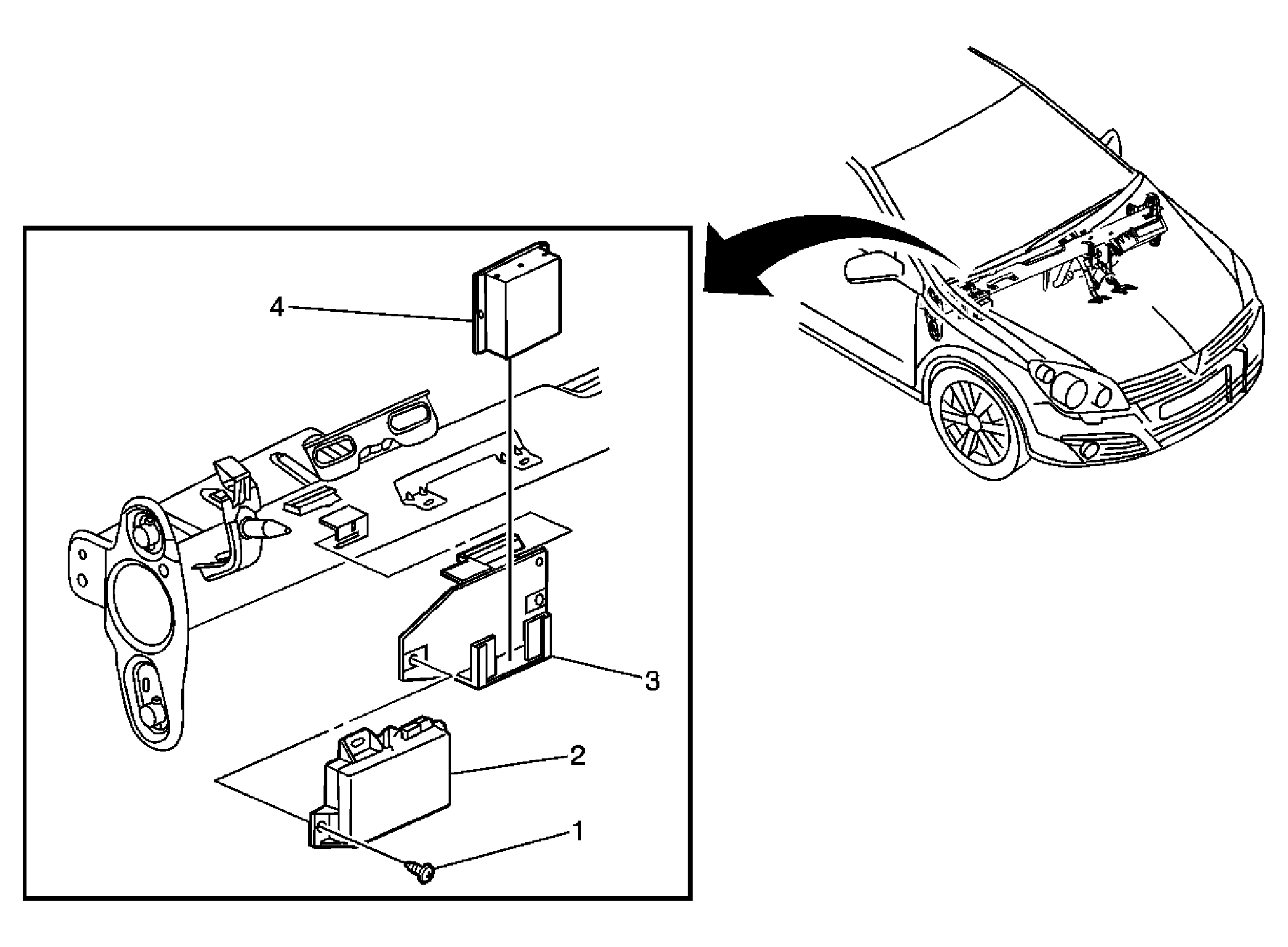

Fig 1: Communication Interface Module Replacement (Right Side)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove Instrument Panel Compartment. Refer to Instrument Panel Compartment Replacement .
1	Communication Interface Module Bolt (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten: 4 N.m (35 lb in)
2	Communication Interface Module Battery
3	Communication Interface Module Bracket
4	Communication Interface Module Procedure Disconnect the electrical connections. Refer to Control Module References for programming and set up procedures.
