Passenger Compartment/Roof Component Views

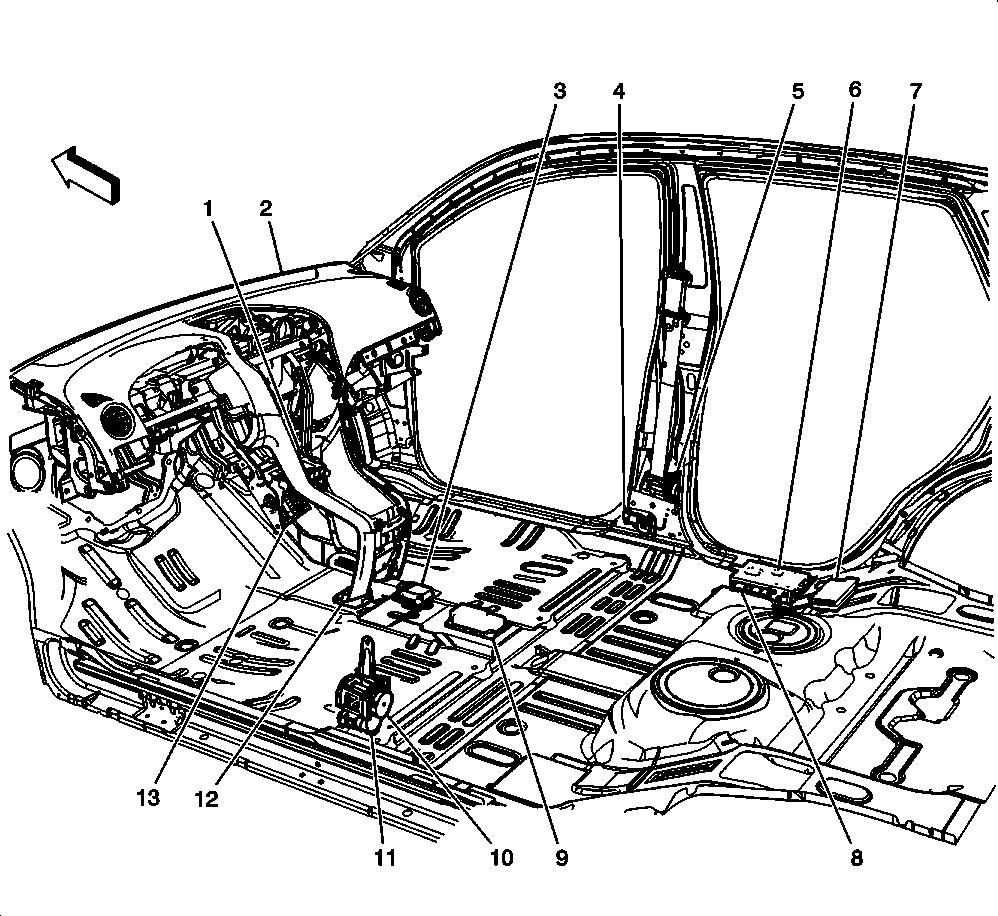

Fig 1: Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	Instrument Panel
3	Yaw Rate and Lateral Accelerometer Sensor
4	Inflatable Restraint Side Impact Sensor (SIS) - Right
5	Seat Belt Retractor - Right
6	Vehicle Communications Interface Module (VCIM) (UE1)
7	Vehicle Communications Interface Module (VCIM) Battery (UE1)
8	Inflatable Restraint Sensing and Diagnostic Module (SDM)
9	Seat Belt Retractor - Left
10	Inflatable Restraint Side Impact Sensor (SIS) - Left
11	Inflatable Restraint Vehicle Rollover Sensor
12	Fuse Block - I/P

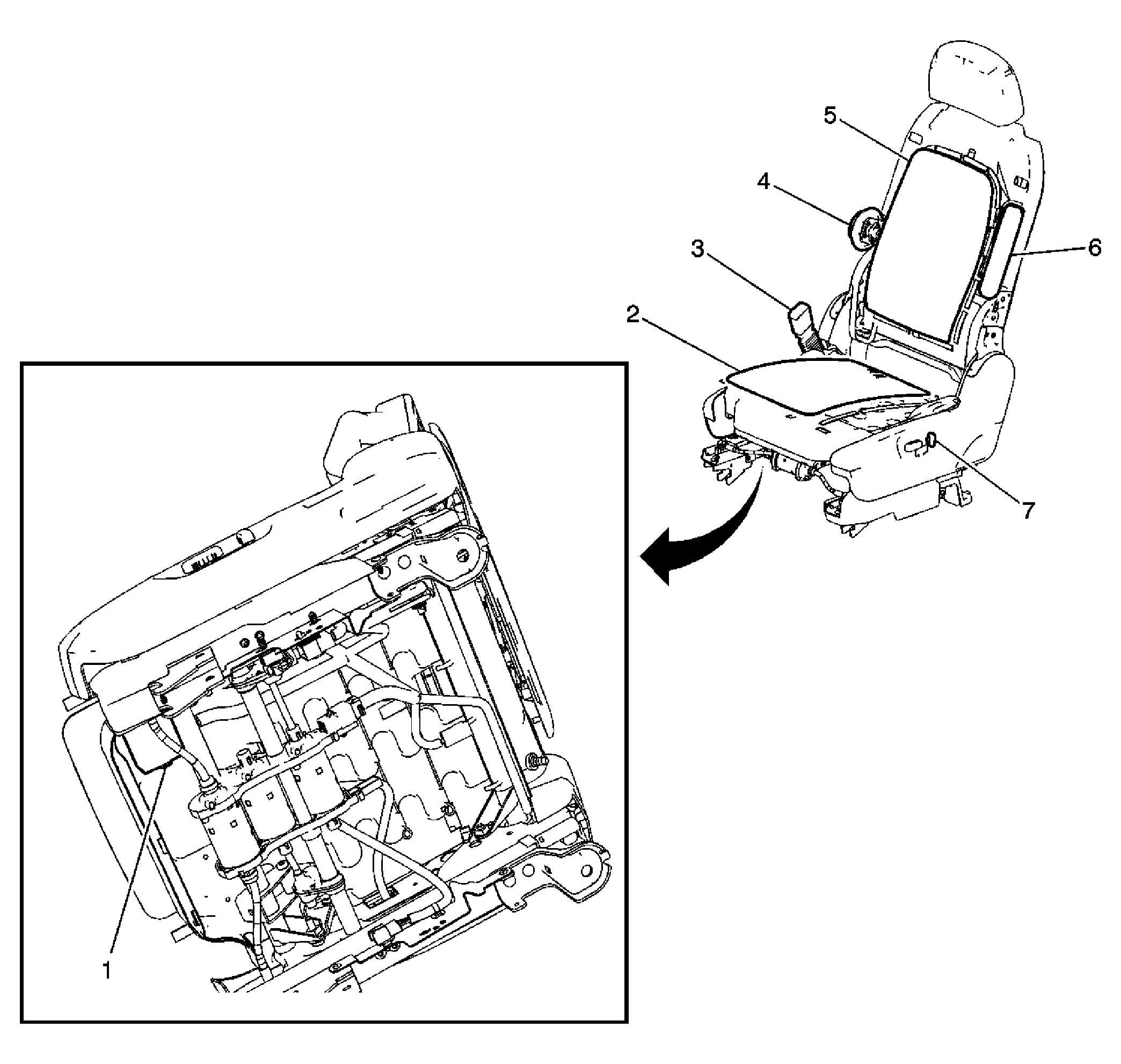

Fig 2: Driver Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Control Module - Driver (KA1)
2	Heated Seat Cushion - Driver (KA1)
3	Seat Belt Switch
4	Lumbar Knob
5	Heated Seat Back - Driver (KA1)
6	Inflatable Restraint Side Impact Module - Driver
7	Seat Adjuster Switch - Driver

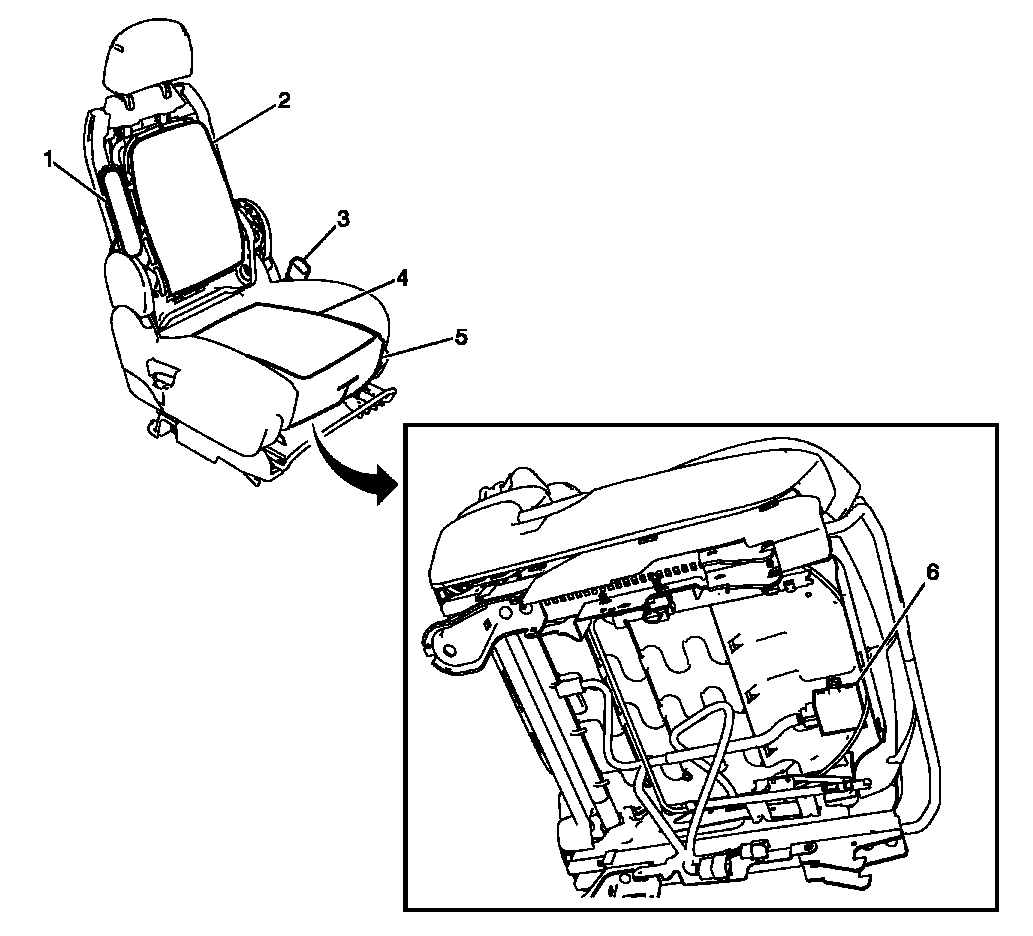

Fig 3: Front Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Front Passenger
2	Heated Seat Back - Passenger (KA1)
3	Seat Belt Buckle Pretensioner
4	Heated Seat Cushion - Passenger (KA1)
5	Inflatable Restraint Passenger Presence System (PPS) Sensor
6	Heated Seat Control Module - Passenger (KA1)

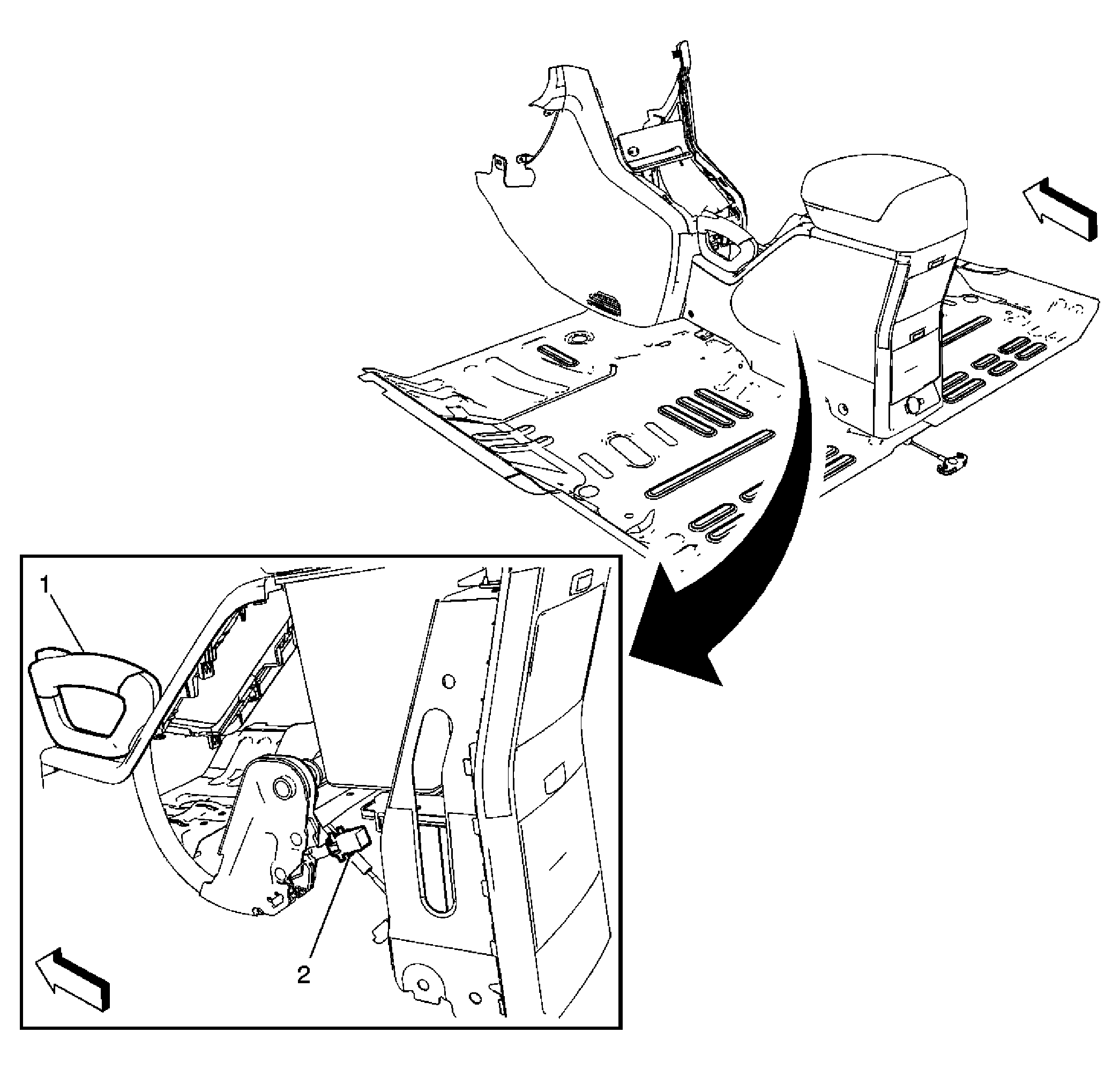

Fig 4: Park Brake Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Handle
2	Park Brake Switch

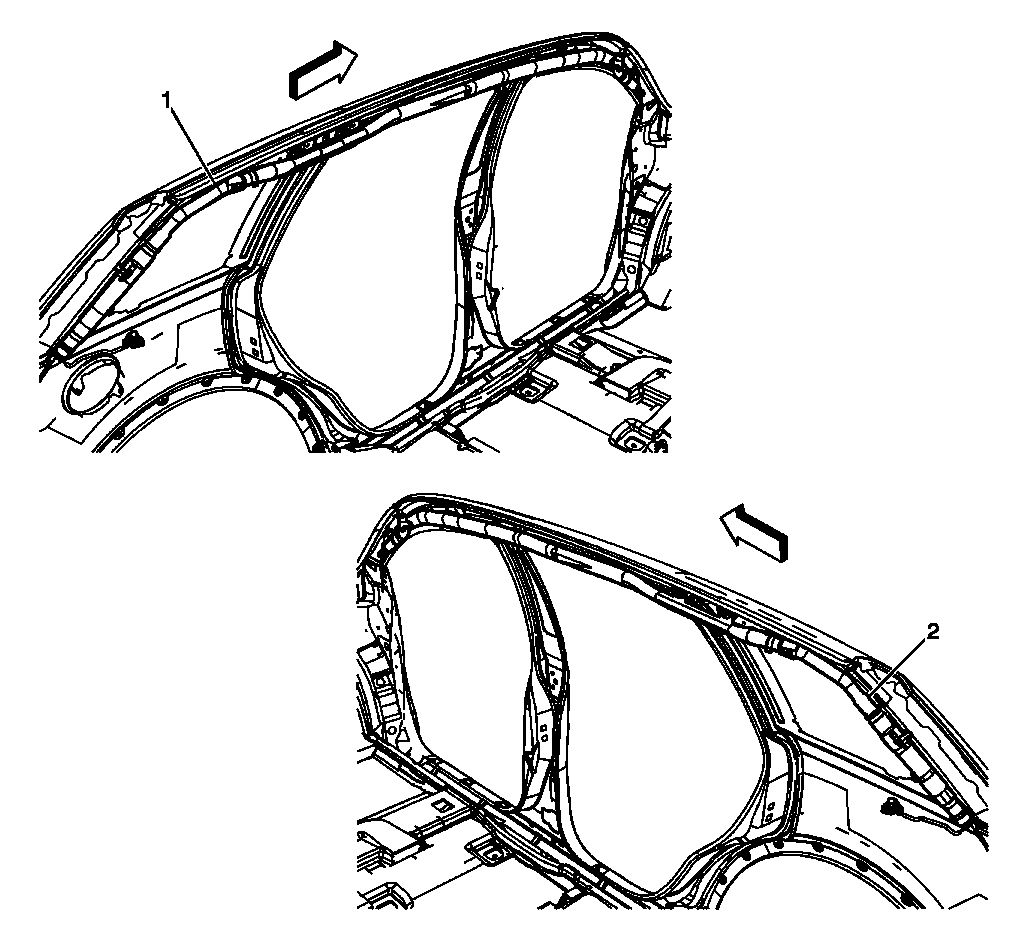

Fig 5: Inflatable Restraint Roof Rail Modules

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left
2	Inflatable Restraint Roof Rail Module - Right

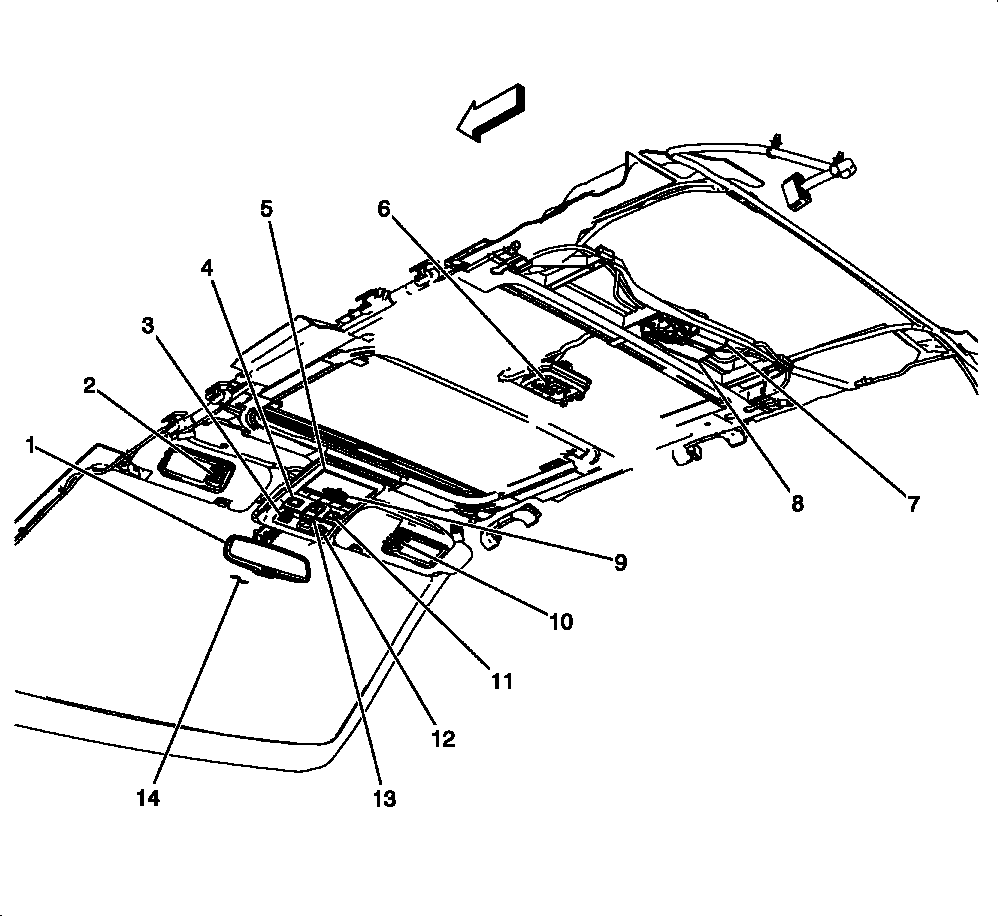

Fig 6: Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror
2	Sunshade Mirror Lamp - Left (D61)
3	Cellular Telephone Microphone (UE1)
4	Courtesy/Map Lamp
5	Garage Door Opener (GDO) (UG1)
6	Rear Seat Entertainment Display (UUC)
7	Dome/Map Lamp - Center
8	Sunroof Motor (CF5)
9	Garage Door Opener (GDO) (UG1)
10	Sunshade Mirror Lamp - Right (D61)
11	Courtesy/Map Lamp
12	Onstar Button Assembly (UE1)
13	Rain Sensor (CE1)

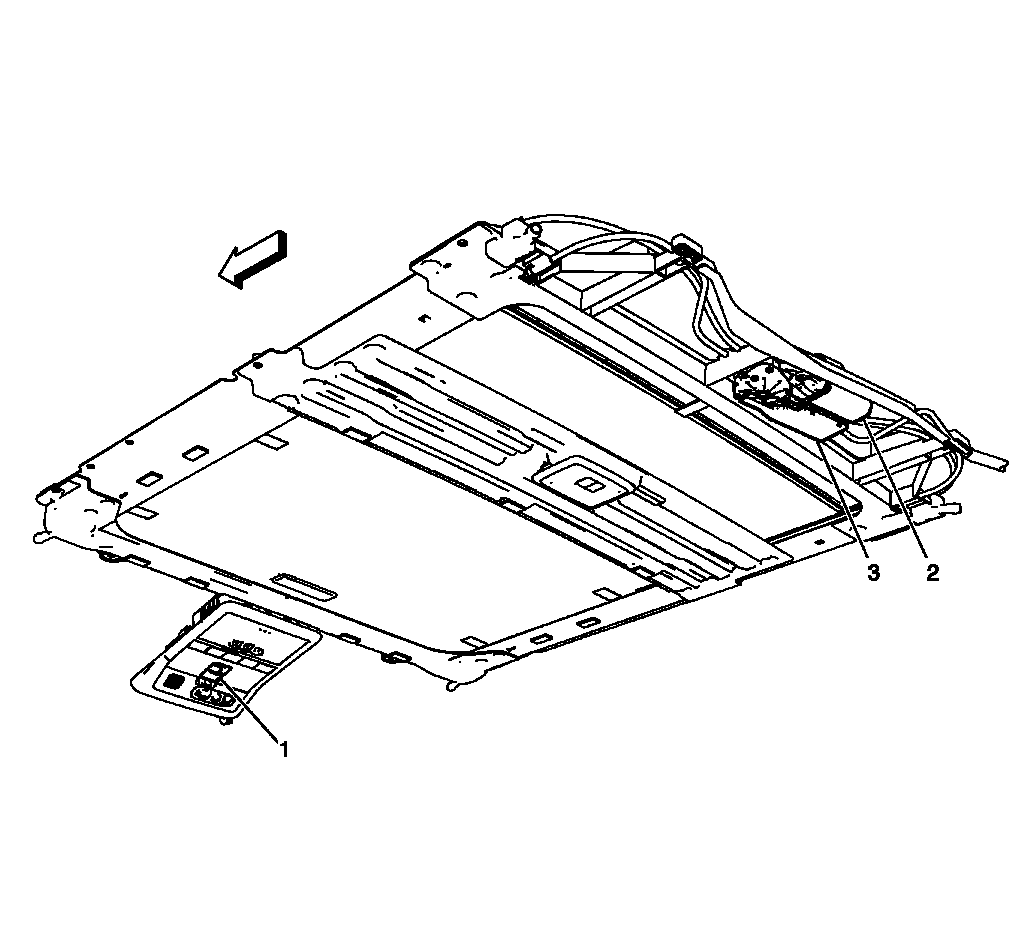

Fig 7: Sunroof Components (CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch (CF5)
2	Sunroof Motor (CF5)
3	Sunroof Control Module (CF5)

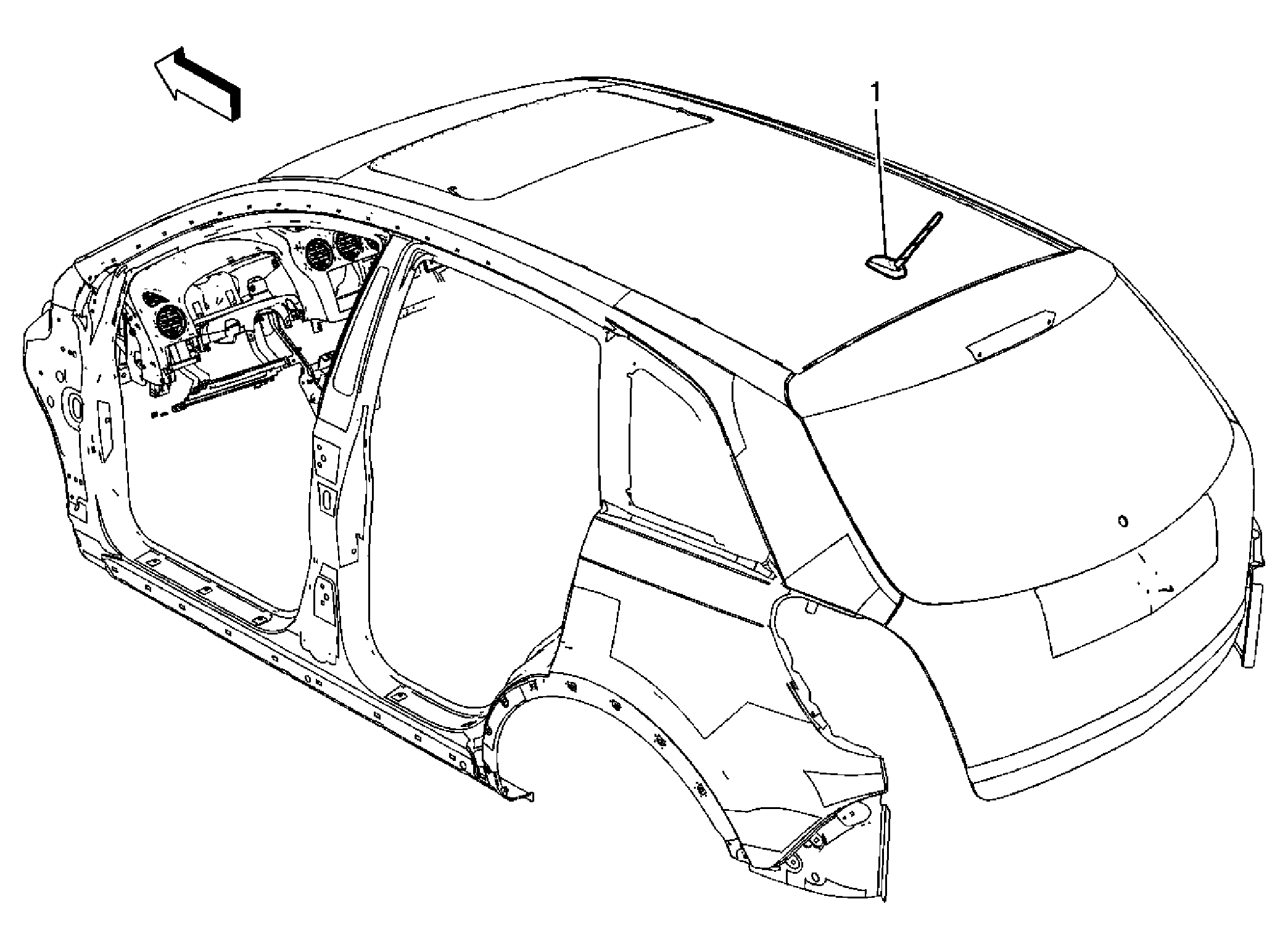

Fig 8: Center Rear Of Roof

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio/Cellular Telephone/Navigational Antenna
