Moveable Window Schematics

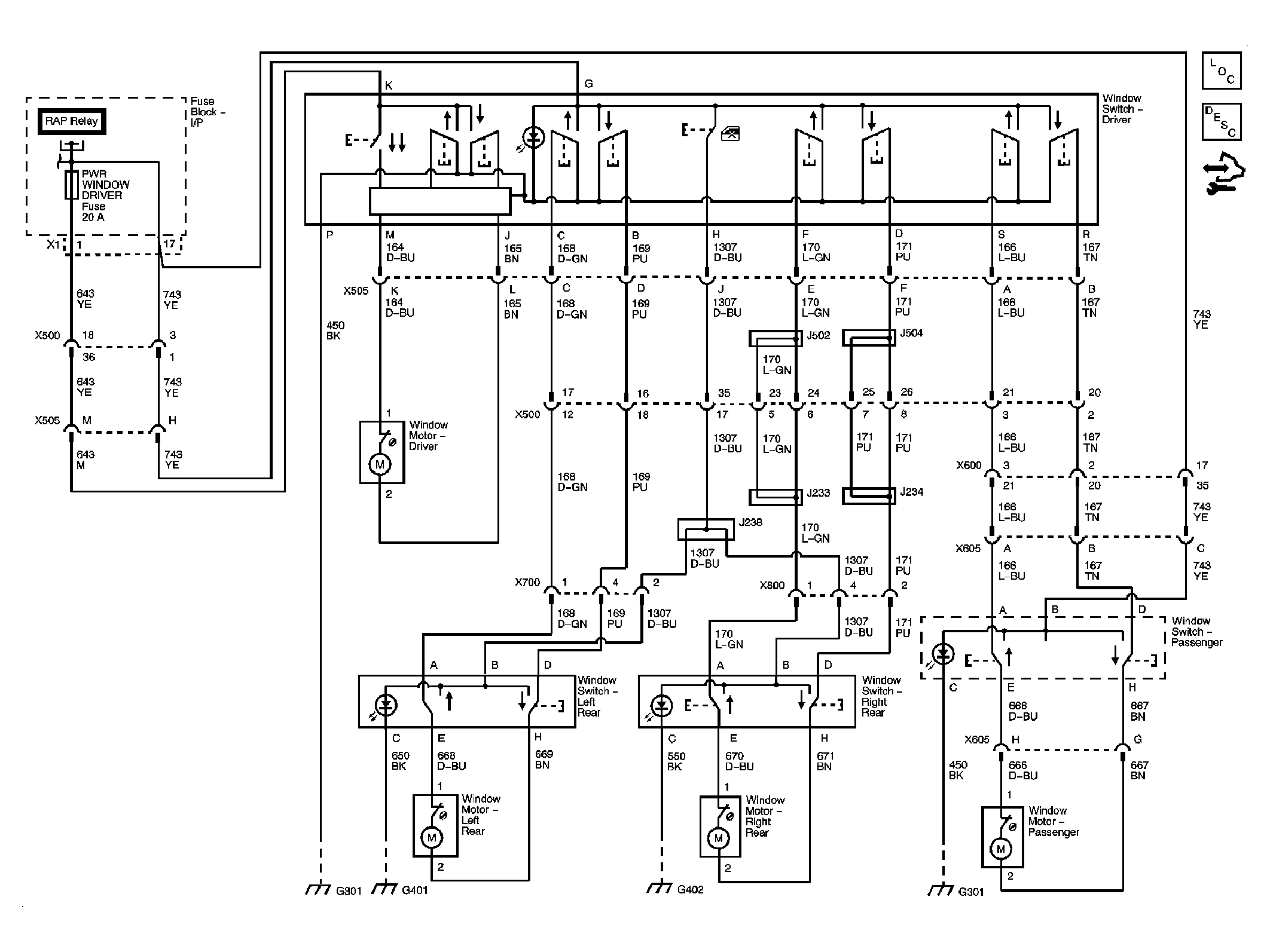

Fig 1: Moveable Window - Schematic

GM1902683

Courtesy of GENERAL MOTORS CORP.
