Power Moding Schematics

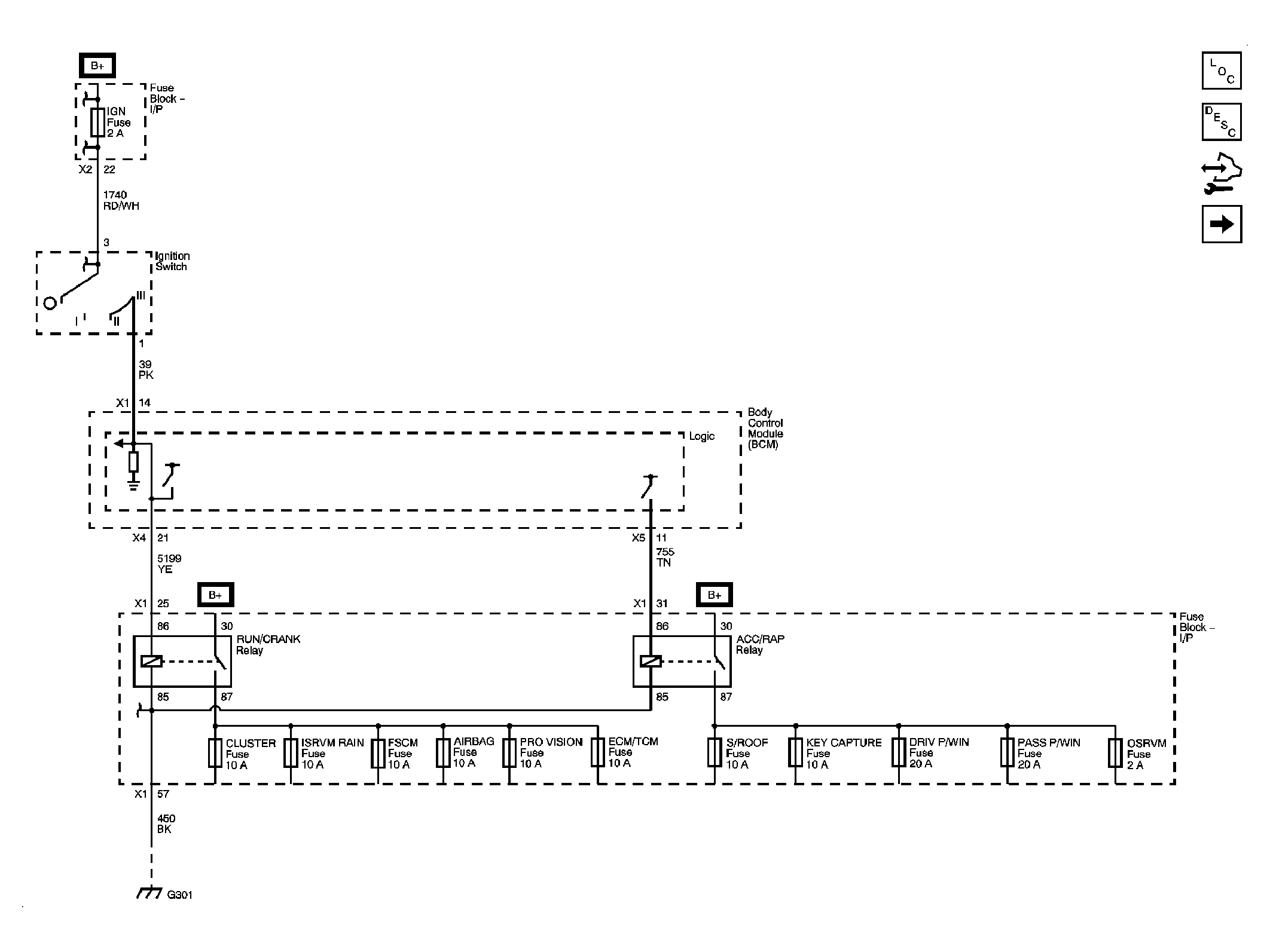

Fig 1: RAP Relay Control - Schematic

GM1883494

Courtesy of GENERAL MOTORS CORP.

Fig 2: Run Relay Control - Schematic

GM1883495

Courtesy of GENERAL MOTORS CORP.
