Ground Distribution Schematics

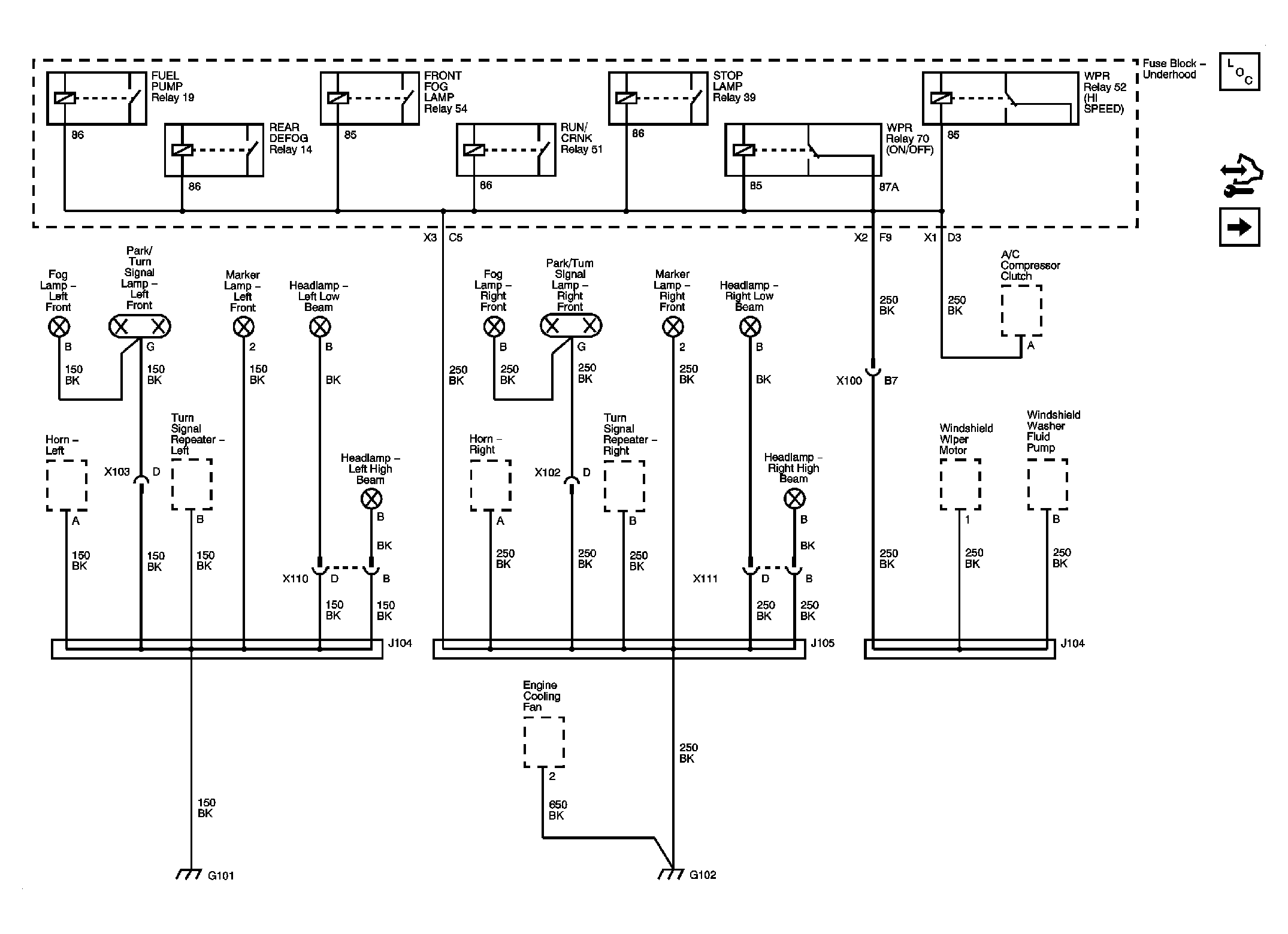

Fig 1: G101 and G102 Schematic
GM1914291Courtesy of GENERAL MOTORS CORP.

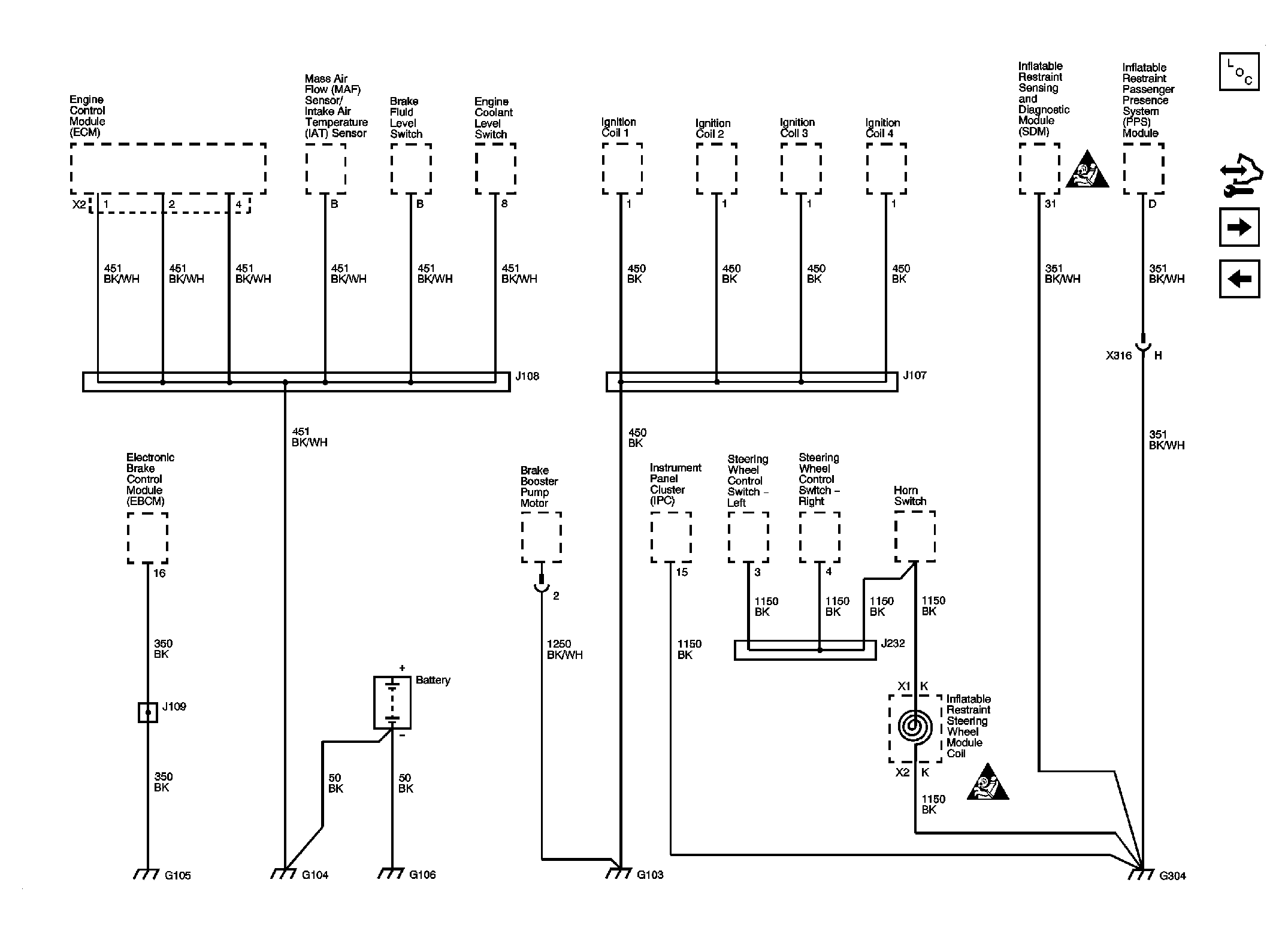

Fig 2: G103, G105, G104, G106, G304 Schematic
GM1914293Courtesy of GENERAL MOTORS CORP.
Fig 3: G300 Schematic - 1 of 2
GM1914295Courtesy of GENERAL MOTORS CORP.
Fig 4: G300 Schematic - 2 of 2
GM1914297Courtesy of GENERAL MOTORS CORP.

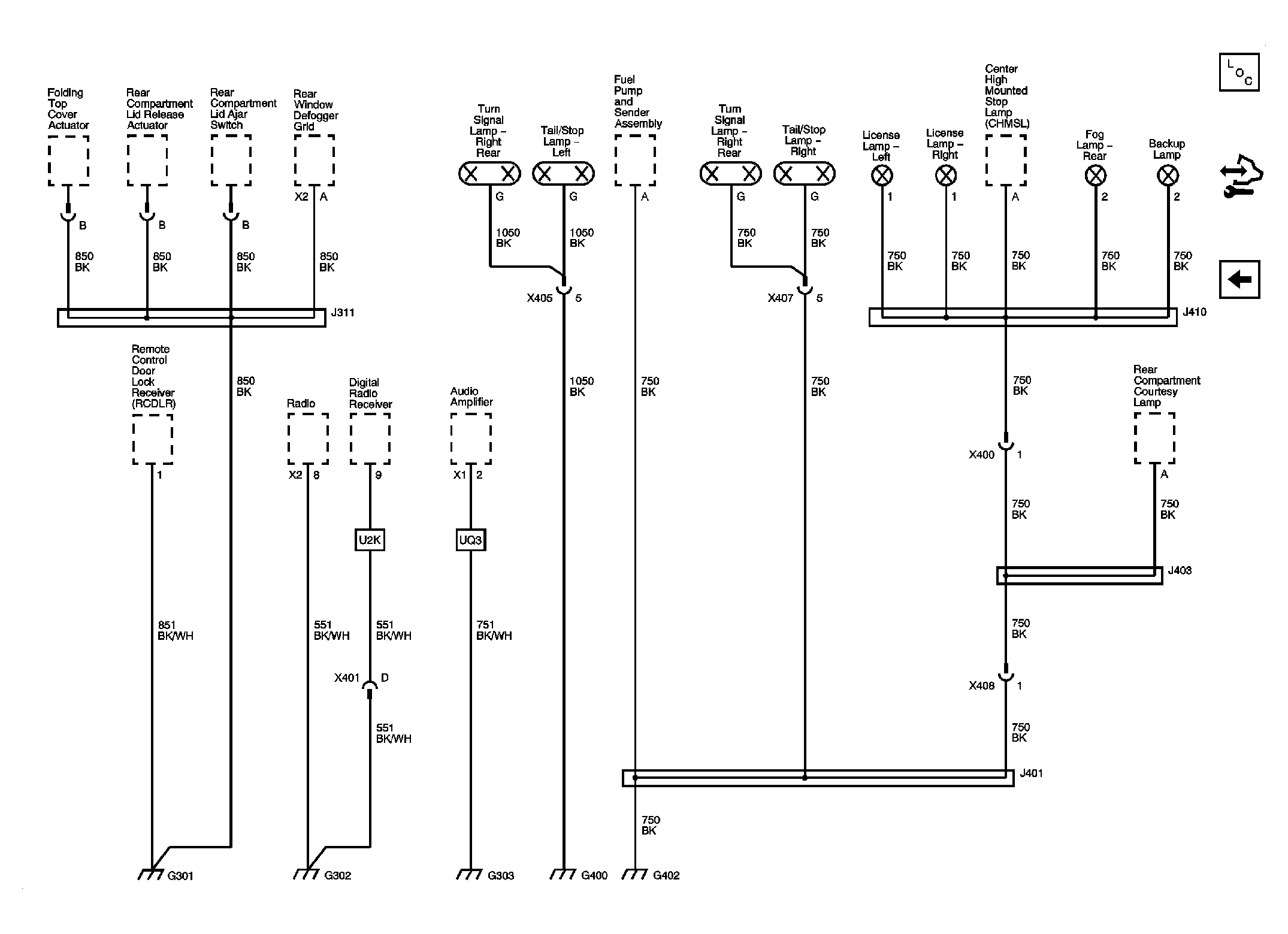

Fig 5: G301, G302, G303, G400, G402 Schematic
GM1914299Courtesy of GENERAL MOTORS CORP.
