Release Systems Schematics

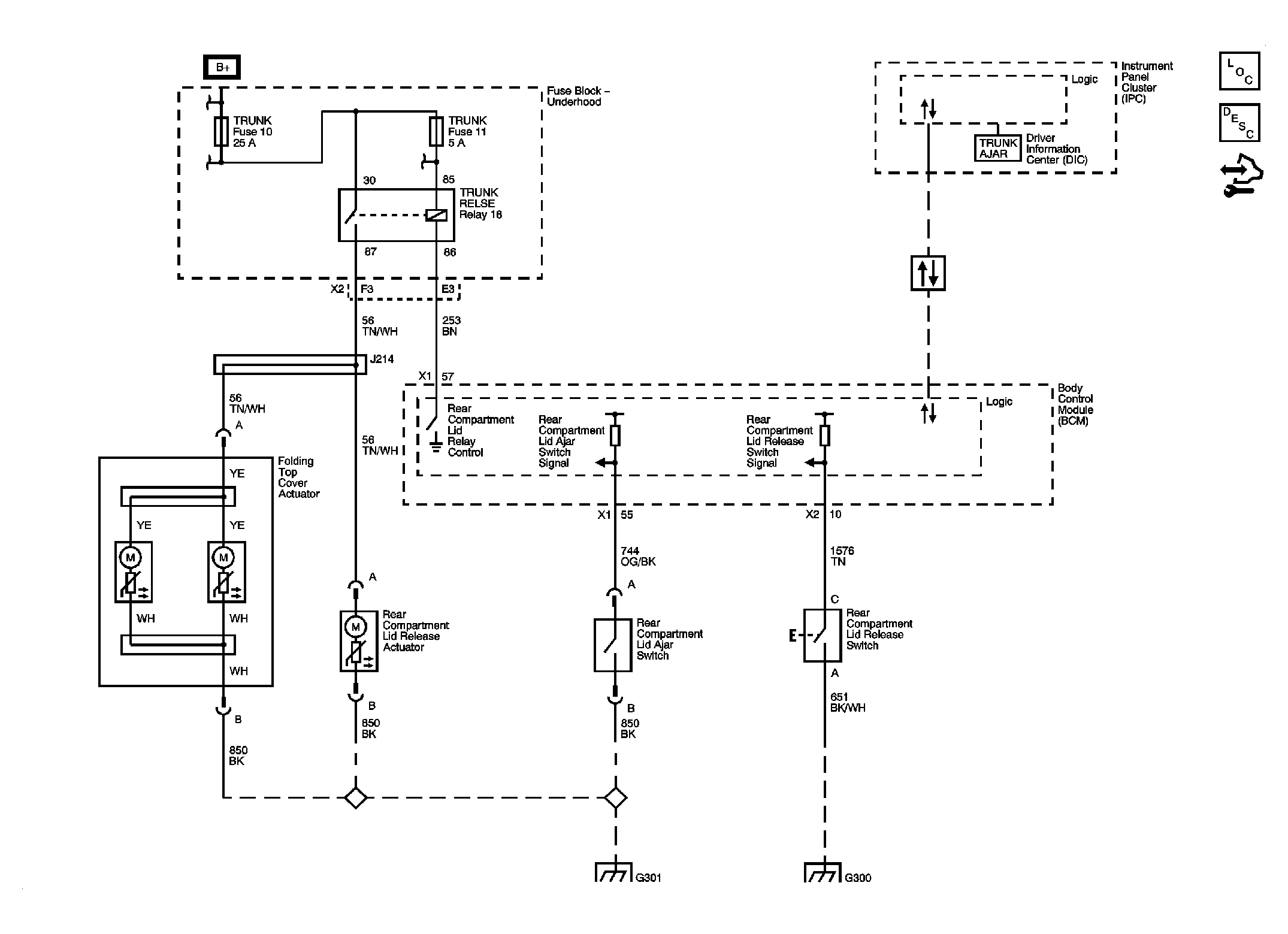

Fig 1: Release Systems Schematic

GM1914136

Courtesy of GENERAL MOTORS CORP.
