Engine Controls Schematics

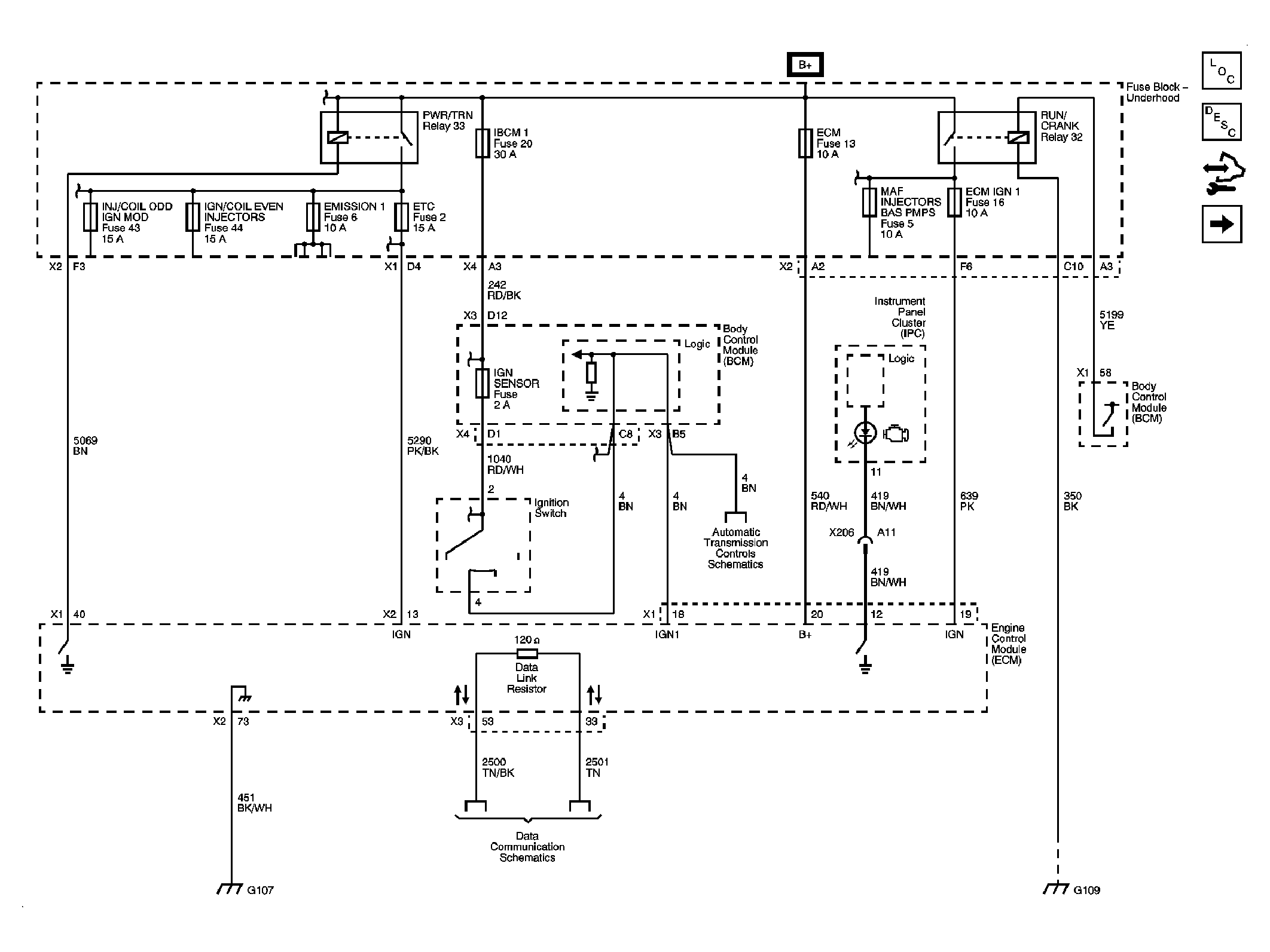

Fig 1: Power, Ground, Serial Data and MIL Schematic

Courtesy of GENERAL MOTORS CORP.

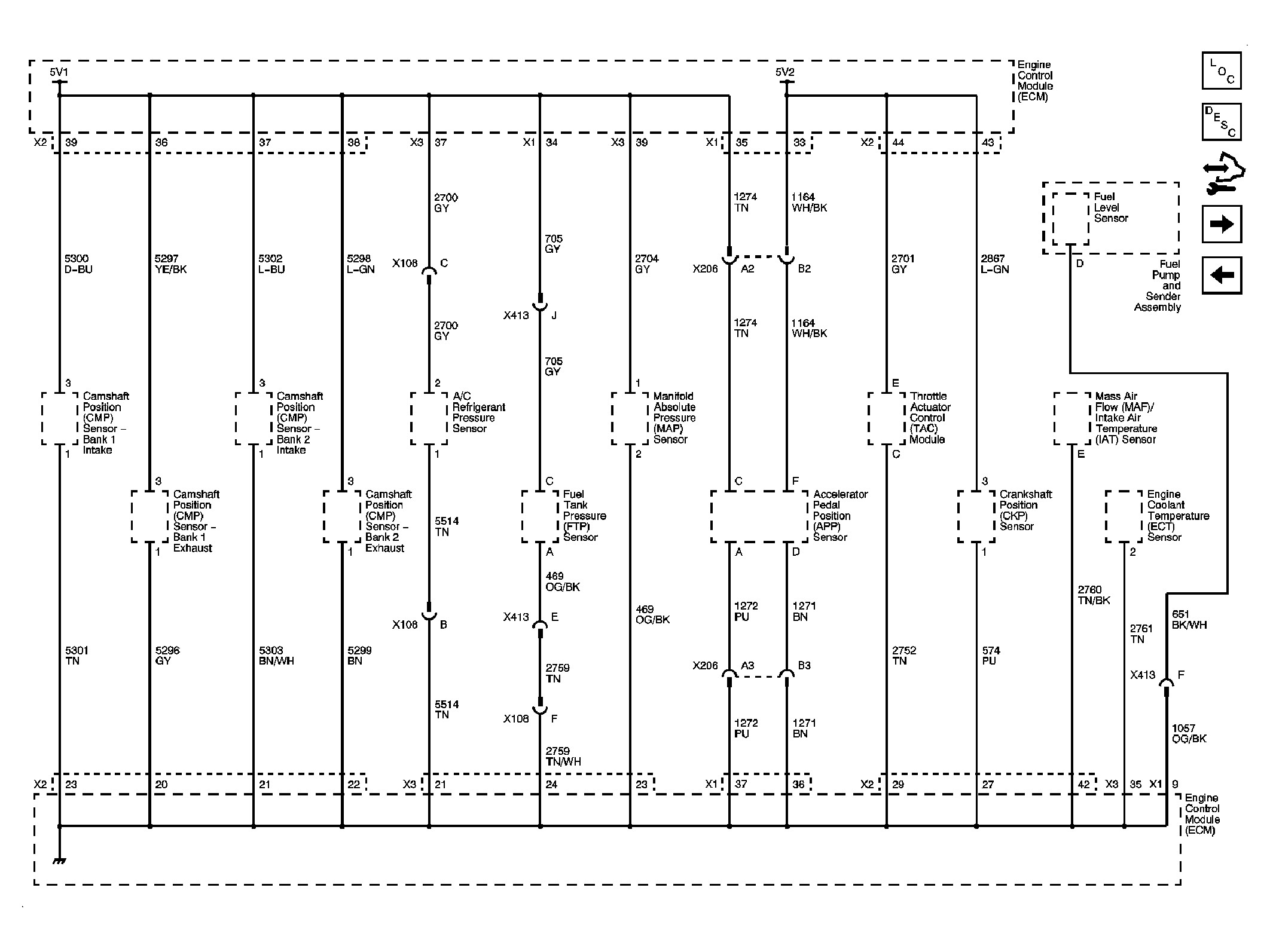

Fig 2: 5-Volt and Low References Schematic

Courtesy of GENERAL MOTORS CORP.

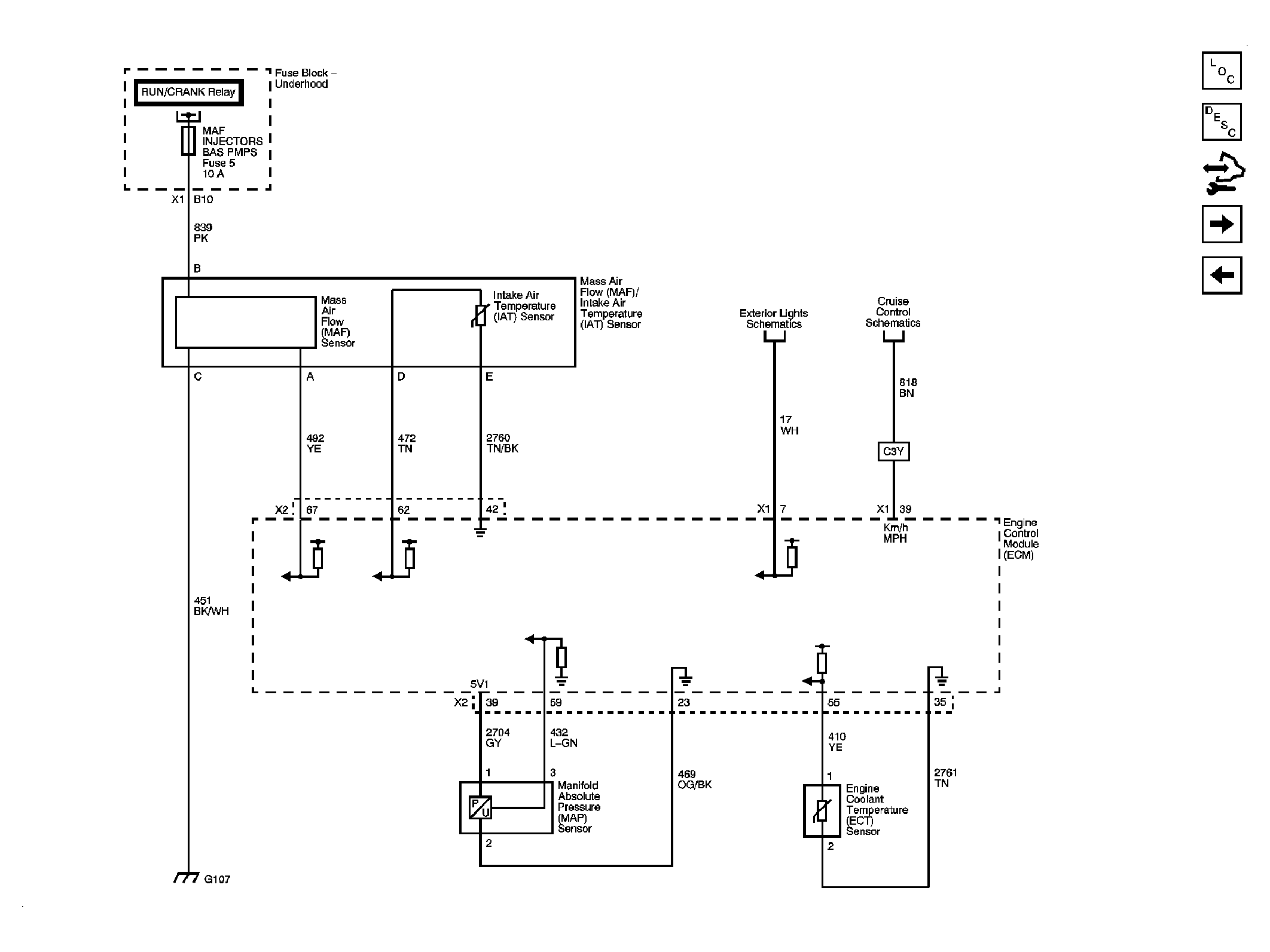

Fig 3: ECT, MAF/IAT and MAP Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

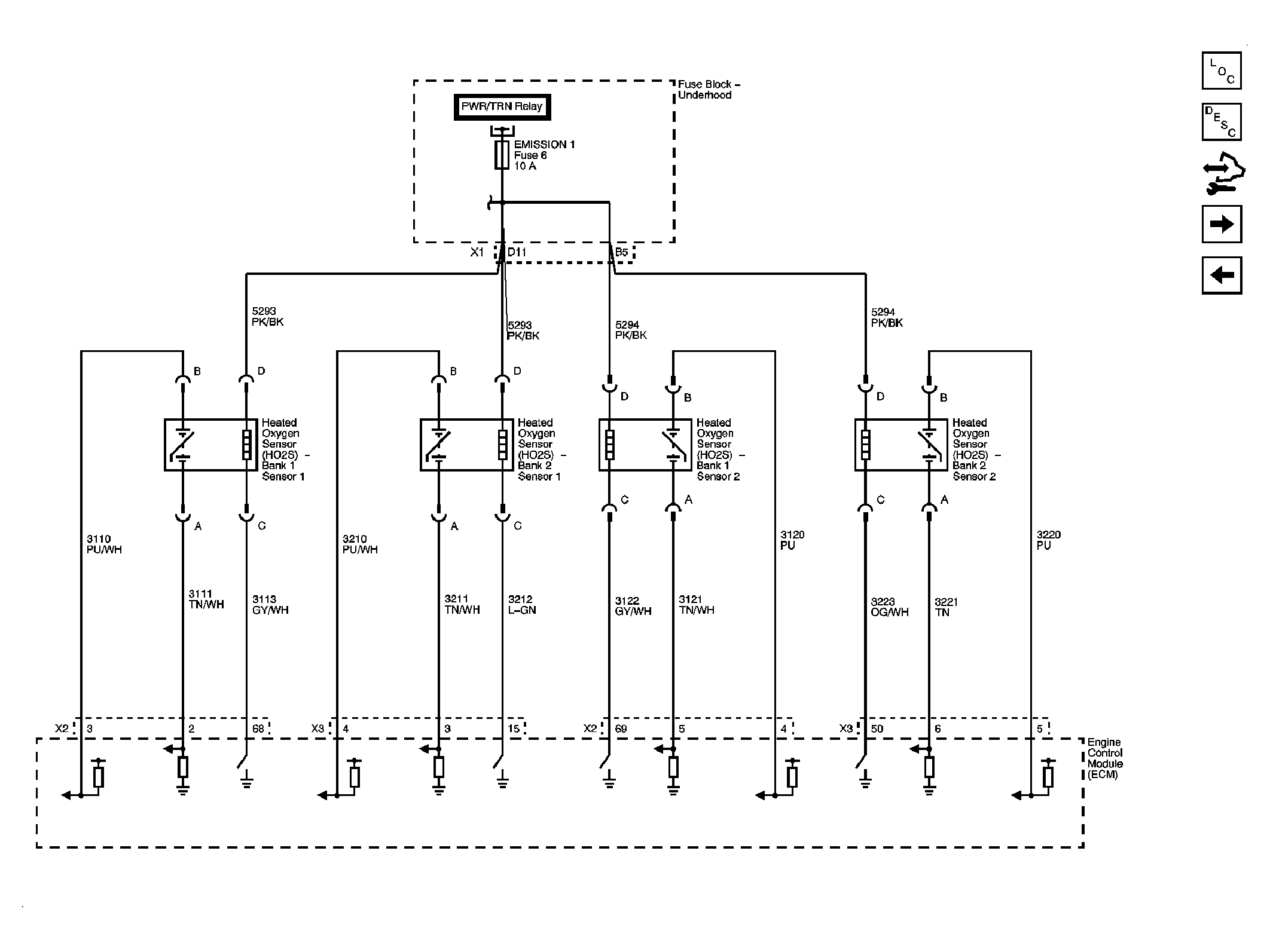

Fig 4: Heated Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

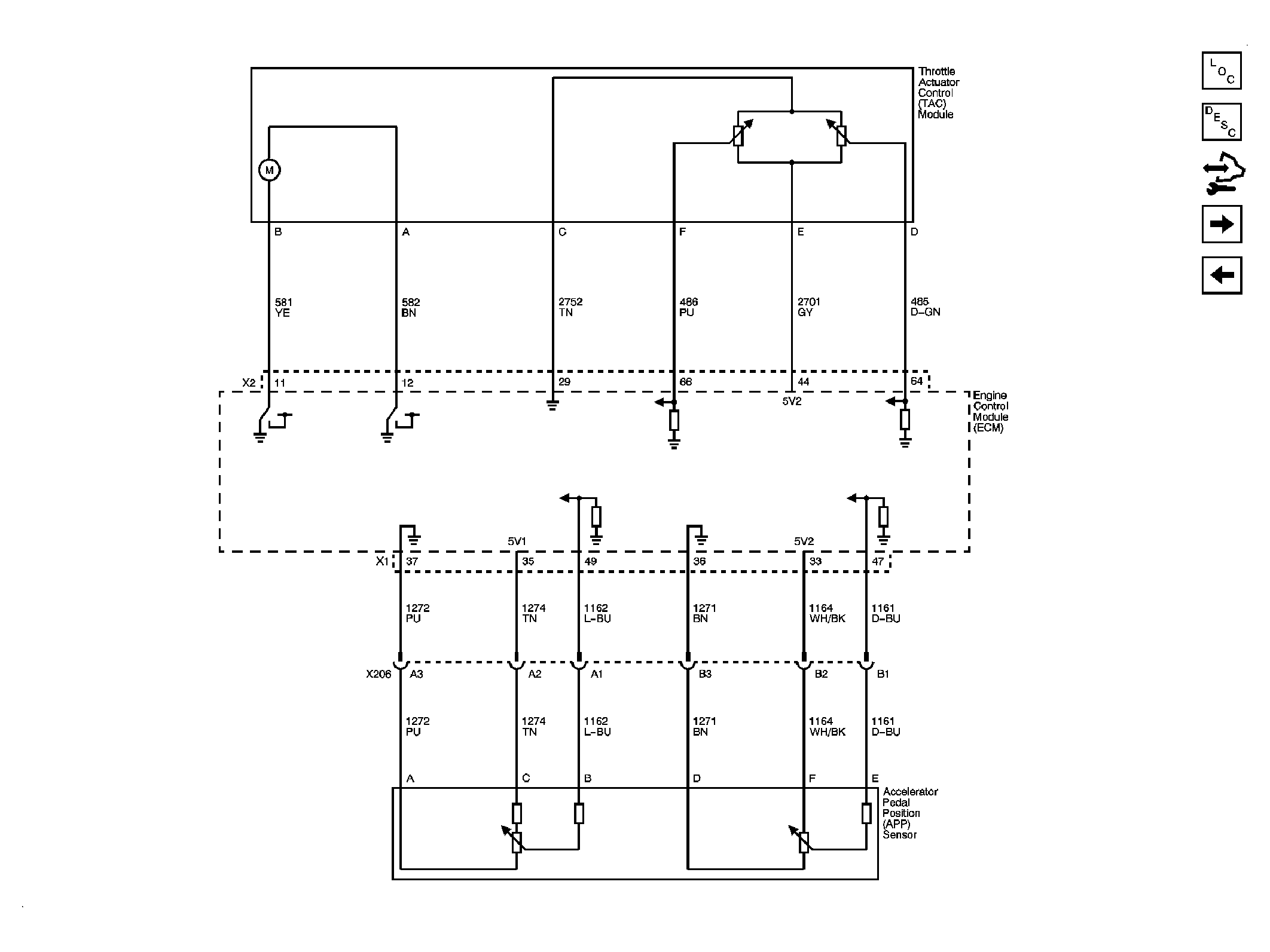

Fig 5: Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

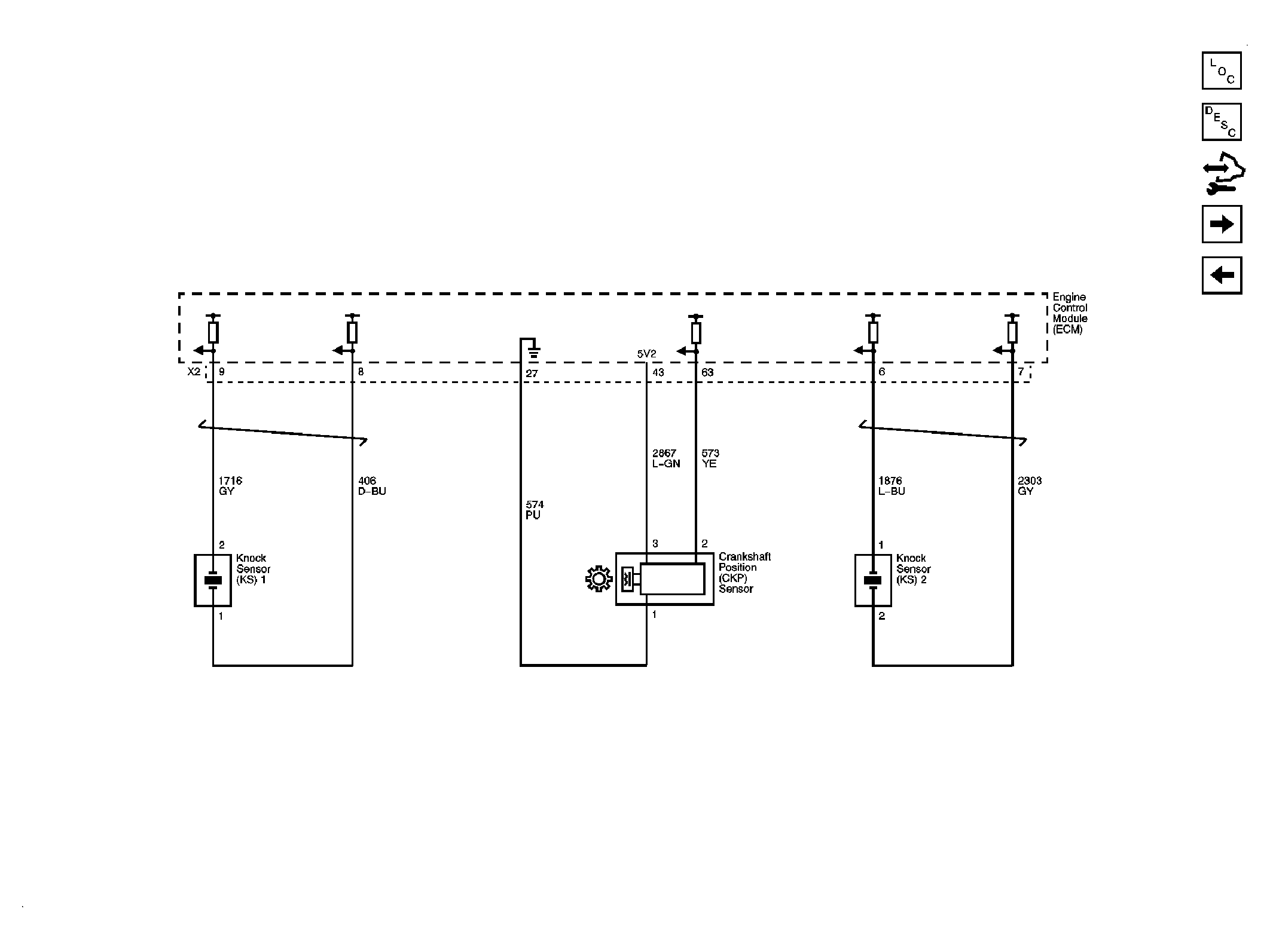

Fig 6: Ignition System Schematic

Courtesy of GENERAL MOTORS CORP.

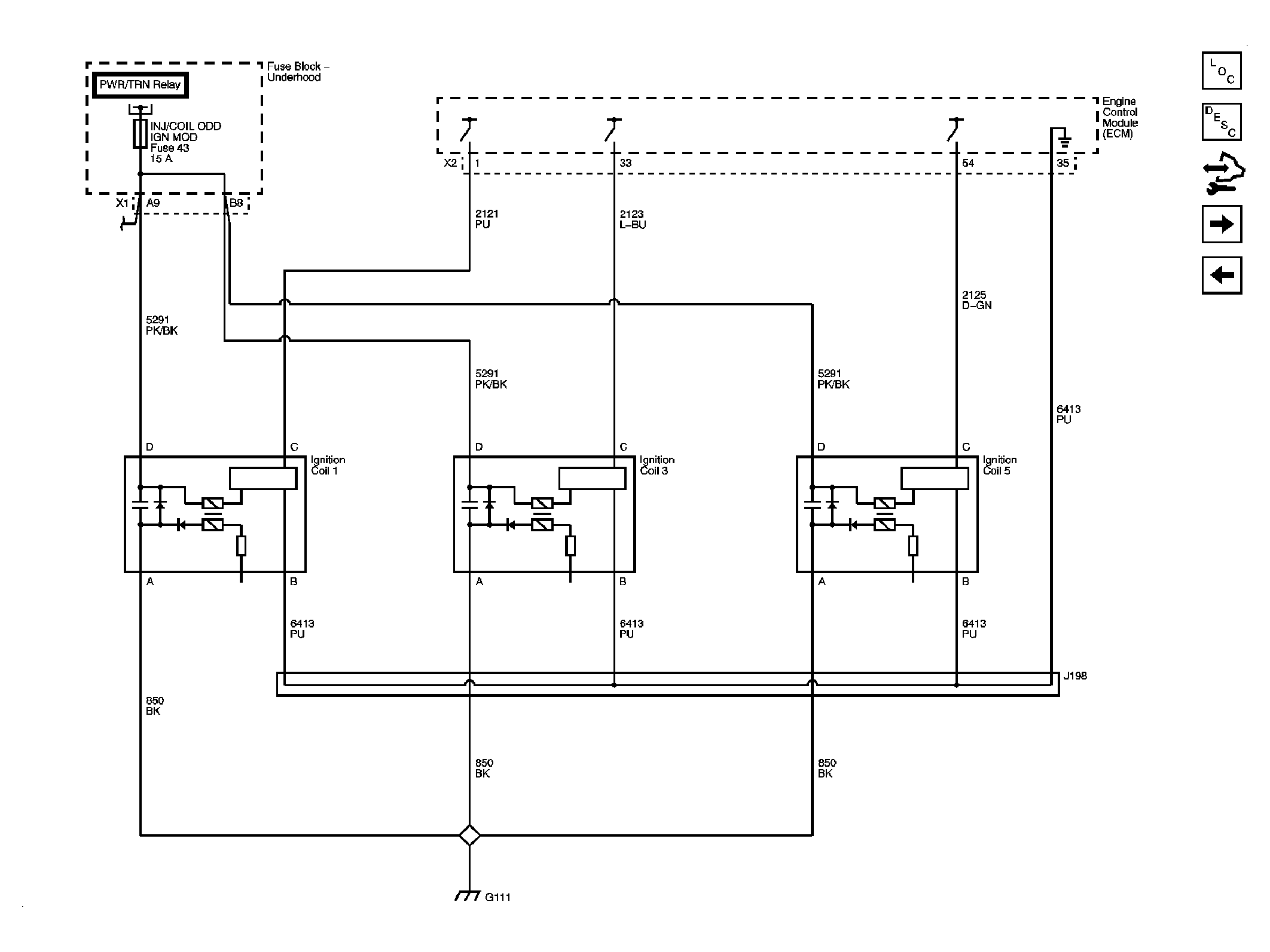

Fig 7: Bank 1 Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

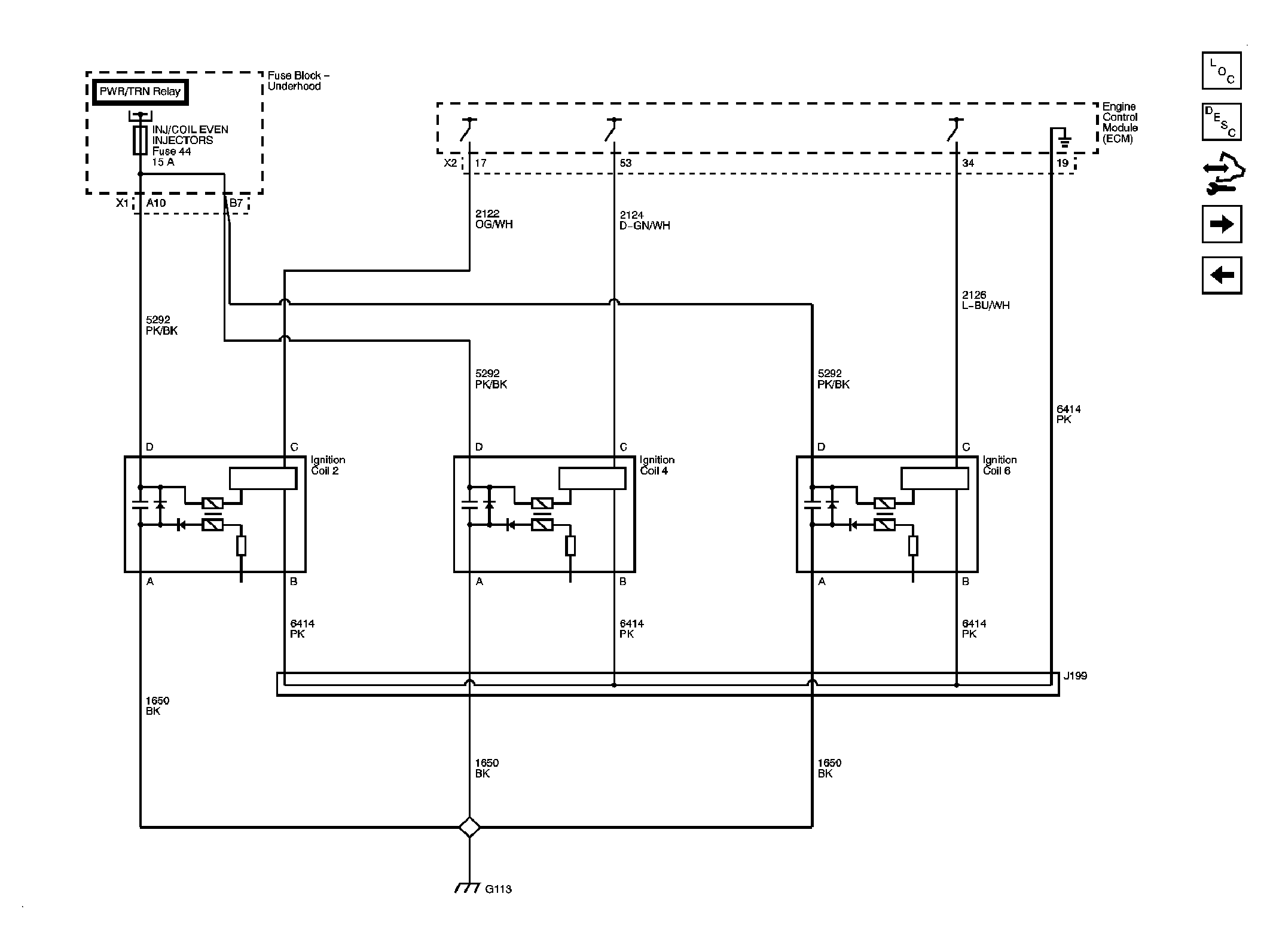

Fig 8: Bank 2 Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

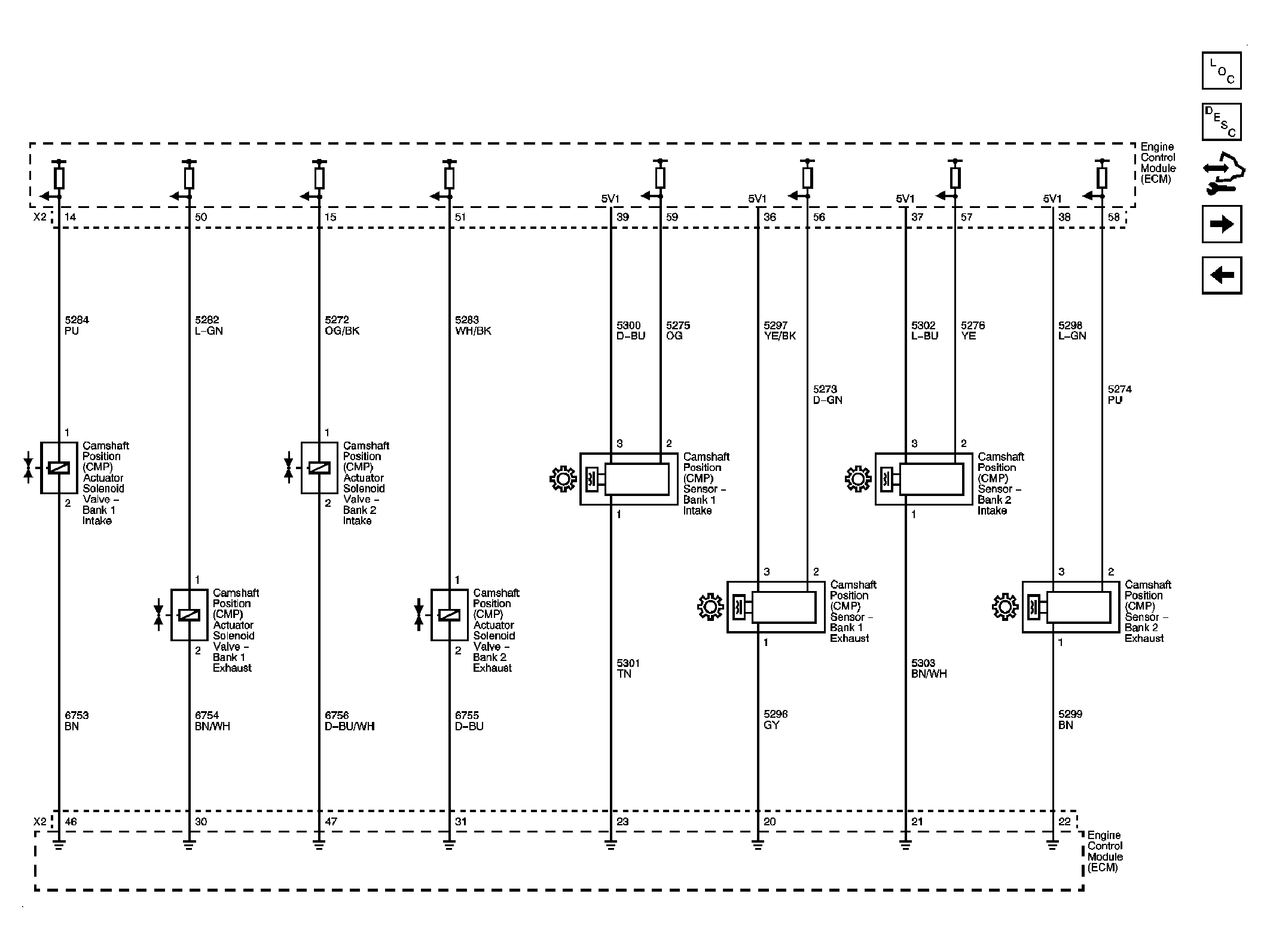

Fig 9: Camshaft Position (CMP) Sensors and Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.

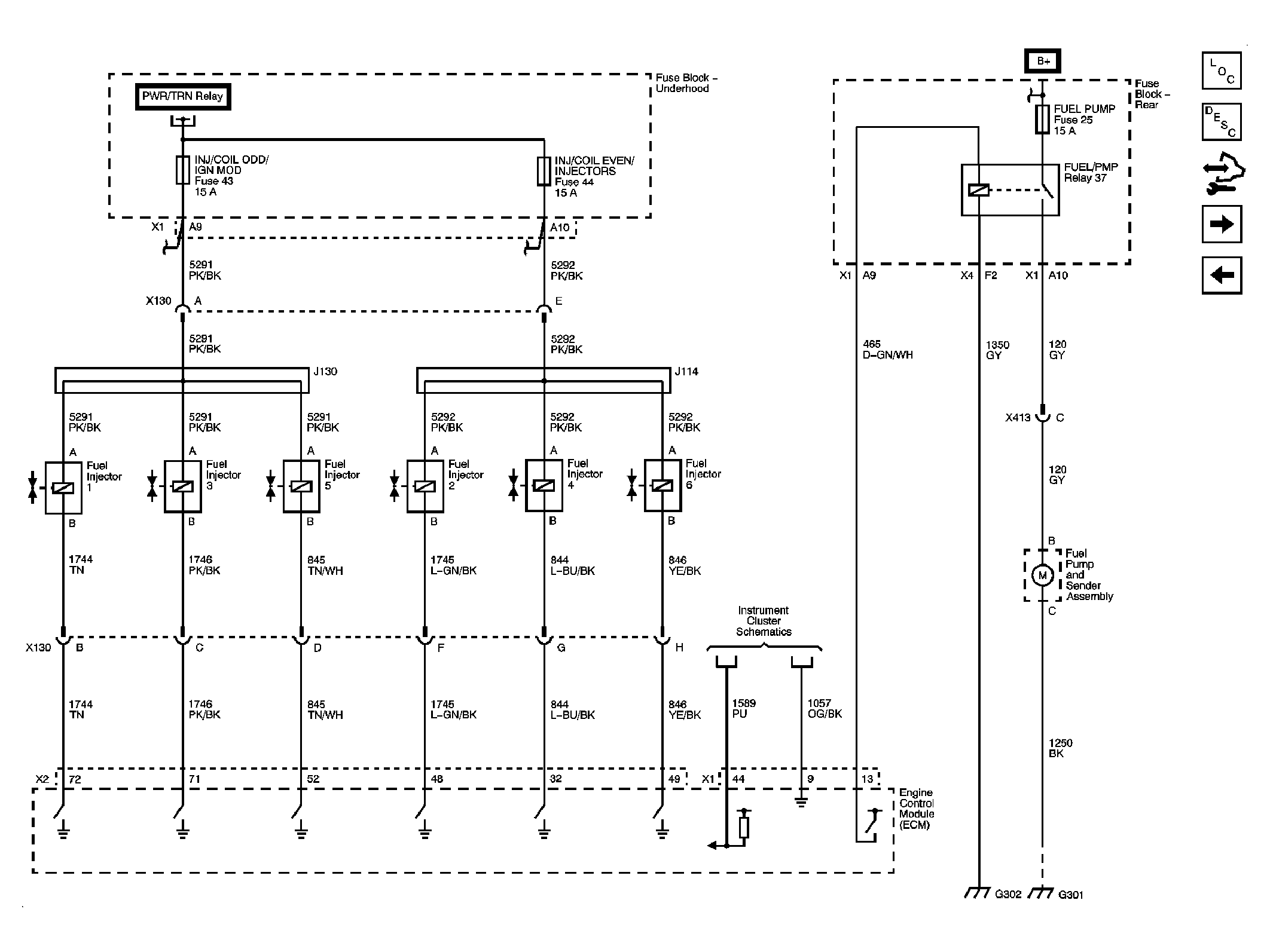

Fig 10: Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

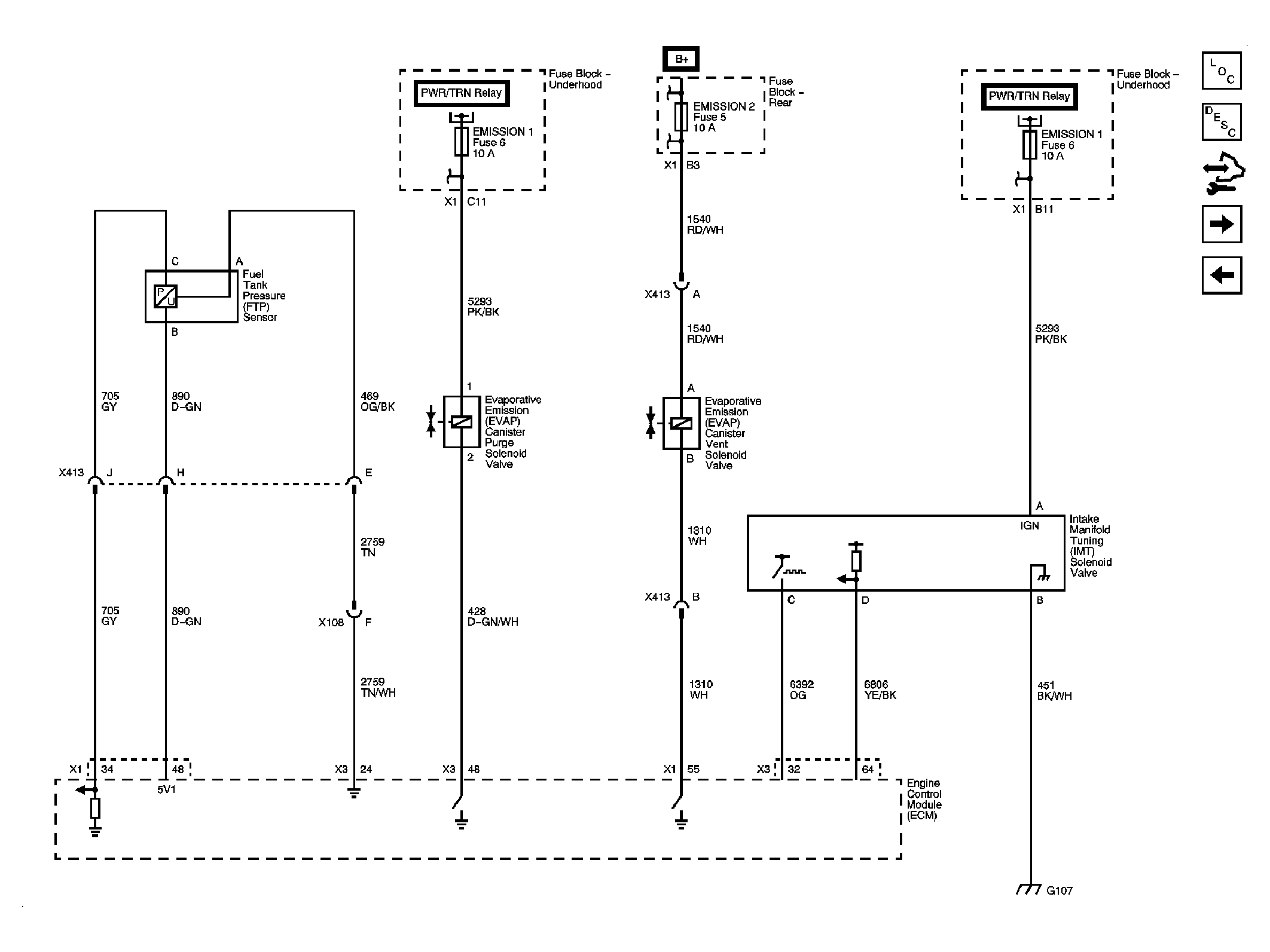

Fig 11: EVAP Controls and FTP Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

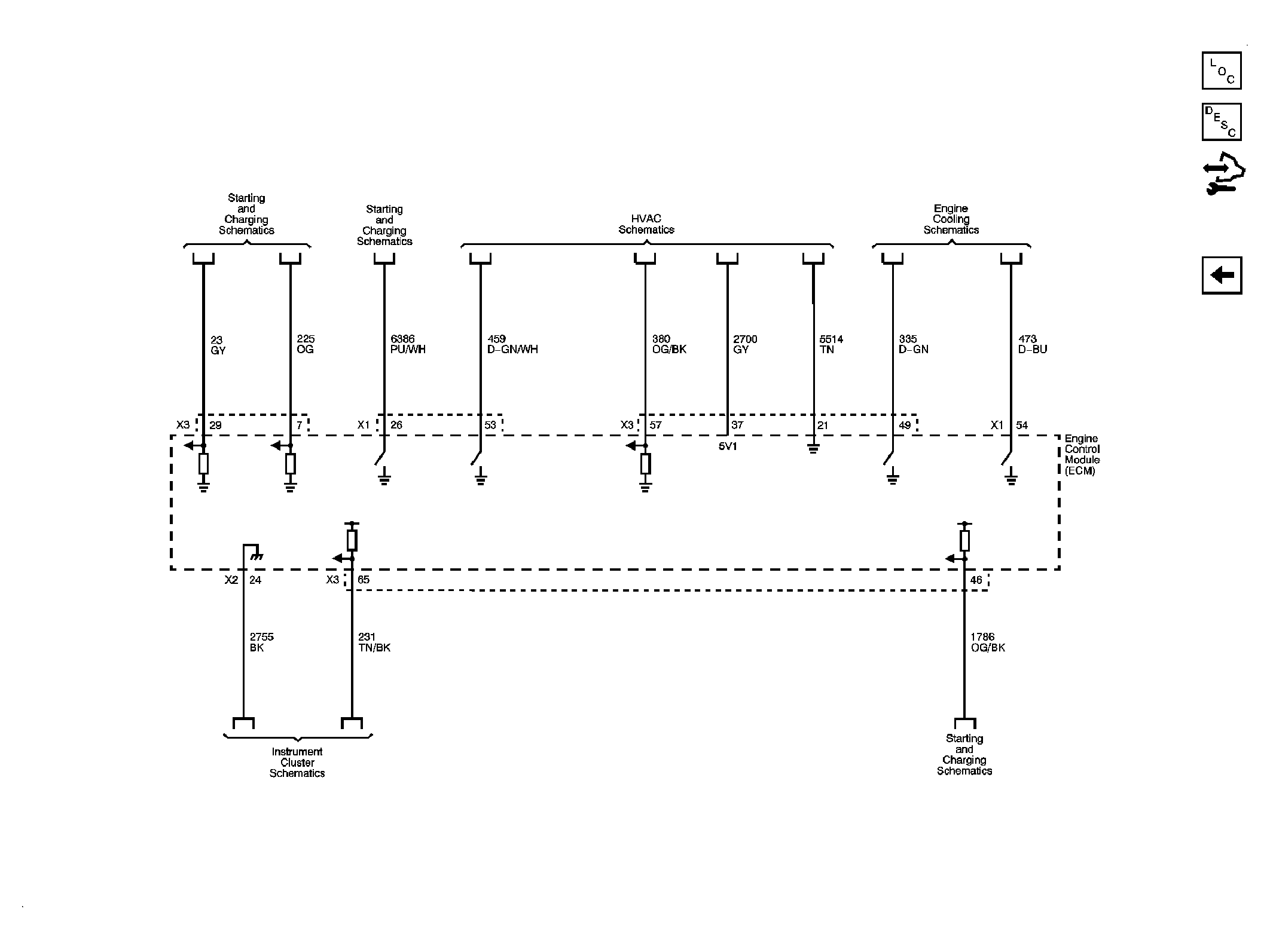

Fig 12: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
