Power Moding Schematics

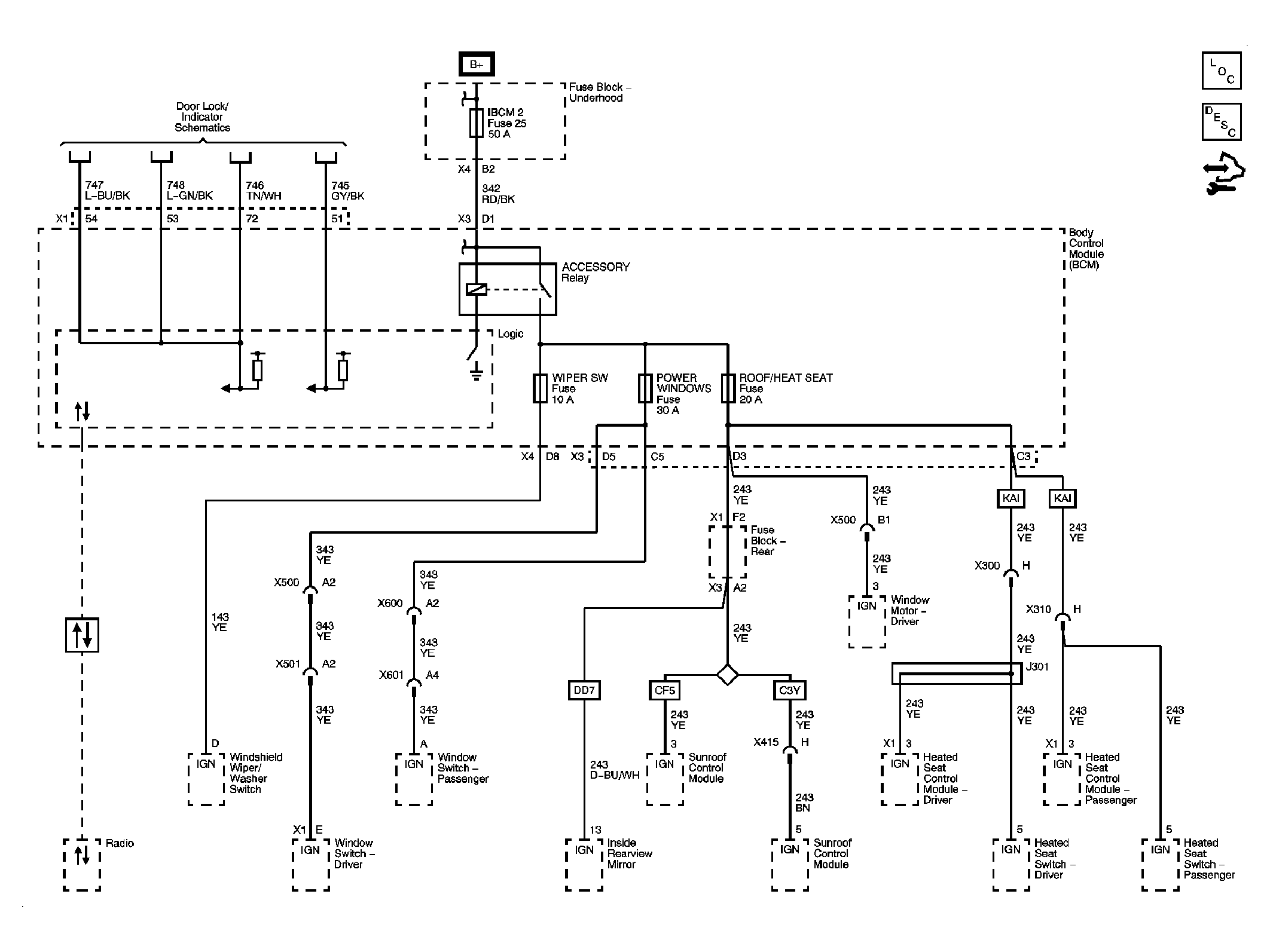

Fig 1: Retained Accessory Power (RAP) Schematic

GM1899475

Courtesy of GENERAL MOTORS CORP.
