Installation Procedure

    Fig 1: View Of Ignition Switch Bracket
    GM1207709Courtesy of GENERAL MOTORS CORP.
  1. Install the ignition and start switch bracket.
    2. NOTE: Refer to Fastener Notice .
  2. Install the ignition and start switch bracket bolts.

    Tighten:  Tighten the bolts to 5 N.m (44 lb in).

  3. Install the theft deterrent control module. Refer to Theft Deterrent Module Replacement .

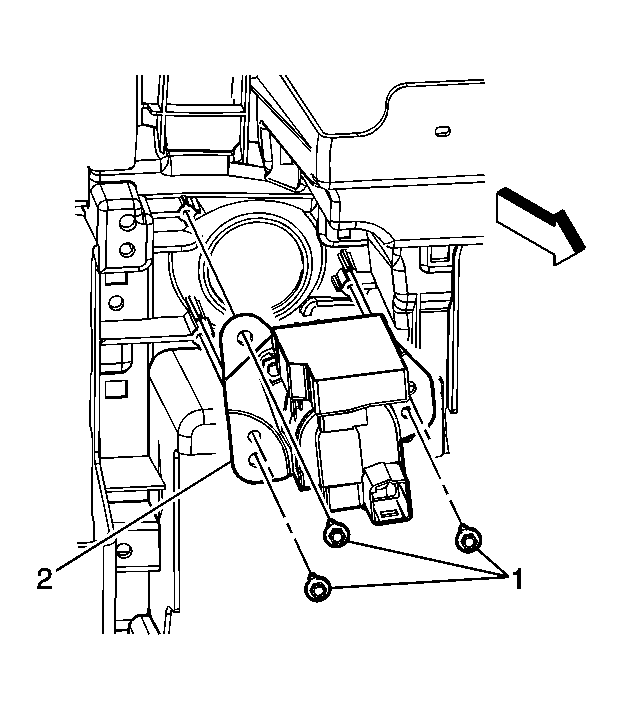

    4. Fig 2: View Of Ignition & Start Switch Bolts
    GM1791958Courtesy of GENERAL MOTORS CORP.
  4. Connect the ignition and start switch (2) to the I/P.
  5. Install the ignition and start switch bolts (1).

    Tighten:  Tighten the bolts to 2.5 N.m (22 lb in).

  6. Connect the park lock cable to the ignition and start switch. Refer to Park Lock Cable Replacement .
  7. Connect any electrical connectors.
  8. Install the instrument cluster. Refer to Instrument Cluster Replacement .
  9. Install the ignition switch lock cylinder. Refer to Ignition Switch Lock Cylinder Replacement .
