Windshield Washer Fluid Level Switch

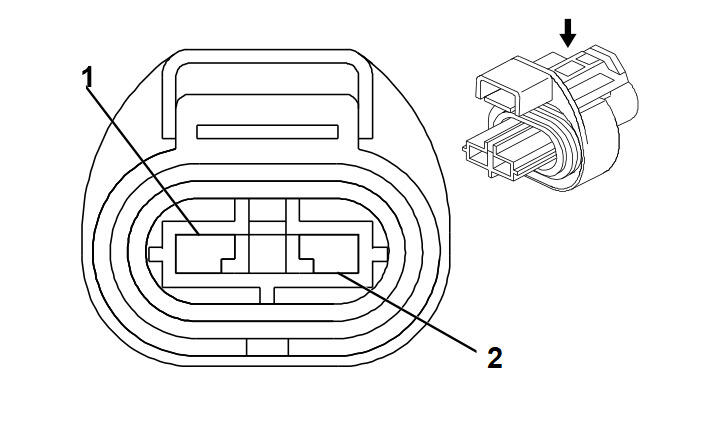

Fig 1: Windshield Washer Fluid Level Switch Connector End View
GM1898384Courtesy of GENERAL MOTORS CORP.
Windshield Washer Fluid Level Switch

Pin Wire Color Circuit No. Function
1 0.5 BN 1150 Ground
2 0.5 GN/WH 99 Windshield Washer Fluid Level Sensor Signal
Connector Part Information
  • OEM: 1452680-1
  • Service: See Catalog
  • Description: 2-Way F 1.2 Timer Series, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
