Window Motor - Driver

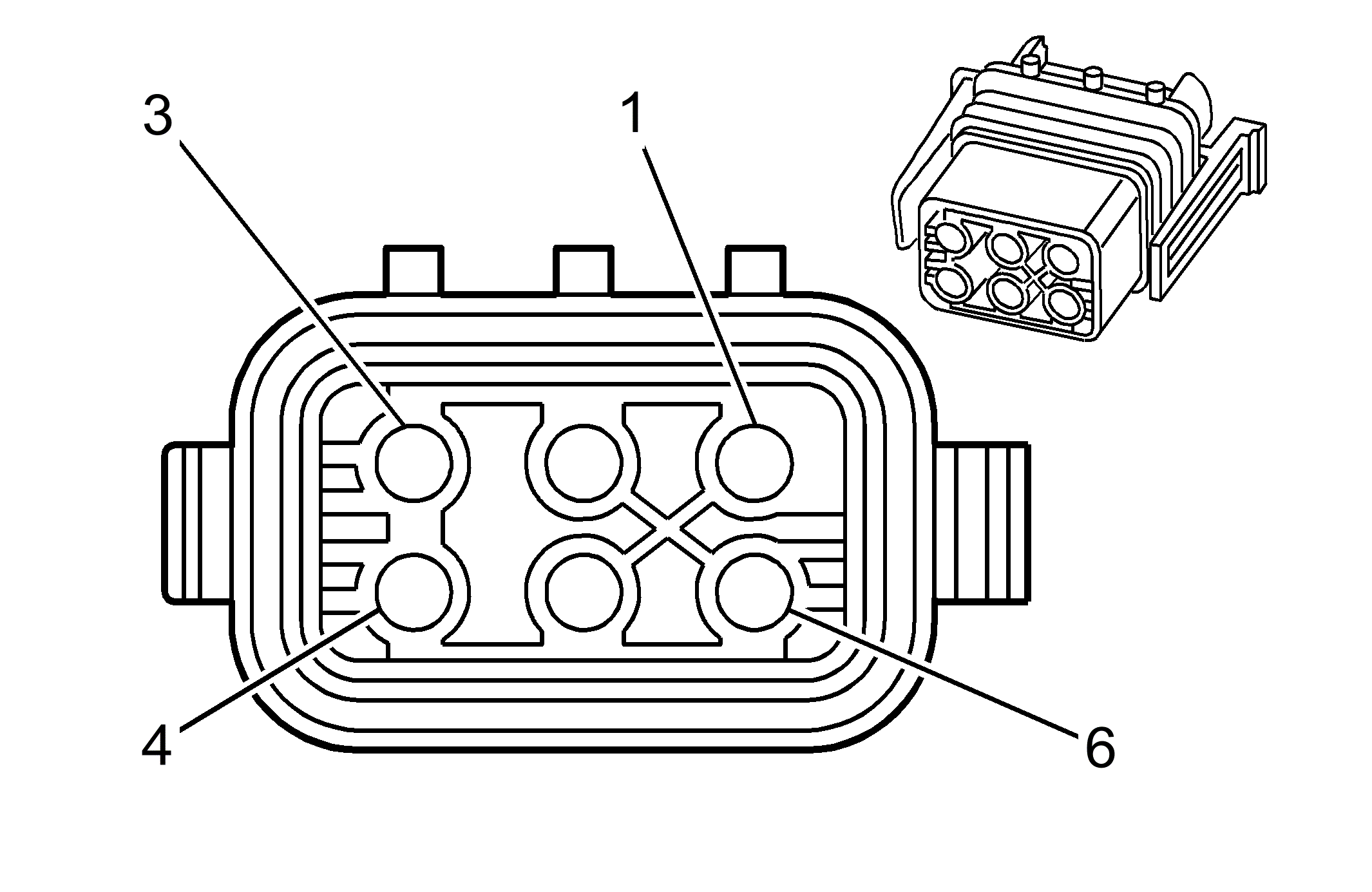

Fig 1: Window Motor - Driver Connector End View
GM2039653Courtesy of GENERAL MOTORS CORP.
Window Motor - Driver

Pin Wire Color Circuit No. Function
1 2.5 RD 2040 Battery Positive Voltage
2 0.5 WH/GN 1300 Power Window Master Switch Left Front Up Signal
3 0.5 GY 1136 Power Window Master Switch Left Front Down Signal
4 2.5 BN 1550 Ground
5 - - Not Used
6 0.5 BN/BK 5200 Power Window Comfort Close Signal
Connector Part Information
  • OEM: ID404743
  • Service: See Catalog
  • Description: 6-Way F (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
