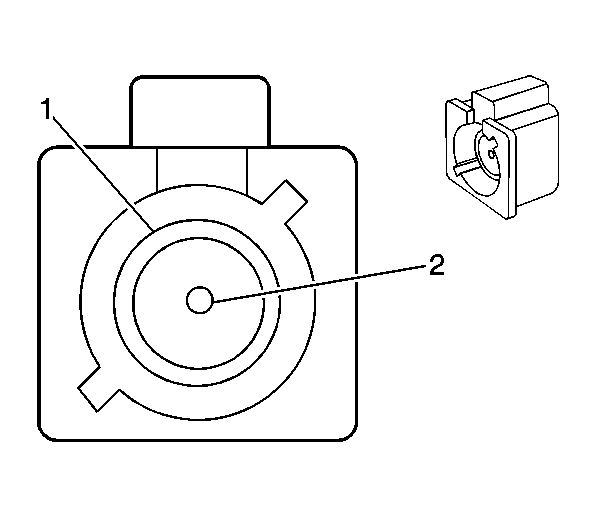

Vehicle Communications Interface Module (VCIM) - Left - X6
Courtesy of GENERAL MOTORS CORP. Vehicle Communications Interface Module (VCIM) - Left - X6
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.35 BK |
5175 |
Antenna Navigation Screen |
| 2 |
0.35 BK |
5174 |
Antenna Navigation Signal |
Connector Part Information
- OEM: See Catalog
- Service: See Catalog
- Description: 2-Way F (Metal)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
