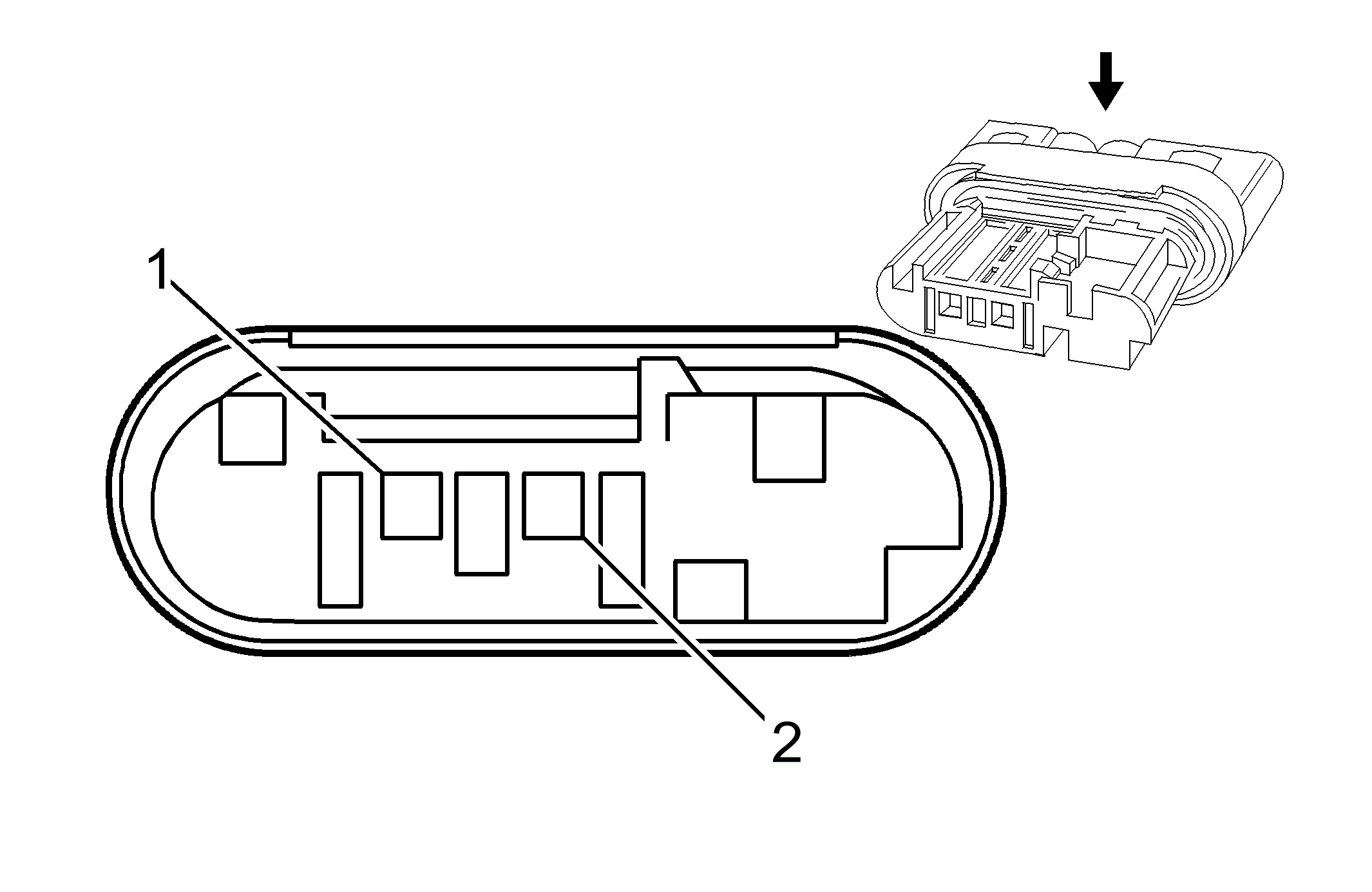

Inflatable Restraints Front End Sensor - Left
Courtesy of GENERAL MOTORS CORP. Inflatable Restraints Front End Sensor - Left
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.5 BK/WH |
6168 |
Middle Front Impact Sensing Module Supply Voltage |
| 2 |
0.5 OG/BK |
6169 |
Middle Front Impact Sensing Module Signal |
Connector Part Information
- OEM: 1241905-4
- Service: See Catalog
- Description: 2-Way F 64 MQS Series, Sealed (BK/BG)
|
Terminal Part Information
- Terminal/Tray: Service with Pigtail
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
