Inflatable Restraint Roof Rail Module - Left

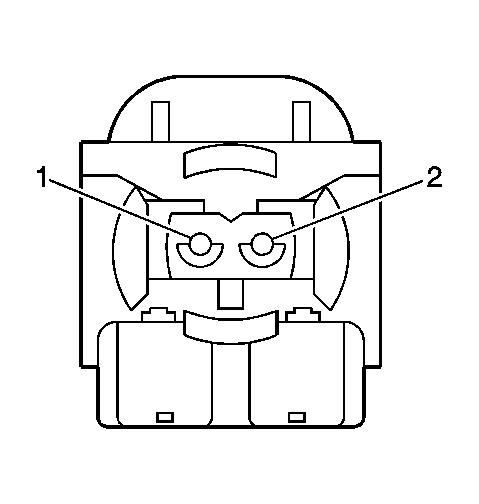

Fig 1: Inflatable Restraint Roof Rail Module - Left Connector End View
GM2100411Courtesy of GENERAL MOTORS CORP.

Connector Part Information

Terminal Part Information

Inflatable Restraint Roof Rail Module - Left

Pin Wire Color Circuit No. Function
1 0.5 GN 5020 Left Front Head Curtain Module Low Control
2 0.5 OG/GN 5019 Left Front Head Curtain Module High Control
