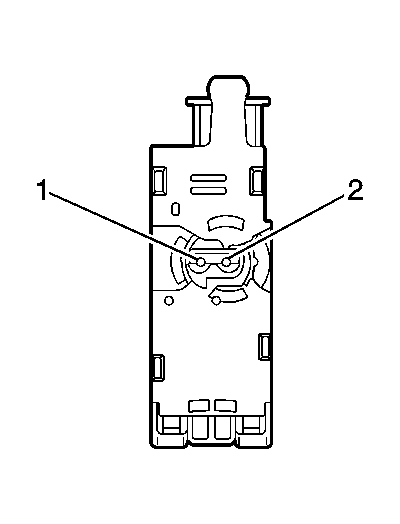

Inflatable Restraint I/P Module - X1
Courtesy of GENERAL MOTORS CORP. Inflatable Restraint I/P Module - X1
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.5 OG/WH |
3024 |
Passenger IP Module Stage 1 Low Control |
| 2 |
0.5 WH |
3025 |
Passenger IP Module Stage 1 High Control |
Connector Part Information
- OEM: 6 120 27 00
- Service: See Catalog
- Description: 2-Way F (PU with OG cover)
|
Terminal Part Information
- Terminal/Tray: Service with Pigtail
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
