Generator - X2

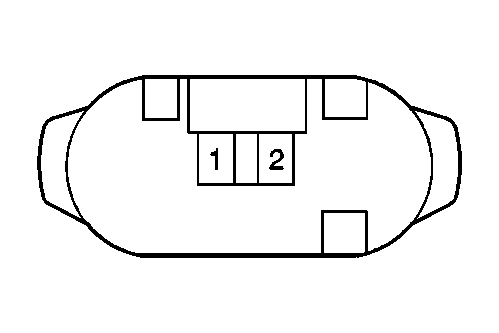

Fig 1: Generator - X2 Connector End View
GM617516Courtesy of GENERAL MOTORS CORP.
Generator - X2

Pin Wire Color Circuit No. Function
1 0.75 BU/WH 225 Generator Turn On Signal
2 - - Not Used
Connector Part Information
  • OEM: ZFW 2-141
  • Service: See Catalog
  • Description: 2-Way F (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
