Automatic Transmission Shift Lock Control Solenoid

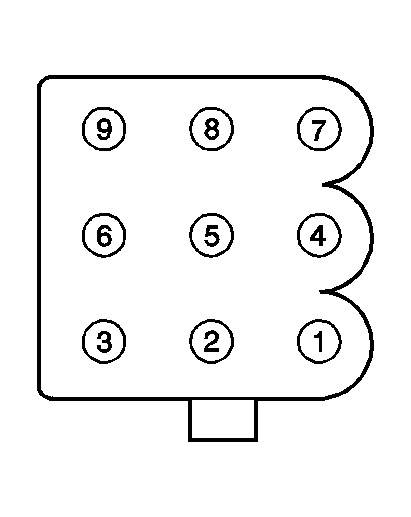

Courtesy of GENERAL MOTORS CORP. Automatic Transmission Shift Lock Control Solenoid
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.5 GN |
1078 |
Ignition Key/Shifter Interlock Solenoid Lock Signal |
| 2-5 |
- |
- |
Not Used |
| 6 |
0.5 BN |
2150 |
Ground |
| 7 |
- |
- |
Not Used |
| 8 |
0.5 BN/GY |
17 |
Stop Lamp Switch Signal |
| 9 |
- |
- |
Not Used |
Connector Part Information
- OEM: 928523-1
- Service: See Catalog
- Description: 9-Way F (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
