Removal Procedure

  1. Open the hood.
    2. Fig 1: View Of Engine Wiring Trough And DIS-ignition Module Wiring Harness Plug
    GM1937023Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine wiring trough (1) from the cylinder head.

    Position the wiring trough to one side.

  3. Disconnect the DIS-ignition module wiring harness plug (2).

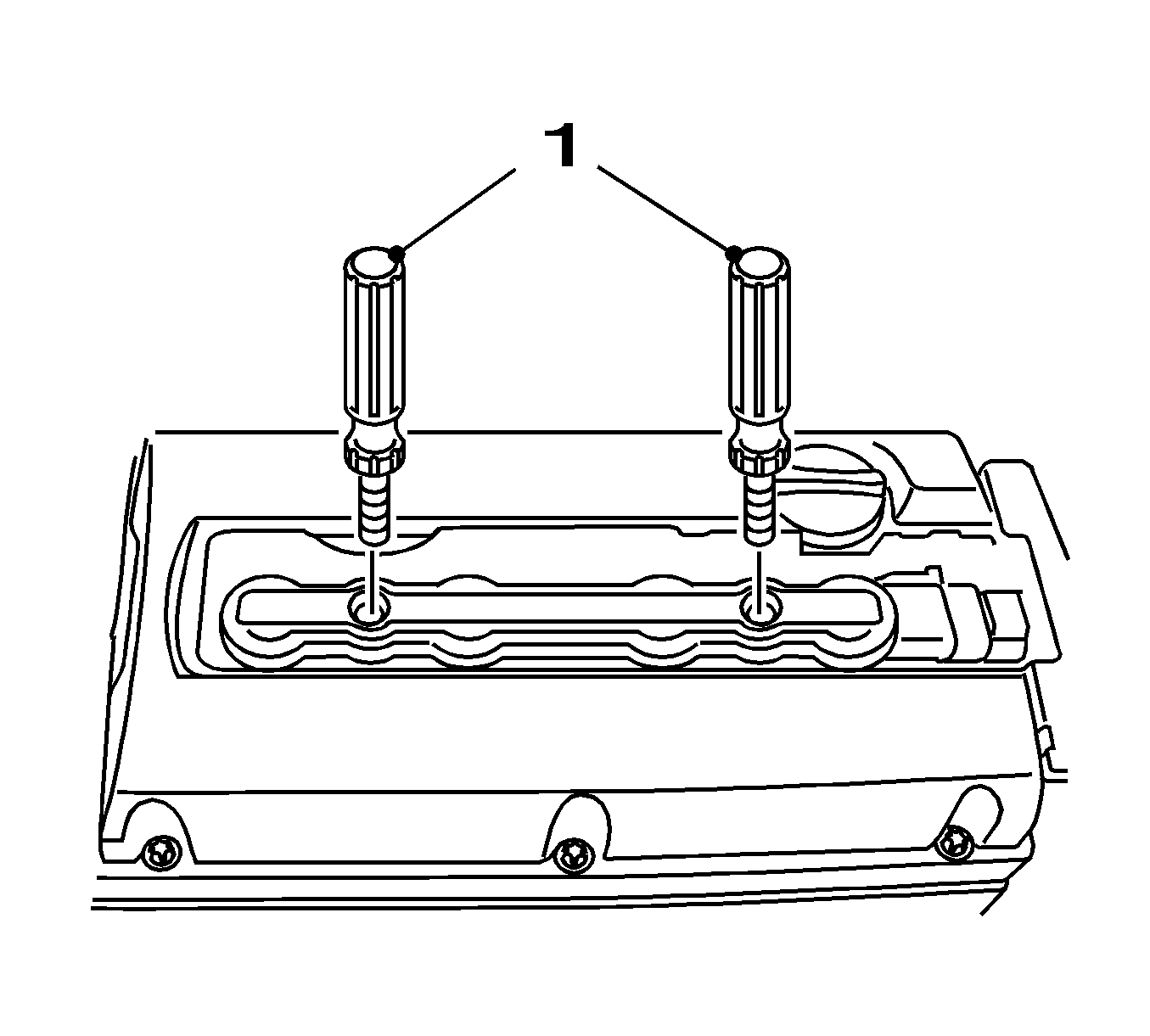

    4. Fig 2: View Of KM-6009
    GM1936914Courtesy of GENERAL MOTORS CORP.
  4. Remove the DIS-ignition module.
      IMPORTANT: Note the arrow on the cover.
    • Remove the cover of the DIS-ignition module in the direction of the arrow.
    • Remove the 2 bolts.
    • Remove from the spark plugs using KM-6009  (1). See Special Tools .
